OZEN OZ-18CF2HDM Agile 18 Tripod System: Guide

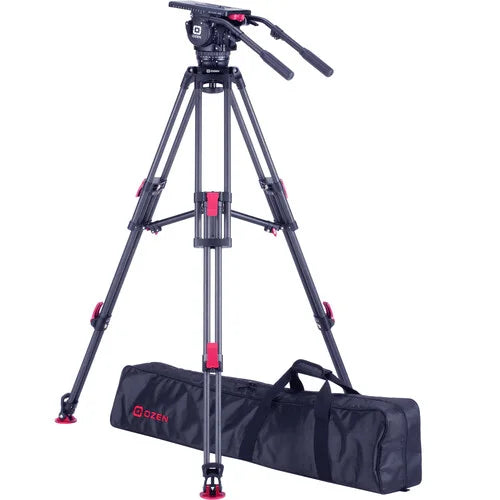

For professional deployment, the OZEN OZ-18CF2HDM AGILE 18M 100mm Fluid Head with Two-Stage Carbon Fiber Legs, Mid-Level Spreader & Case includes a broad tripod system appropriate for digital cine cameras, ENG, EFP, and studio uses. Its robust head maintains precision and responsiveness, featuring nine levels of pan and tilt adjustment, including a zero setting, along with 16 counterbalance settings for accurate camera positioning. The carbon fiber legs, equipped with a 100mm bowl for quick leveling, boast an impressive weight capacity of up to 99 lb., preserving ample support for the included head and its highest load capacity without pushing the legs to their limits.
This head incorporates a true quick release plate and a sliding camera platform for seamless balance adjustments, while the legs feature dual locks per leg and a wide height range. The mid-level spreader presents several advantages over ground spreaders, and the dual spike feet are particularly useful for enhancing grip on soft terrain. For versatility, removable rubber feet snap over the foot spikes, allowing for stable operation on hard surfaces and delicate locations.

OZEN 18M E-Z LOAD MAX Fluid Head (48.4 lb Payload): Guide

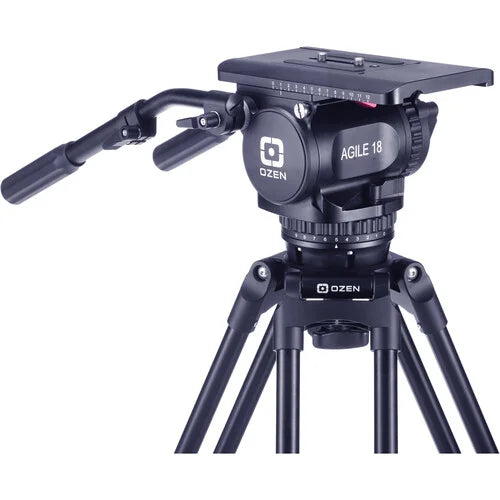

The OZEN OZ-18CF2HDM 18M E-Z LOAD MAX Fluid Head is a heavy-duty option offering familiar pan, tilt, and counterbalance controls tailored to fit your operational preferences. Developed to accommodate cameras and rigs weighing up to 48.4 lb, its 100mm ball base maintains rapid leveling and delivers a generous balancing platform, ideal for longer lenses. The head provides a quick release plate with two 3/8"-16 threaded camera tie-down screws, while the camera platform enables 2.36" of travel for accurate camera balancing.
Featuring nine steps of independent pan and tilt drag, this head enables meticulous adjustment to match your shooting requirements. Each axis incorporates a zero setting for unrestricted movement, enabling creative whip pans and tilts. Individual pan/tilt locks deliver the flexibility to secure one axis while working the other. With 16 counterbalance adjustments, you can additional fine-tune the head to suit your specific shot and working style. Additionally, a built-in illuminated bubble level aids in quickly leveling the head in dimly lit conditions. Removable pan handle rosettes on both sides of the head enable simultaneous use of the included telescoping pan handles for enhanced control.

Ozen OZ-18CF2HDM Counterbalance: Guide

Featuring a 16-step counterbalance mechanism, the Ozen OZ-18CF2HDM supplies versatile adjustment options appropriate for a range of cameras and rigs, spanning weights from 4.4 to 48.4 lb. This system is meticulously crafted to offset the head's weight, supporting that the fluid head maintains the desired tilt position without requiring manual support. Consequently, operators can execute tilt movements smoothly without encountering resistance from the counterbalance.

Tilt Drag and Pan

Offering nine steps of adjustment alongside a zero setting, the head facilitates seamless movement control, accommodating both fast-paced and slow-motion shots with precision. The customizable dampening settings permit operators to fine-tune their preferences for each shot, while the stepped configurations maintain consistent and reproducible drag selections.

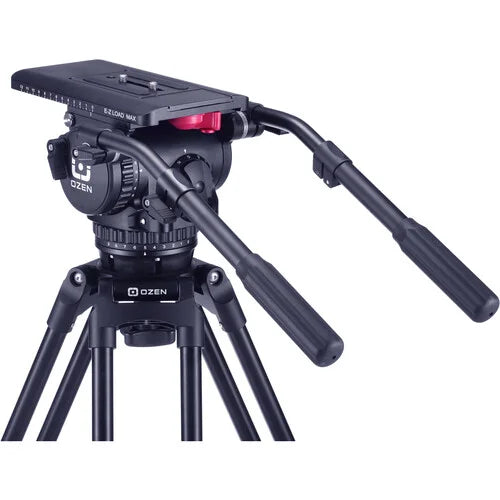

Balance Adjustment and OZ-18CF2HDM QR Plate

Equipped with the E-Z LOAD MAX QR plate, this rig accommodates heavier camera setups and facilitates swift mounting and dismounting on the camera platform. Although the QR plate lacks sliding balance adjustment, the camera platform delivers 2.36" of back-and-forth adjustment function, facilitating optimal camera balance on the head. For larger cameras, the customary use of an optional baseplate or VCT system additional enhances balance function.

100mm Leveling Ball: Guide

Streamlining the leveling process, the 100mm leveling ball permits quick and effortless adjustment of the head on tripod legs or other platforms. The generously sized platform includes ample space for fine-tuning the balance of camera and lens setups, maintaining optimal performance and preventing strain on the head during operation.

Rosettes: Guide

Featuring removable rosettes on each side, the fluid head facilitates attachment of the included pan handles, enabling comfortable two-handed control. In the event of damage or wear, these rosettes can be easily replaced with new ones, supporting prolonged usability and operation of the rig.

Camera Fastening Mount Screws: Guide

Included with the head are a pair of camera fastening screws, one of each 1/4"-20 and 3/8"-16, neatly stored on the sides of the head. Additionally, the E-Z LOAD MAX QR plate incorporates two captured fastening screws, both 3/8"-16.

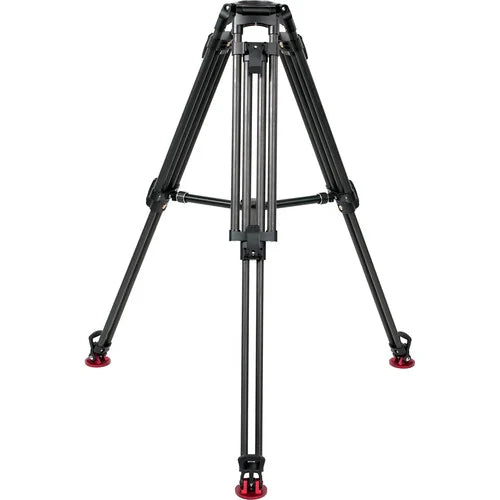

OZEN OZ-18CF2HDM 100CF2HD 100mm Dual-Stage, Heavy-Duty Carbon Fiber Tripod: Guide

Deliver your camera with a stable foundation through the 100CF2HD 100mm Dual-Stage, Heavy-Duty Carbon Fiber Tripod from OZEN. Engineered for demanding uses with heavy payloads and requiring high fluid drag, this dual-stage tripod can support up to 99 pounds and provides configurable heights ranging from 20 to 60 inches. The tripod leg tubes, boasting a diameter of 22mm, are constructed from carbon fiber and securely pinned to their mounts, helping ensure superior rigidity without the use of adhesive. Convenient flip brake levers permit swift leg locking, facilitating quick setup and breakdown. Moreover, the 100CF2HD incorporates a Contender heavy-duty mid-level spreader and incorporates deep-tread rubber feet for enhanced grip on smooth surfaces.

• Designed for compatibility with separately available 100mm fluid heads
• Carbon fiber leg tubes offer a balance of lightweight construction and robust stiffness, providing resistance to minor impacts and minimal flex under high fluid drag settings
• Secure pinning of carbon fiber tubes ensures durability and stability, avoiding reliance on adhesive bonding
• Multiple positions for the spreader, including flat and angled configurations
• Impressive payload capacity of up to 99 pounds
• Distinctive red flip brake levers for efficient deployment and retraction
• Brake adjustment mechanism for enhanced control and stability during operation
