SKU: TH-Z
Libec TH-Z Tripod System with Mid-Level Spreader (75 mm)
Libec TH-Z Tripod System with Mid-Level Spreader (75 mm)
In stock
View full details
WhatsApp us for inquiries

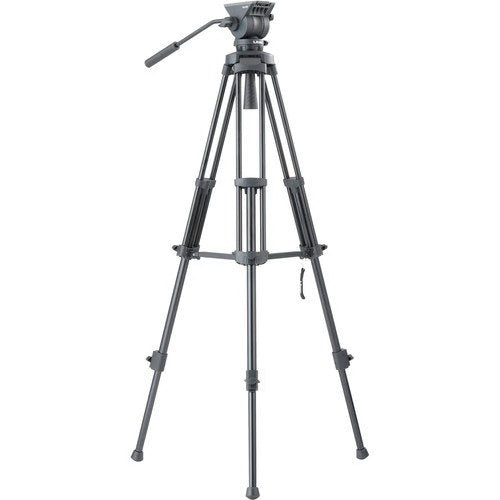

Considering the complete platform, the Libec TH-Z Tripod System contains a 75millimetres half ball/flat base fluid assembly and aluminum 2-stage support with a built-in spreader. The unit further incorporates a zipped soft carrying case. The head accommodates up to 11 lb and provides fixed counterbalance and drag. It can be mounted directly to the support or mounted straight on sliders and other compatibility gear through the flat starting, which has a 3/8"-16 installation thread on the bottom. The assembly additionally has a snap-in unit plate system that enables easier attachment of your camera. A pan bar is supplied and an optional second one is supported. The height selection for the assembly and support combined is 28 to 63.5".

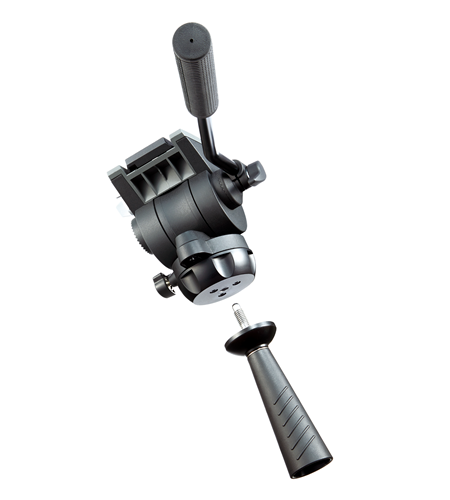

The Libec TH-Z H Smooth Head is a space-efficient dual-function support head with an 11 lb load and fixed counterbalance and drag. It contains a native 75millimetres half ball and has a flat starting with a 3/8"-16 installation thread on the bottom of the half ball. It's straight compatible with 75millimetres bowl tripods but can additionally be mounted straight on sliders and other handles via the flat base. A tie-down is supplied for securing it to tripods.

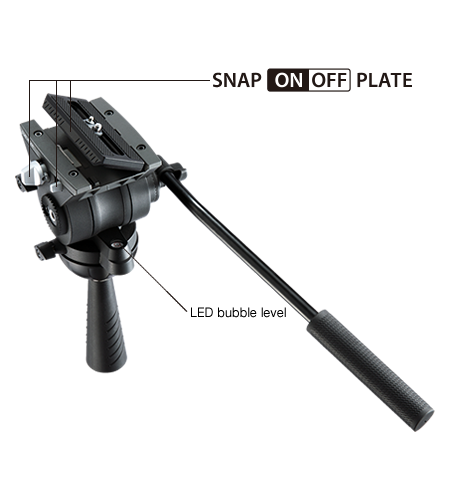

The assembly has a snap-in unit plate setup that lets you attach the supplied unit plate from above rather than slide it in from the rear. The plate has a moving range of 1.2" after secured. It ships with a 1/4"-20 installation screw and an anti-twist footage pin beside it. A long rosette-mount pan bar is supplied and an optional second one is additionally supported.
The Libec TH-Z T is a 2-stage aluminum support with a 75millimetres bowl starting and built-in mid-level spreader. Support extends to up to 55 lb and is configurable from a lowest height of 23" to a highest height of 58.5". The built-in mid-level spreader is configurable telescopically.
Store, transport, and safeguard your TH-Z or TH-X support with this black RC-10 Carrying Case from Libec. The case integrates dual transport straps and an exterior zip pocket for components.
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via setup integrator, resellers & international visitors.contact us
Follow us
The Libec TH-Z H Smooth Head is a space-efficient dual-function support head with an 11 lb load and fixed counterbalance and drag. It contains a native 75millimetres half ball and has a flat starting with a 3/8"-16 installation thread on the bottom of the half ball. It's straight compatible with 75millimetres bowl tripods but can additionally be mounted straight on sliders and other handles via the flat base. A tie-down is supplied for securing it to tripods.
The assembly has a snap-in unit plate setup that lets you attach the supplied unit plate from above rather than slide it in from the rear. The plate has a moving range of 1.2" after secured. It ships with a 1/4"-20 installation screw and an anti-twist footage pin beside it. A long rosette-mount pan bar is supplied and an optional second one is additionally supported.
Principal Features
- 11 lb payload
- 75mm half ball with a flat base and 3/8"-16 mounting thread
- Snap-in camera plate system
- 1/4"-20 mounting screw with a video pin
- Long pan bar (an optional second one is supported)
- Fixed counterbalance and drag
- Illuminated bubble level
Libec TH-Z T Aluminum Support with Mid-Level Spreader (75millimetres Bowl)
The Libec TH-Z T is a 2-stage aluminum support with a 75millimetres bowl starting and built-in mid-level spreader. Support extends to up to 55 lb and is configurable from a lowest height of 23" to a highest height of 58.5". The built-in mid-level spreader is configurable telescopically.
Libec RC-10 Support Carrying Case (Black)
Store, transport, and safeguard your TH-Z or TH-X support with this black RC-10 Carrying Case from Libec. The case integrates dual transport straps and an exterior zip pocket for components.
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via setup integrator, resellers & international visitors.contact us
Follow us
| Weight | 5.5 kg |
|---|---|
| Dimensions | 22 × 83 × 21 cm |
| Payload | 5kg |
| Counterbalance | Fixed |
| Drag Mode | Fixed |
| Tilt Angle | +90° / -80° |
| Temperture range | -20C° / +60C° |
| Bubble level | Illuminated |
| Camera Plate | Sliding plate Compatible with Manfrotto and Sachtler heads |
| Sliding Range | +/- 30mm |
| Plate attachment | 1/4'' screw with video pin |
| Spare screws | None |
| Weight | 3.5kg |
| Height | 71.5 to 161.5cm |
| Ball Diameter | 75 mm |
| Section | 2-stage |
Key Features
- Compact Dual-Function Fluid Tripod Head
- 75mm Half Ball & Flat Base with 3/8"-16
- Aluminum Tripod with Built-In Spreader
- Zippered Soft Carry Case
- 5 kg Payload
- 71.5 to 161.5 cm Height Range
- Direct Mounting on Sliders via Flat Base
- Snap-In Camera Plate System
- Fixed Counterbalance and Drag
- Includes Pan Bar (2nd One Supported)
