Libec TH-Z S8 Fluid Head, Tripod,Slider Kit

Libec TH-Z S8 Fluid Head, Tripod,Slider Kit: Guide

The Libec TH-Z S8 Kit is a highly adaptable system built around a smooth head that can be mounted straight on the 75mm support bowl or mounted straight to the slider.
This is thanks to the head's dual-function configuration consisting of a half ball with a flat starting.
The slider additionally has a 75mm half ball and can be mounted straight on the support as well.
The fluid head allows up to 11 lb and integrates fixed counterbalance and drag and a practical snap-in body plate system.
The slider delivers a 28" journeys distance, and the tripod provides a height selection of 23 to 58.5".

Libec TH-Z H Fluid Head: Guide

The Libec TH-Z H Smooth Head is a space-efficient dual-function support head with an 11 lb load and fixed counterbalance and drag.
It provides a native 75mm half ball and has a flat starting with a 3/8"-16 installation thread on the bottom of the half ball.
It's straight compatible with 75mm bowl tripods but can additionally be mounted straight on sliders and other allows via the flat base.
A tie-down is supplied for securing it to tripods.
The assembly has a snap-in body plate configuration that lets you attach the supplied body plate from above rather than slide it in from the rear.
The plate has a moving range of 1.2" after secured. It comes with a 1/4"-20 installation screw and an anti-twist footage pin beside it.
A long rosette-mount pan bar is supplied and an optional second one is additionally supported.

Feature Highlights

• 11 lb payload
• 75mm half ball with a flat base and 3/8"-16 mounting thread
• Snap-in camera plate system
• 1/4"-20 mounting screw with a video pin
• Long pan bar (an optional second one is supported)
• Fixed counterbalance and drag
• Illuminated bubble level

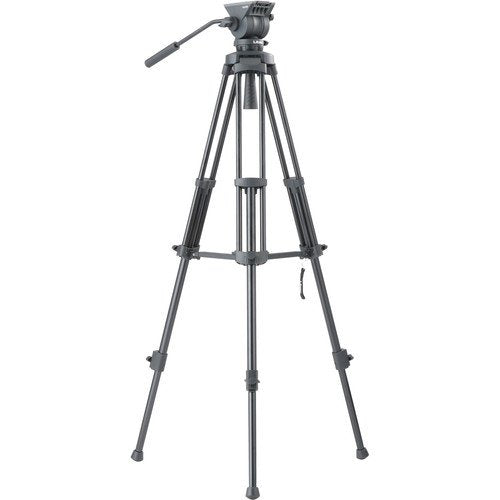

Libec TH-Z T Aluminum Tripod: Mid-Level Spreader (75mm Bowl)

The Libec TH-Z T is a 2-stage aluminum support with a 75mm bowl starting and built-in mid-level spreader.
Compatibility includes up to 55 lb and is configurable from a lowest height of 23" to a highest height of 58.5".
The built-in mid-level spreader is configurable telescopically.

Libec ALX S8 Slider (32.6"): Guide

The Libec ALX S8 is a 32.6" long body slider that incorporates a built-in 75mm ball starting with a flat bottom, enabling it to be mounted straight to 75mm bowl smooth heads as well as flat-base heads.
when employed on tabletop or flat surface through, the slider has a highest payload capacity of 33 lb.
For level and wobble-free operation, the carriage incorporates eight roller bearings placed on the rail top and along the sides at angles.
A spring-loaded friction knob enables you to refine slide tension, whereas a brake knob locks the carriage in position at any position on the rails.
with the supplied hexagon wrench, you can refine the pushing force that the ball bearing exerts on the rail.
Both slider ends provide 1/4-inch-20 and 3/8-inch-16 threads plus an accessory rosette for a range of accessories.
If you will be through the slider on the terrain or tabletop, the slider integrates built-in legs with height-adjustable feet to handle non-level terrain.
For compact transport, the legs fold alongside the slider and lock in position with thumb knobs.
Fully removing the knobs releases the legs and permits the 32.6-inch rail to be exchanged for separately provided 15.5" or 47" rail ranges.
