SKU: RS-450D

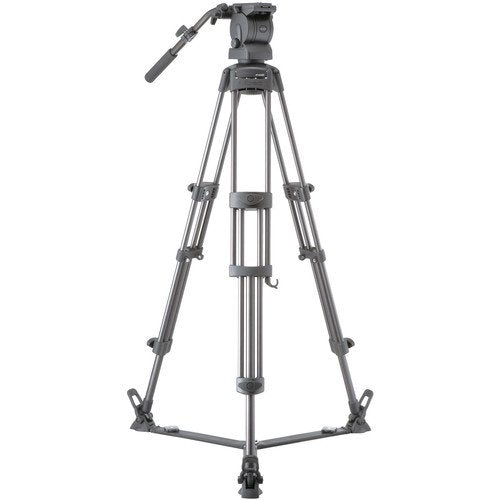

Libec RS-450D Tripod System with Floor Spreader
Libec RS-450D Tripod System with Floor Spreader
In stock
View full details
WhatsApp us for inquiries
Within its operating design, the RS-450D Support System from Libec incorporates the RT40RB support legs with a 75millimetres bowl, the RH45D support head, the SP-2B terrain spreader, and the RC-50 case. The RT40RB support legs are height configurable from 18.5" to 5.16'. They handle a assembly with a ball width of 75mm and are developed to operate with the RH45D assembly. The SP-2B terrain spreader works on level surfaces, delivering both support and floor protection. The RC-50 black support case is a padded case with rubber feet, developed to transport your support.

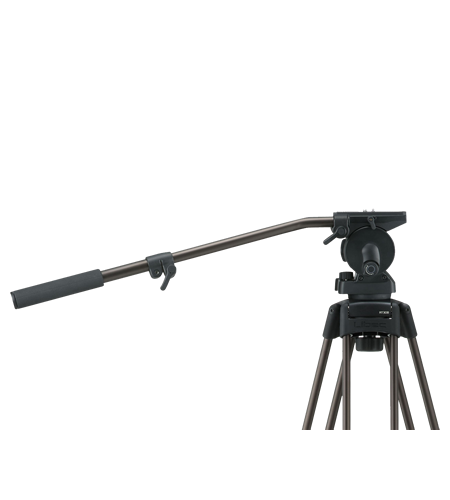

Libec RH45D Fluid Head
Developed for ENG bodies supporting up to 26.5 lb, the RH45D Smooth Head from Libec incorporates an unified ball/flat mount configuration. The base of the support can integrate either in a conventional 75millimetres bowl or on a flat fitting with a 3/8"-16 screw. Having both choices provided means you can transfer the RH45D from a support with a bowl fitting to a flat-mount slider.
To achieve proper equilibrium, the head incorporates a moving body plate with 1.6" of fore/aft adjustment. The screw and locating pin are moveable to orient the plate on the unit to achieve the finest possible equilibrium. Once the unit is well-controlled, the uninterrupted counterbalance and pan/tilt drag settings deliver a level action with reduced backlash and unnecessary "bouncing."
Supplied with the assembly is a PH-6B pan accommodate. The accommodate is extendable for better range or more accurate movement. The bar can be placed on the right or left side of the assembly by screwing it onto one of the rosettes.

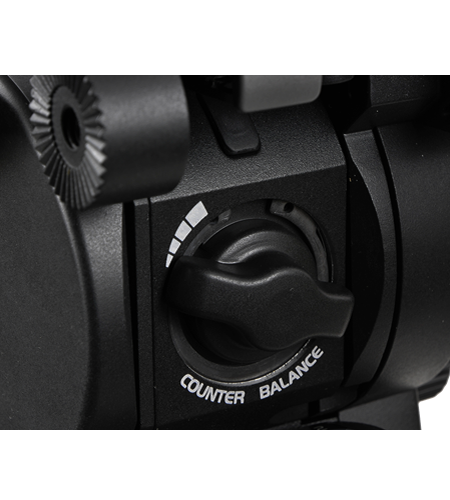

Uninterrupted Counterbalance
This smooth head is equipped with a continuously configurable counterbalance arrangement that can be fine-tuned to deliver the correct amount of counterforce that corresponds to the mass and angle of your camera. Distinct cameras can be employed and correct counterbalance allows a setting for every camera configuration.
Smooth Drag Arrangement
The fluid drag mechanism lowers backlash that can occur at the beginning or end of panning/tilting shifts.
Low Temperature Performance
The RH45D is rated to be employed in temperatures down to -40°F eliminating seriously impacting the performance of the smooth drag configuration.
Libec RT40RB 2-Stage Support Legs With 75millimetres Bowl
These Libec RT40RB 2-Stage Support Legs With 75millimetres Bowl are 2-stage aluminum legs developed for use with shoulder bodies with elevated rigidity. The legs deliver a highest height of 5.16' and a lowest height of 18.5". They can handle a assembly with a ball width of 75millimetres. Aluminum die casting surface is employed for the casing for the upper leg fixation screw to maintain a elevated level of support. The mass of the legs is 6.8 lb.
Developed for use with shoulder bodies with elevated rigidity
2-stage aluminum legs
maximum height of 5.16'
Aluminum die casting surface is employed for the casing for the upper leg fixation screw to maintain a elevated level of support
Libec SP-2B Terrain Spreader
The Libec SP-2B Terrain Spreader is a ground-level support spreader that replaces the SP-1B. Additional user-friendly and hardwearing than the previous model, the SP-2B is developed for use with the RT30B and RT40B support legs. It works on level surfaces, delivering both support and floor protection.
Libec RC-50 Support Case for RT40RB (Black)
This black RC-50 Support Case for RT40RB from Libec is a heavy-duty, padded case constructed for intensity and the conditions of transportation. The wide opening supplies quick and simple access to your support. Made from durable, water-resistant polyurethane-coated polyester, the bottom of the bag has rubber feet for terrain protection and shock absorption.
Transport the bag with the two top intertwined, plastic-grip handles or with the detachable shoulder strap. The inside has a practical zippered capacity pocket for items such as a pan accommodate.
Wide opening end to end for fast and simple access to your support
Fully-padded surface for shock protection during transport
Water-resistant PU-coated polyester and a heavy-duty zip fastener
The bottom protects and absorbs outboard impacts
Comfortable primary handle is plastic-gripped, side accommodate is tough, and padded shoulder strap is detachable
Inside pocket shops components such as a panhandle
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via configuration integrator, resellers & international visitors.contact us
Follow us
| Weight | 12 kg |
|---|---|
| Dimensions | 100 × 27 × 30 cm |
| Payload | 12kg |
| Counterbalance | Continuous Perfect Counterbalance Range: 4.5 to 10.5kg |
| Drag Mode | Free plus 3-Step |
| Tilt Angle | +90° / -70° |
| Temperture range | -40C° / +60C° |
| Bubble level | Illuminated |
| Camera Plate | Sliding plate |
| Sliding Range | +/- 40mm |
| Plate attachment | 1/4'' screw with video pin |
| Spare screws | 1/4'' abd 3/8'' screws |
| Weight | 6.7kg |
| Height | 63 to 173cm |
| Ball Diameter | 75 mm |
| Section | 2-stage |
Key Features
- Wide opening end to end for quick and easy access to your tripod
- Fully-padded surface for shock protection during transport
- Water-resistant PU-coated polyester and a heavy-duty zip fastener
- The bottom protects and absorbs external impacts
- Comfortable main handle is plastic-gripped, side handle is tough, and padded shoulder strap is detachable
- Interior pocket stores accessories such as a panhandle
