SKU: RS-250DM
Libec RS-250DM Tripod System with Mid-Level Spreader
Libec RS-250DM Tripod System with Mid-Level Spreader
In stock
View full details
WhatsApp us for inquiries

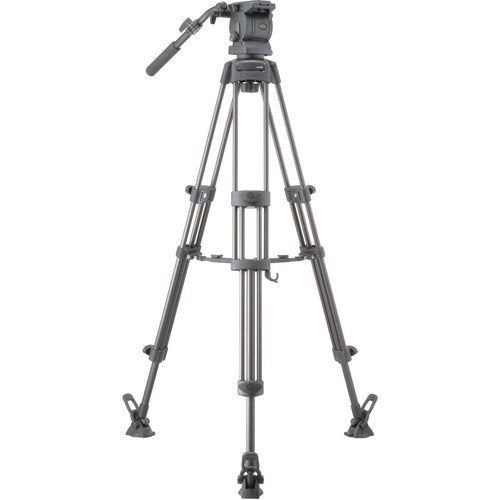

As configured for this product, the RS-250DM Support System from Libec incorporates the RT30B support with a 75millimetres bowl, the RH25D assembly, the BR-2B mid-level spreader, and the RC-30 case. The RT30B 2-stage aluminum support can extend from 16 to 59.5". It is developed to operate with the RH25D assembly. The BR-2B terrain spreader works on level surfaces, delivering both support and floor protection. The RC-50 black support case is a padded case with rubber feet, developed to transport your support.
Libec RH25D Smooth Head
Designed for space-efficient cameras supporting up to 13 lb, the RH25D Smooth Head from Libec incorporates an unified ball/flat mount configuration. The base of the support can integrate either in a conventional 75millimetres bowl or on a flat fitting with a 3/8"-16 screw. Having both choices provided means you can transfer the RH25D from a support with a bowl fitting to a flat-mount slider.
To achieve proper equilibrium, the head incorporates a moving camera plate with 1.6" of fore/aft adjustment. The screw and locating pin are moveable to orient the plate on the body to achieve the finest possible equilibrium. Once the body is well-controlled, the uninterrupted counterbalance and pan/tilt drag settings deliver a level action with reduced backlash and unnecessary "bouncing."

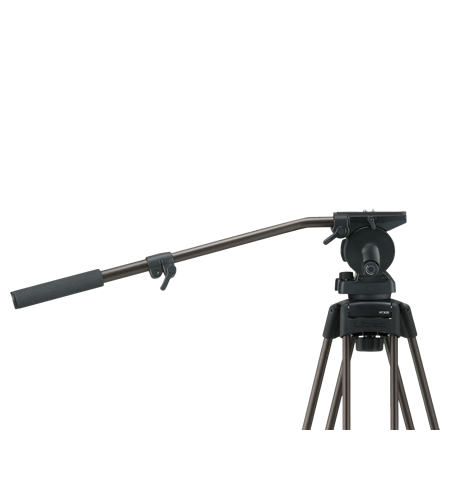

Supplied with the assembly is a PH-6B pan accommodate. The accommodate is extendable for better range or more accurate movement. The bar can be placed on the right or left side of the assembly by screwing it onto one of the rosettes.

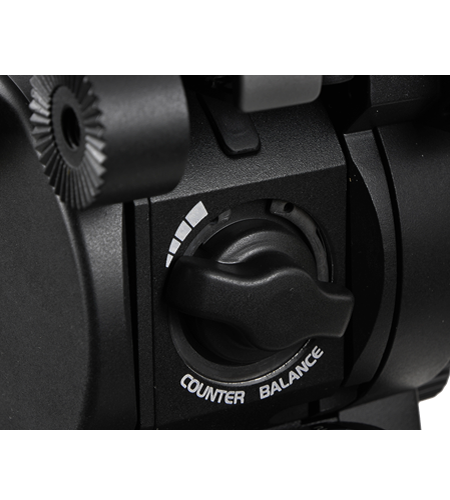

Uninterrupted Counterbalance
This smooth head is equipped with a continuously configurable counterbalance platform that can be fine-tuned to deliver the correct amount of counterforce that corresponds to the mass and angle of your camera. Distinct cameras can be employed and correct counterbalance allows a setting for every camera configuration.
Smooth Drag Platform
The fluid drag mechanism lowers backlash that can occur at the beginning or end of panning/tilting shifts.
Low Temperature Performance
The RH25D is rated to be employed in temperatures down to -40°F eliminating seriously impacting the performance of the smooth drag arrangement.
Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
The BR-2B Mid-Level Spreader from Libec is developed to supply added support to RT20C and RT30B tripods. It installs onto the mid-level leg stage and can refine the long of every arm by moving them output and tightening them with locking knobs. Finest used on irregular surfaces where terrain spreaders won't lie flat, the BR-2B additionally holds the tripod's legs from twisting.
Compatibility
Libec RT20C and RT30B tripods
Libec RT30B 2-Stage Aluminum Support Legs
The Libec RT30B 2-Stage Aluminum Support Legs function a 75millimetres bowl base and compatibility up to 55 lb loads. The height selection is a low lowest height of 16" to a highest height of 59.5". The support has spiked feet for use on soft terrain, and the aluminum die-cast surface employed for the upper leg casing enhances total support.
Libec Carrying Case
The Libec RC-30 Carrying Case (Black) is a non-padded, vinyl case developed to transport a Libec RT-30 tripod with a RH-30 support head mounted. It is carried by the accommodate or the attached, configurable shoulder strap.
Build
- Non-padded vinyl
- Zipper closure
Carrying choices
- Carry handle
- Attached, adjustable shoulder strap
Compatible with Libec RT-30 support with a RH-30 support assembly
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
BSN supports UAE customers directly and through system integrators, resellers, and international sales channels.contact us
Follow us
| Weight | 10.6 kg |
|---|---|
| Dimensions | 100 × 27 × 29 cm |
| Payload | 6kg |
| Counterbalance | Continuous Perfect Counterbalance Range: 1.8 to 5kg |
| Drag Mode | 2-Step |
| Tilt Angle | +90° / -70° |
| Temperture range | -40C° / +60C° |
| Bubble level | Illuminated |
| Camera Plate | Sliding plate |
| Sliding Range | +/- 40mm |
| Plate attachment | 1/4'' screw with video pin |
| Spare screws | 1/4'' abd 3/8'' screws |
| Weight | 6kg |
| Height | 55 to 165cm |
| Ball Diameter | 75 mm |
| Section | 2-stage |
Key Features
- Aluminum Tripod
- Pan and Tilt Fluid Head
- Sliding Plate Included
- Super Torque System
