SKU: QD-30PD

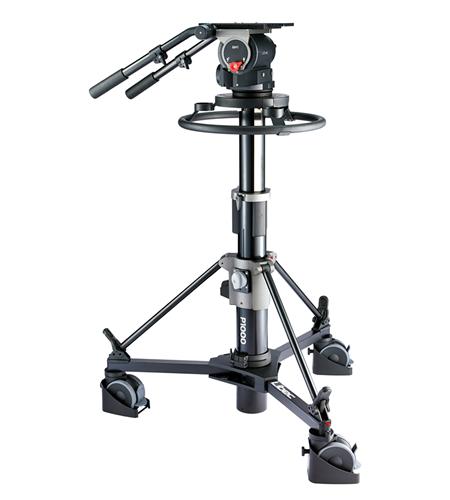

Libec QD-30PD Pedestal System
Libec QD-30PD Pedestal System
In stock
View full details
WhatsApp us for inquiries
From an imaging perspective, the Libec QD-30PD Pedestal Configuration with QH3 Assembly, P1000 Pedestal Column & DL-15B Dolly provides a system that accommodates up to 132 lb of body, fluid head, and accessories, appropriate for use in studio settings. The QH3 head provides a flat base and incorporates a 150millimetres half ball interface. It uses a snap-on capture device plate that enables you to pop the unit plate into the assembly from the top and slide the plate ahead/back to equilibrium your camera on the assembly. The supplied QH3 is a pedestal-capable heavy-duty assembly supporting up to 152 lb. It contains a 7-step pan and tilt drag with separate pan and tilt locks, as clearly as a uninterrupted counterbalance.
The P1000 pedestal provides a pneumatic column with a 150millimetres flat starting and rolling dolly wheels. The dolly wheels function a following locking mechanism to maintain the dolly in-motion in a straight range. The detachable cable guards avoid the pedestal from rolling over leads as you move the pedestal around the studio. The pedestal accommodates up to 132 lb, which means it can readily handle the QH3 assembly and a body system supporting up to 100 lb.
Libec QH3 Smooth Head
The Libec QH3 Smooth Head is a pedestal-capable heavy-duty assembly supporting up to 152 lb. It provides a 4-bolt flat base and ships with a 150millimetres half ball interface that secures through four supplied screws. The QH3 has a side-mount body plate system and incorporates a moving plate with dual 3/8"-16 threaded installation screws.
The smooth head is clearly appropriate for supporting small- and medium-sized box optics setups, and it ships with two 2-piece telescoping pan bars that enable for easier incorporation of optional zoom controllers. Other attributes incorporate continuous counterbalance, 7-step drag, separate independent pan and tilt locks plus a lit bubble level.
Principal Features
- Pedestal-capable heavy-duty fluid head with 152 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan

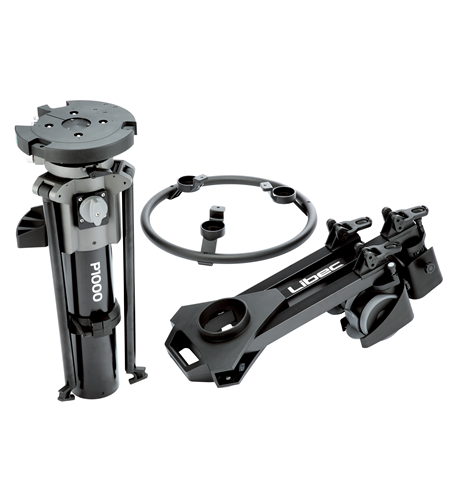

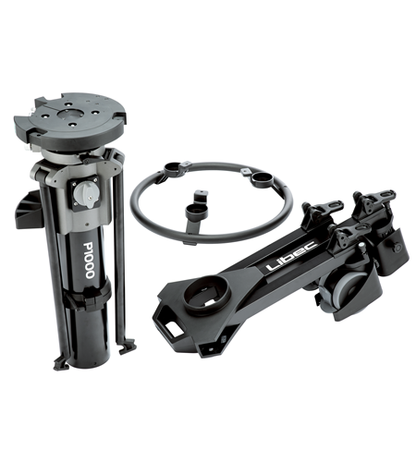

Libec P1000 150millimetres Flat base Pedestal Configuration
The Libec P1000 150millimetres Flat base Pedestal Arrangement is a 2-stage pneumatic column pedestal arrangement that accommodates up to 132 pounds (comprising fluid head) and provides 31.9" of height adjustment, a steering ring, 150millimetres flat base for installation either a Libec QH1 or QH3 smooth assembly, and a rolling dolly with detachable cable guards.
The P1000 is fitted with a following locking mechanism that maintains locked caster direction keeps travel straight between positions. The lead guards ride low over the wheels to avoid you from accidently rolling over leads whenever shifting settings on the Studio floor. The lead guards can be raised up whenever needed to enable the dolly to roll over irregular surfaces. An supplied manual air pump permits you to replenish the center column for proper operation, whereas an optional kick ring helps deliver you a position to use your feet to help start level rolling movement of the pedestal.
- The P1000 Pedestal can support 132 pounds of equipment, including video head, camera, and accessories
- Adjust the air pressure in the upper column to match the weight of the attached equipment; Libec refers to this as balancing the upper column, and it allows for easy height adjustment

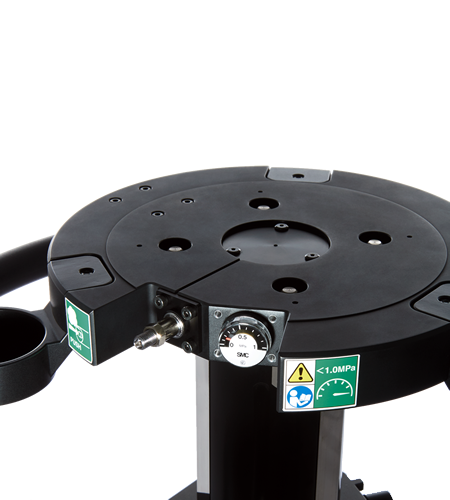

- The pedestal features a Schrader valve (American valve) and can be pressurized using the included manual air pump or by external devices such as a compressor
- Generally, with 0.25MPa (2.5 bar / 36.3 psi) of air pressure, the pedestal can balance 22 pounds of weight
- The included adjustment weights allow you to fine-tune the balance on the upper column
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
BSN supports UAE customers directly and through system integrators, resellers, and international sales channels.contact us
Follow us
| Weight | 55 kg |
|---|---|
| Dimensions | 274 × 155 × 115 cm |
| Payload | 47 kg |
| Weight | 39 kg |
| Height | 91.5 to 173.0 cm |
| Head Attachment | Flat Base with 4 bolts |
| Column | 2 Stage |
Key Features
- Libec QH3 Fluid Head
- 152 lb Payload
- Includes 150mm Half Ball Adapter
- Side-Mount Camera Plate System
- Illuminated Bubble Level
- P1000 150mm Flat Base Pedestal System
- Pneumatic Assist 2-Stage Center Column
- 31.9" Center Column Height Adjustment
- 132 lb Load Capacity
