SKU: QD-30

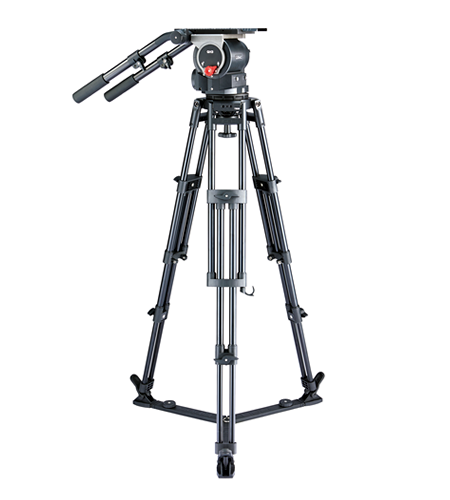

Libec QD-30 Tripod System with Ground Spreader
Libec QD-30 Tripod System with Ground Spreader
In stock
View full details
WhatsApp us for inquiries
For professional deployment, the Libec QD-30 Tripod System incorporates the pedestal-capable QH3 4-bolt flat starting fluid assembly and the T150B 2-stage aluminum support. The arrangement is complete with the SP-15B Terrain Spreader, which has individually configurable arms. The QH3 assembly attaches to the support via an supplied 150mm half-ball adapter and allows up to 152 lb. It has a side-mount imaging device plate configuration and ships with two telescoping pan bars. For attaching components, the T150B tripod provides a total of six 1/4"-20 and 3/8"-16 installation threads around the bowl base.

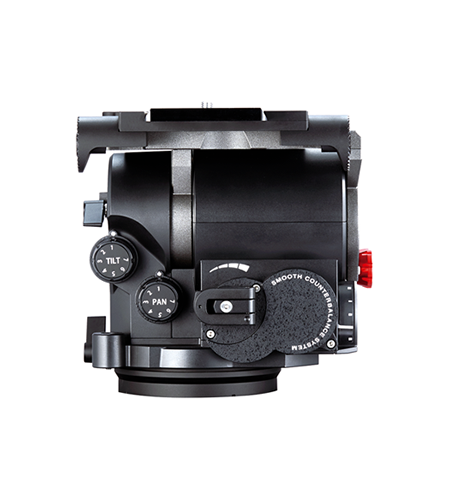

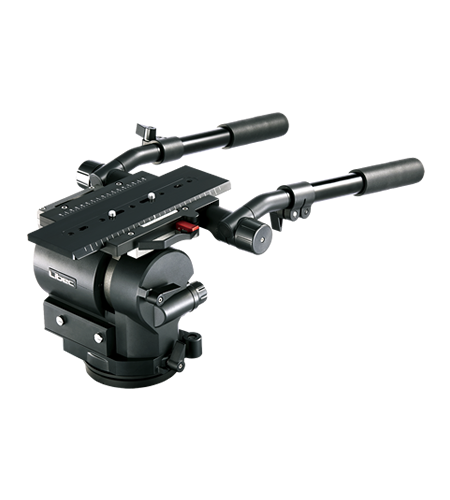

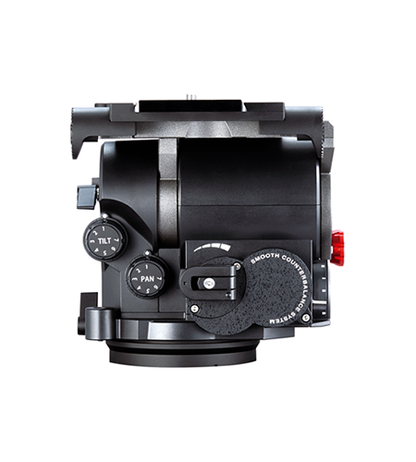

Libec QH3 Smooth Head
The Libec QH3 Smooth Head is a pedestal-capable heavy-duty assembly supporting up to 152 lb. It incorporates a 4-bolt flat base and ships with a 150millimetres half ball interface that secures through four supplied screws. The QH3 has a side-mount unit plate system and incorporates a moving plate with dual 3/8"-16 threaded installation screws.
The smooth head is clearly appropriate for supporting small- and medium-sized box optics setups, and it ships with two 2-piece telescoping pan bars that enable for easier incorporation of optional zoom controllers. Other capabilities incorporate continuous counterbalance, 7-step drag, separate independent pan and tilt locks plus a lit bubble level.
Principal Provides
- Pedestal-capable heavy-duty fluid head with 152 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan
Libec T150B Heavy-Duty 2-Stage Aluminum Support Legs with 150millimetres Bowl
The Libec T150B is a heavy-duty location of aluminum support legs with a 150mm bowl. Compatibility includes up to 220.5 lb and provides a height selection of 23 to 64" in two legs stages. Every leg has a twist leg locking mechanism knob at every stage. The legs function spiked feet and come with a plastic cover over them. If you incorporate an optional terrain spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders incorporate the SP-15B terrain spreader and BR-6B mid-level spreader. Optional rubber food pads are additionally supported, such as the FP-6B pads.
Several 3/8"-16 and 1/4"-20 accessory fitting threads are provided on two flanks of the support, on top near the bowl starting. A weight hook is additionally provided on one of the legs. The T150B is made in Japan. Compatible support heads incorporate the Libec QH1 and QH3.
Principal Features
- 150mm bowl
- 220.5 lb payload
- 23 to 64" height range in two leg stages
- Ergonomic twist leg lock knob at each stage of each leg
- Spiked feet
- One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
- Weight hook
- Optional foot pads and mid and ground spreaders supported
- Made in Japan
Libec SP-15B Terrain Spreader for T150B & T150C Tripods
The Libec SP-15B Terrain Spreader is compatible with the Libec T150B and T150C tripods. The arms are individually length-adjustable whenever you loosen purpose-built knobs, and a pull ring is provided in the center for collapsing the spreader.
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via setup integrator, resellers & international visitors.contact us
Follow us
| Weight | 26 kg |
|---|---|
| Dimensions | 183 × 85 × 77 cm |
| Payload | 69 kg |
| Counterbalance | Continuous Range: 28 to 65kg |
| Drag Mode | 7-step |
| Tilt Angle | +90° / -70° |
| Temperature range | -20°C to +60°C |
| Bubble Level | illuminated |
| Camera Plate | Sliding plate |
| Sliding Range | +/- 75mm |
| Plate Attachment | 3/8'' screw x2 |
| Spare Screw | 3/8'' screw x2 |
| Weight | 21.6 kg |
| Height | 82 to 186.5 cm |
| Ball Diameter | 150 mm |
| Section | Two-stage |
Key Features
- QH3 4-Bolt Flat Base Fluid Head
- T150B 2-Stage Aluminum Tripod
- 152 lb Payload, 32.5-73.5" Height Range
- SP-15B Ground Spreader
- 150mm Half-Ball Adapter
- Side-Mount Camera Plate System
- Two 2-Piece Telescoping Pan Bars
- Continuous Counterbalance
- 7-Step Drag
- Made in Japan
