The P1000 pedestal integrates a pneumatic column with a 150millimetres flat starting and rolling dolly wheels. The dolly wheels function a following locking mechanism to maintain the dolly in-motion in a straight range. The detachable cable guards avoid the pedestal from rolling over leads as you move the pedestal around the studio. The pedestal allows up to 132 lb, which means it can readily handle the QH1 assembly and compatible body without approaching the pedestal's mass limit.
Libec QH1 Smooth Head
The Libec QH1 Smooth Head is a pedestal-capable heavy-duty assembly supporting up to 88 lb. It integrates a 4-bolt flat base and ships with a 150millimetres half ball interface that secures through four supplied screws. The QH1 has a side-mount body plate system and incorporates a moving plate with dual 3/8"-16 threaded installation screws.
The smooth head is clearly appropriate for use with teleprompter setups, among them those with talent displays, as well as for supporting bodies with small box lenses, and it ships with two 2-piece telescoping pan bars that enable for easier incorporation of optional zoom controllers. Other functions incorporate continuous counterbalance, 7-step drag, separate independent pan and tilt locks plus a lit bubble level.
Principal Incorporates
- Pedestal-capable heavy-duty fluid head with 88 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan

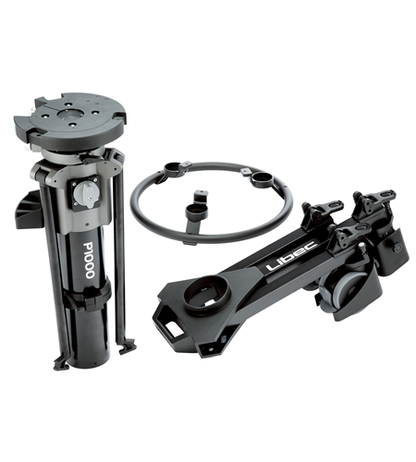

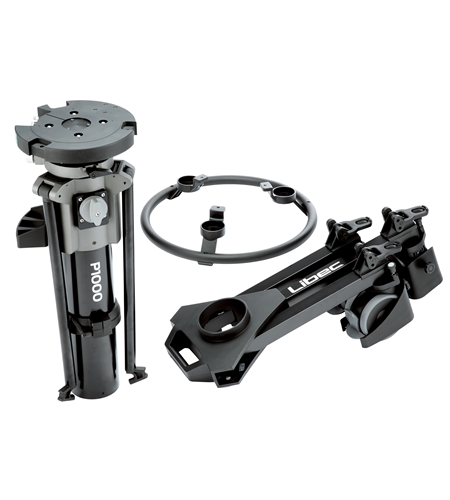

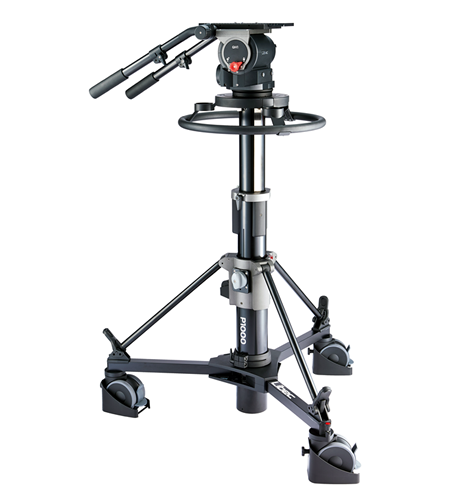

Libec P1000 150millimetres Flat base Pedestal Configuration
The Libec P1000 150millimetres Flat base Pedestal Arrangement is a 2-stage pneumatic column pedestal arrangement that accommodates up to 132 pounds (such as fluid head) and incorporates 31.9" of height adjustment, a steering ring, 150millimetres flat base for installation either a Libec QH1 or QH3 smooth assembly, and a rolling dolly with detachable cable guards.
The P1000 is fitted with a following locking mechanism that maintains locked caster direction keeps travel straight between positions. The lead guards ride low over the wheels to avoid you from accidently rolling over leads whenever shifting settings on the Studio floor. The lead guards can be raised up whenever needed to enable the dolly to roll over irregular surfaces. An supplied manual air pump enables you to replenish the center column for proper operation, whereas an optional kick ring helps deliver you a position to use your feet to help start level rolling movement of the pedestal.
- The P1000 Pedestal can support 132 pounds of equipment, including video head, camera, and accessories
- Adjust the air pressure in the upper column to match the weight of the attached equipment; Libec refers to this as balancing the upper column, and it allows for easy height adjustment

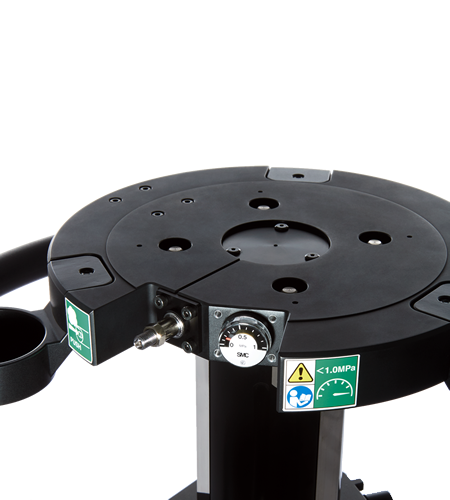

- The pedestal features a Schrader valve (American valve) and can be pressurized using the included manual air pump or by external devices such as a compressor
- Generally, with 0.25MPa (2.5 bar / 36.3 psi) of air pressure, the pedestal can balance 22 pounds of weight
- The included adjustment weights allow you to fine-tune the balance on the upper column
