SKU: QD-10M

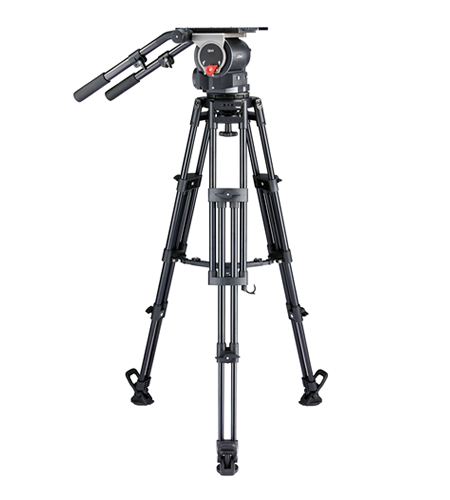

Libec QD-10M Tripod System with Mid-Level Spreader
Libec QD-10M Tripod System with Mid-Level Spreader
In stock
View full details
WhatsApp us for inquiries
Looking first at image acquisition, the Libec QD-10M Support System integrates the pedestal-capable QH1 4-bolt flat starting fluid assembly and the T150B 2-stage aluminum support. The platform is complete with a telescoping mid-level spreader and large rubber foot pads. The QH1 assembly attaches to the support via an supplied 150mm half-ball adapter and handles up to 88 lb. It has a side-mount body plate configuration and ships with two telescoping pan bars. For attaching components, the T150B tripod supplies a total of six 1/4"-20 and 3/8"-16 installation threads around the bowl base.

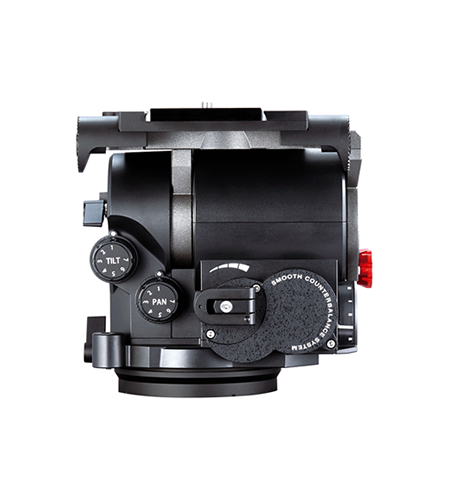

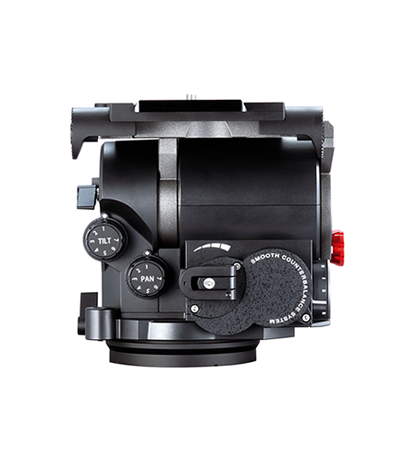

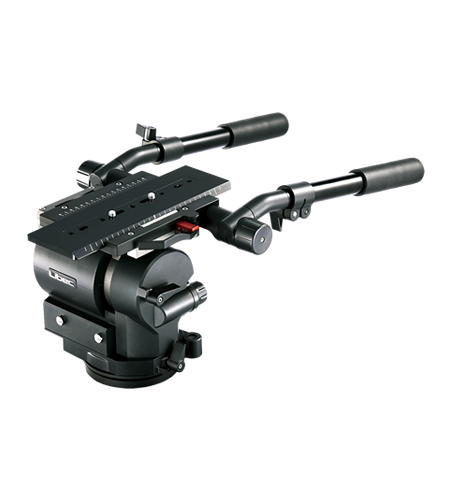

Libec QH1 Smooth Head
The Libec QH1 Smooth Head is a pedestal-capable heavy-duty assembly supporting up to 88 lb. It provides a 4-bolt flat base and ships with a 150millimetres half ball interface that secures through four supplied screws. The QH1 has a side-mount body plate system and incorporates a moving plate with dual 3/8"-16 threaded installation screws.
The smooth head is clearly appropriate for use with teleprompter setups, among them those with talent displays, as well as for supporting bodies with small box lenses, and it ships with two 2-piece telescoping pan bars that enable for easier incorporation of optional zoom controllers. Other functions incorporate continuous counterbalance, 7-step drag, separate independent pan and tilt locks plus a lit bubble level.
Principal Provides
- Pedestal-capable heavy-duty fluid head with 88 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan
Libec T150B Heavy-Duty 2-Stage Aluminum Support Legs with 150millimetres Bowl
The Libec T150B is a heavy-duty location of aluminum support legs with a 150millimetres bowl. It accommodates up to 220.5 lb and provides a height selection of 23 to 64" in two legs stages. Every leg has a twist leg locking mechanism knob at every stage. The legs function spiked feet and come with a plastic cover over them. If you incorporate an optional terrain spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders incorporate the SP-15B terrain spreader and BR-6B mid-level spreader. Optional rubber food pads are additionally supported, such as the FP-6B pads.
Several 3/8"-16 and 1/4"-20 accessory fitting threads are provided on two flanks of the support, on top near the bowl starting. A weight hook is additionally provided on one of the legs. The T150B is made in Japan. Compatible support heads incorporate the Libec QH1 and QH3.
Principal Contains
- 150mm bowl
- 220.5 lb payload
- 23 to 64" height range in two leg stages
- Ergonomic twist leg lock knob at each stage of each leg
- Spiked feet
- One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
- Weight hook
- Optional foot pads and mid and ground spreaders supported
- Made in Japan
Libec BR-6B Mid-Level Spreader
Quickly set up your support as well as attach support with the BR-6B Mid-Level Spreader from Libec. Compatible with the RT40RB, RT50B, RT50C, T102B, and T103B tripods, this telescopic version can extend from 7" to 10.3" to handle an extensive selection of leg angles.
Libec Large Rubber Foot Pads for Choose Tripods
The replacement Large Rubber Foot Pads for Choose Tripods from Libec are compatible with their T102B, T103B, T150B, and T150C tripods. The rubber pads attach to the bottom of every leg and avoid the support from moving on level surfaces.
Compatibility
Libec: T102B, T103B, T150B, & T150C Tripods
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via platform integrator, resellers & international visitors.contact us
Follow us
| Weight | 26 kg |
|---|---|
| Dimensions | 183 × 85 × 77 cm |
| Payload | 40 kg |
| Counterbalance | Continuous Range: 15 to 35kg |
| Drag Mode | 7-step |
| Tilt Angle | +90° / -70° |
| Temperature range | -20°C to +60°C |
| Bubble Level | illuminated |
| Camera Plate | Sliding plate |
| Sliding Range | +/- 75mm |
| Plate Attachment | 3/8'' screw x2 |
| Spare Screw | 3/8'' screw x2 |
| Weight | 21.6 kg |
| Height | 82 to 186.5 cm |
| Ball Diameter | 150 mm |
| Section | Two-stage |
Key Features
- QH1 4-Bolt Flat Base Fluid Head
- T150B 2-Stage Aluminum Tripod
- 88 lb Payload, 38.5 to 73" Height Range
- Mid-Level Spreader, Large Foot Pads
- 150mm Half-Ball Adapter
- Side-Mount Camera Plate System
- Two 2-Piece Telescoping Pan Bars
- Continuous Counterbalance
- 7-Step Drag
- Made in Japan
