A Closer Look at Libec NX-300c Tripod System

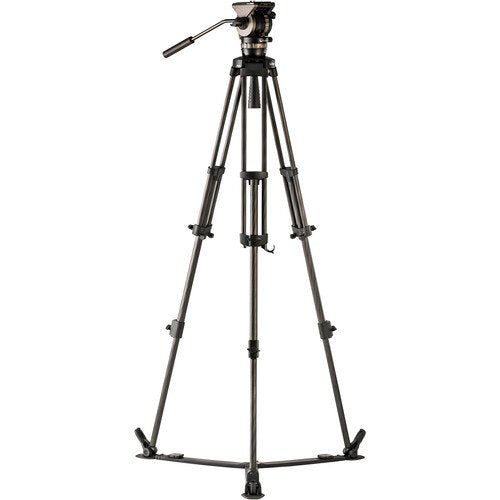

Support your small camera rig supporting up to 22 lb and produce smooth pan and tilt motion with this NX-300C Carbon Fiber Support System with NH30 Assembly, Terrain Spreader, Long Plate & Case from Libec. The NX-300C arrangement incorporates the NH30 dual 75millimetres bowl/flat base video assembly, the RT20C carbon fiber support, the SP-1B terrain spreader, the Long Plate S equilibrium plate, and a RC-20 transport case.The base of the assembly fits the tripod's 75millimetres bowl, and it is additionally compatible with tripods with a flat fitting. It integrates uninterrupted pan/tilt drag and counterbalance, a snap-on/off fast release plate, an illuminated bubble level, and a pan bar. The Long Plate S is an extended unit plate for compatibility larger, heavier rigs. The two-stage low-weight carbon fiber support weighs only 3.5 lb and can extend to a height of 60.6". The terrain spreader installs at the starting of the support to attach stability to the rig. The transport case shops and transports the entire platform.

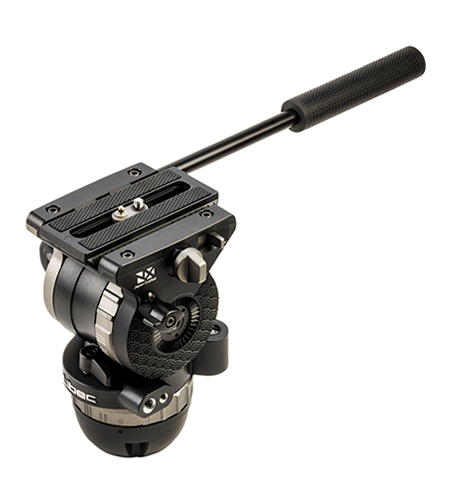

Libec NH30 75millimetres Ball/Flat base Video Assembly with Pan Handle (22 lb Payload)
Developed for compatibility small body rigs supporting up to 22 lb, the NH30 75millimetres Ball/Flat base Video Assembly with Pan Handle from Libec incorporates an unified ball/flat mount configuration. The base of the support can integrate either in a conventional 75millimetres bowl or on a flat fitting with a 3/8"-16 screw. Having both choices provided means you can transfer the assembly from a support with a bowl fitting to a flat mount slider.
To achieve proper equilibrium, the NH30 head incorporates a snap-on/off unit plate that can slide up to 1.2" of fore/aft adjustment, and it integrates 1/4"-20 and 3/8"-16 camera mounting screw choices. The screw and locating pin are moveable to orient the plate on the body to achieve the finest possible equilibrium. Once the body is well-controlled, the uninterrupted counterbalance and pan/tilt drag settings deliver level movement. On the side, there are 1/4"-20 and 3/8"-16 threads to fitting a selection of components such as a illumination, monitor, or extension arm.
Supplied with the NH30 is a pan accommodate that can be placed on the right or left side of the assembly by screwing it onto one of the mounts. The LED-illuminated bubble level assists to level the unit on irregular surfaces, even in low illumination.

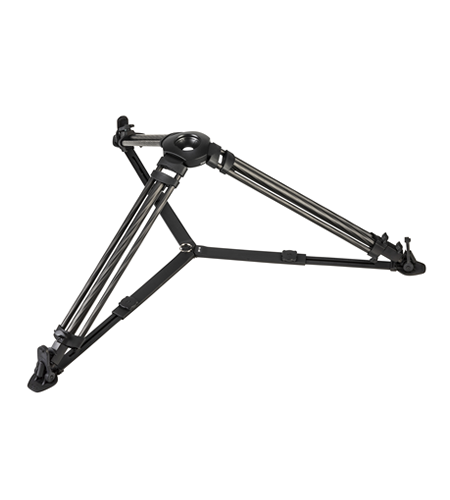

Libec RT20C 2-Stage Low-weight Carbon Fiber Support with 75millimetres Bowl
Attach a hardwearing, lightweight support to your body rig with this RT20C 2-Stage Low-weight Carbon Fiber Support with 75millimetres Bowl from Libec. The RT20C supplies a 75millimetres bowl mount for installation a wide selection of smooth heads. The low-weight carbon fiber legs weigh only 3.5 lb. Secured by twist levers, the 2-stage legs deliver a height selection of 14.6 to 60.6". This support does not incorporate rubber feet or a spreader, which can be purchased separately.
Libec RC-20 Carrying Case for NX-100C & NX-300C Tripods
The Libec RC-20 Carrying Case is developed to transport Libec NX-100C and NX-300C tripods systems. Made from a combination of materials that are resistant to water, use, and tearing, the case has a soft non-padded lining that makes it simple to insert and remove your support without scratching its finish.
Build
- Made of nylon, polyester, polypropene, polyethylene, acetal plastic & thermoplastic elastomer
- Combining multiple materials adds wear, water, and rip resistance
- Soft unpadded interior makes it easy to insert and remove tripod without marking or marring its finish
- Zipper closure
Pockets
- Large main compartment holds a NX-100C or NX-300C tripod system
- Zippered exterior slip pocket
- Open exterior slip pocket
Carrying choices
- Soft connecting carry handles
- Carry handles are located off-center for proper load balance with the tripod system inside
- Attached, adjustable shoulder strap
- Weighs just over a pound empty
Libec Long Moving Plate S for TH-X, TH-Z, NH10 & NH30 Heads
This Long Moving Plate S from Libec assists to properly equilibrium a heavier body or body rig with a longer optics on choose support heads. This 9.4" long plate is constructed from an aluminum alloy and provides a 3.7" moving selection. It is compatible with Libec TH-X, TH-Z, NH10, and NH30 heads, as clearly as choose Manfrotto and Sachtler heads.
Moving Plate
Protection 9.4" long with a moving range of 3.7"
Compatibility
- Libec TH-X, TH-Z, NH10, and NH30 heads
- Select Manfrotto and Sachtler heads
Aluminum Alloy
Hardwearing aluminum alloy build
FZE LLC develops integrated solutions for CCTV monitoring and security, broadcast workflows, and professional audiovisual systems.
Across 25 years, projects have been completed internationally for public- and private-sector CCTV clients. Turnkey studios, control space, OB Van carries, Professional A/V & communication systems.
A Dubai showroom is being established so our experience can directly support the UAE community straight & via configuration integrator, resellers & international visitors.contact us
Follow us
| Weight | 8 kg |
|---|---|
| Dimensions | 100 × 27 × 25 cm |
| Payload | 10kg |
| Counterbalance | Free plus 5-Step Range: 0 to 10kg |
| Drag Mode | Pan drag mode : Free plus 3-Step Tilt drag mode : Free plus 3-Step |
| Tilt Angle | +90° / -70° |
| Temperture range | -40C° / +60C° |
| Bubble level | Illuminated |
| Camera Plate | Sliding plate Compatible with Manfrotto and Sachtler heads |
| Sliding Range | +/- 30mm |
| Plate attachment | 1/4'' screw with video pin |
| Spare screws | 1/4'' abd 3/8'' screws |
| Weight | 4.1kg |
| Height | 53 to 168cm |
| Ball Diameter | 75 mm |
| Section | 2-stage |
Key Features
- NH30 Video Head with 22 lb Payload
- Carbon Fiber Tripod with Ground Spreader
- Long Plate S, System Carry Case
- 75mm Half Ball/Flat Base Mount
- Continuous Counterbalance, Pan/Tilt Drag
- +90/-70° Tilt Angle
- Snap-On, Sliding Quick Release Plate
- LED-Illuminated Bubble Level
- Includes Pan Handle
