SKU: LX10 Studio

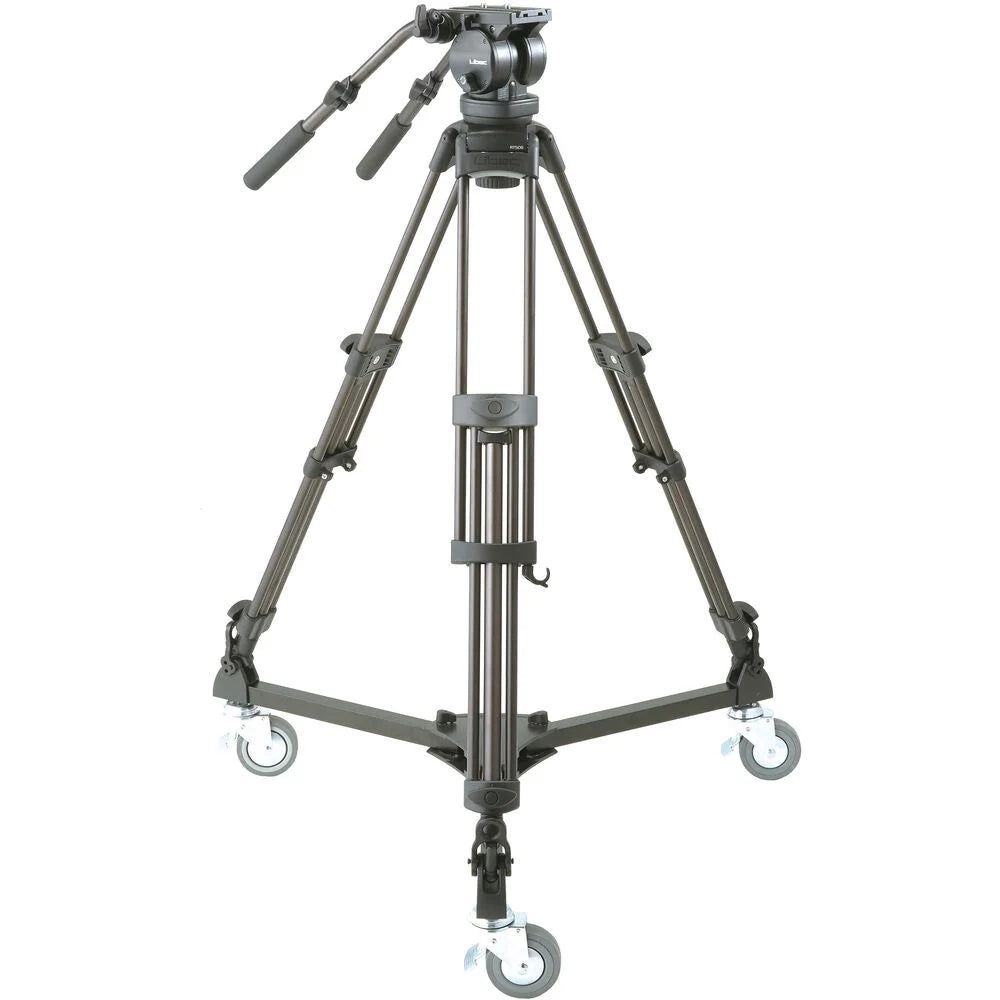

Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly
Libec LX10 Studio Two-Stage Aluminum Tripod System and H65B Head with Dual Pan Handles and Spreader Dolly
In stock
View full details
WhatsApp us for inquiries
Beginning with its core design, the Libec LX10 Studio Two-Stage Aluminum Support System and H65B Assembly with Dual Pan Handles and Spreader Dolly accommodates cameras and components weighing up to 16 kg. The assembly and legs function a 100millimetres ball/bowl, which delivers a wide base for consistent pictures. The legs are made from aluminum and function three leg sections. The assembly and legs come with a spreader dolly, and the setup is height-adjustable from 91.5 to 187 cm. To aid in leveling your attempt, a bubble level is incorporated into the assembly. The head additionally provides a sliding baseplate that enables you to refine the equilibrium of your camera. It delivers fixed counterbalance that assists the smooth head compatibility loads up to 16kg. With individual smooth drag adjustments for both pan and tilt, you can refine the smooth head to match your shooting style or the requirements of the shot. The head contains discreet pan and tilt locks, and the detachable pan handle can be mounted to either side of the assembly by using the built-in rosettes.
The moving balance plate integrates a total of four inches of equilibrium adjustment, two inches ahead and two inches rear of center. This does not make into account the built-in balance slot that permits you to refine the position of the captive unit tie-down screw.
The assembly includes a small stud at the front that prevents the equilibrium plate from moving out.

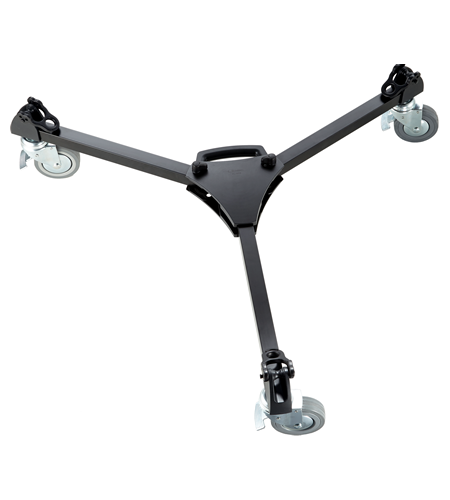

The supplied spreader dolly secures your tripod's legs, but enables you to roll your support from one position to another on a level surface. It can be employed during a attempt, but it is not as level as a true dolly.
Additional information
The moving balance plate integrates a total of four inches of equilibrium adjustment, two inches ahead and two inches rear of center. This does not make into account the built-in balance slot that permits you to refine the position of the captive unit tie-down screw.
The assembly includes a small stud at the front that prevents the equilibrium plate from moving out.
The supplied spreader dolly secures your tripod's legs, but enables you to roll your support from one position to another on a level surface. It can be employed during a attempt, but it is not as level as a true dolly.
Additional information
| Weight | 14 kg |
|---|---|
| Dimensions | 80 × 43 × 27 cm |
| Payload | 16 kg |
| Counterbalance | Fixed |
| Drag Mode | Two-step |
| Tilt Angle | +85° / -65° |
| Temperature Range | -20°C to +60°C |
| Bubble Level | Non-illuminated |
| Camera Plate | Sliding |
| Sliding Range | +/- 50 mm |
| Plate attachment | 3/8'' screw x2 |
| Spare Screw | 3/8'' screw |
| Weight | 10.9 kg |
| Height | 91.5 to 187cm |
| Ball Diameter | 100 mm |
| Section | Two-stage |
Key Features
- Supports 16 kg
- Sliding Balance Plate with Safety Stop
- Fixed Counterbalance System
- Two-Step Pan and Tilt Drag System
- +85 to -65° Tilt Range
- 100mm Half Ball
- Spreader Dolly
