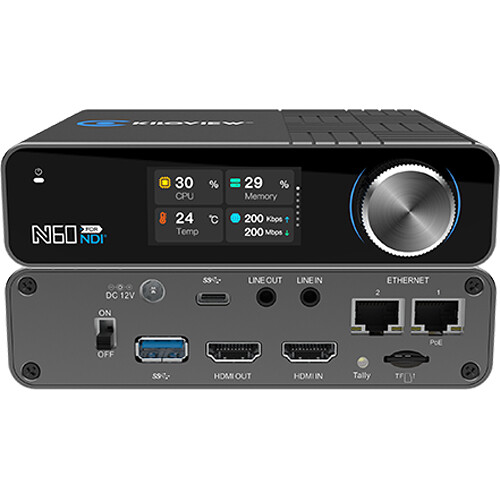

Convert HDMI sources at resolutions through UHD 4K for network delivery with the N60 UHD 4K HDMI/USB to NDI Bidirectional Converter from Kiloview. Its HDMI input and output support two-way conversion between baseband video and NDI or NDI|HX streams at up to UHD 4K60. USB Type-A and USB Type-C connections expand the available sources to include webcams and PC computers while also enabling PTZ operation.

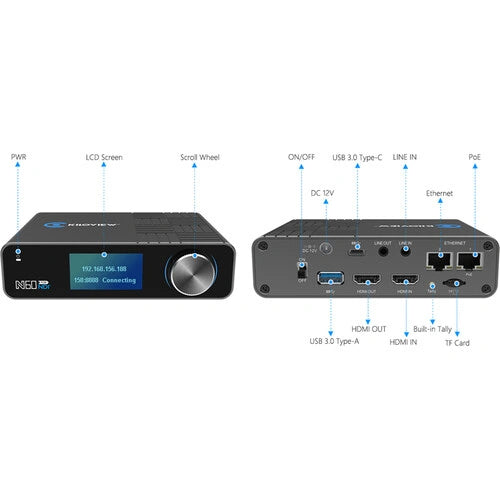

An HDMI loop output feeds a display or projector for local viewing. Separate line-level audio input and output connections extend sound support during both encoding and decoding. A large 1.96" LCD and scroll wheel occupy the front panel, providing port control and settings adjustment. The integrated TF card slot records encoded NDI material directly to removable media. Power may be supplied through either PoE or a DC connection.
Key Capabilities
- Supports up to YCC 4:2:2 with 10-bit color depth
- A USB 3.0 Type-C connection accepts a PC as a video source
- USB 3.0 Type-A receives webcam video for encoding
- Operates PTZ cameras through USB expansion or serial RS-232/485/422
- Compatible network-control protocols include Sony VISCA, PELCO-D, and PELCO-P
- 1.96" LCD screen and scroll wheel
- Two Ethernet interfaces, one supports PoE
- Supports NDI and NDI|HX 2.0
- TF card expansion allows encoded NDI video to be recorded on removable storage
- Attaches using a cold-shoe or V-mount accessory
