SKU: N5

Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter

Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter

In stock

Whatsapp Icon WhatsApp us for inquiries
View full details

The N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter from Kiloview sends video at resolutions through 1080p60 across an NDI IP network and provides low-latency source changes from a browser-based interface. It works with NDI High Bandwidth and NDI|HX 2/3, offering loop-through for display monitoring or 3G-SDI output from NDI feeds generated by cameras, software, and other compatible products.

PTZ operation is supported over IP or through USB-to-serial RS-232/485/422. One Ethernet cable can carry network data and power through PoE (Power over Ethernet). Multichannel sound is accepted through embedded audio and 3.5mm connections, while voice intercom enables communication between Kiloview products and a controlling computer or phone. A prominent front-panel LED tally indicator identifies program and preview status.

Two-Way NDI Conversion

Both NDI High Bandwidth and NDI|HX 2/3 can be encoded or decoded by the N5. Select the required operating mode through the user interface to adapt the unit to different workflows. Encoder mode transforms a 3G-SDI source into an NDI High Bandwidth or NDI|HX 2/3 stream, while decoder mode detects those NDI formats automatically and outputs them through 3G-SDI.

Integrated Status Display

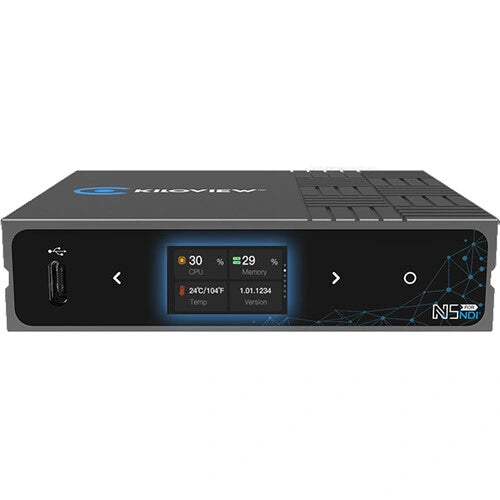

A 1.14" LCD with touch controls presents live information for network connectivity, IP address, CPU usage, memory, video resolution, operating temperature, and tally state.

Clean Source Changes

When operating as a decoder, the N5 lets users define as many as nine NDI feeds in its web interface and choose among them for output without black frames, flashing, or visible delay.

USB Keypad Operation

Decoder mode allows NDI sources to be assigned to numbers 0-9. After connecting a USB keypad, an output can be selected with one keystroke. The same inexpensive keypad solution may alternatively control a PTZ camera.

Several Ways to Supply Power

PoE powers the N5 through the same cable used for networking. Its broad 5 to 18 VDC input range also allows operation from USB power or a compatible camera battery.
UPC: 710917166583

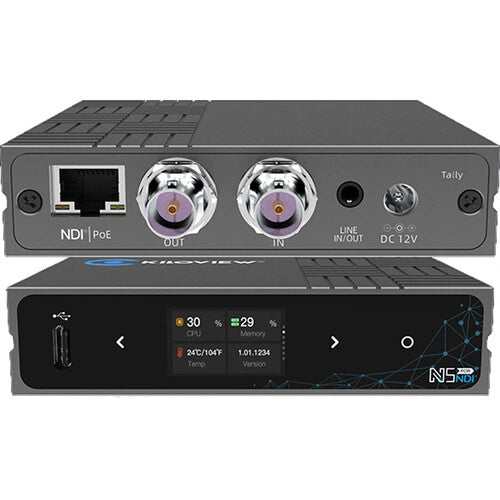

Inputs/Outputs

Inputs/Outputs
1x RJ45 (NDI)
1x 1/8" / 3.5 mm TRRS A/V
Video Inputs
1x BNC (3G-SDI)
Audio Inputs
No
Video Outputs
1x BNC (3G-SDI)
Audio Outputs
No
Other I/O
1x USB-C Control, NDI, PTZ
Expansion Slots
No

Format Support

Input Video Format
SDI
1080p at 23.98/24/25/50/59.94/60 fps
720p at 30/50/59.94/60 fps
SXVGA (1280 x 1024) at 60 fps
1152 x 900 at 60 fps
XGA+ (1152 x 864) at 60 fps
XGA (1024 x 768) at 60 fps
SVGA (800 x 600) at 60 fps
Input Audio Format
Analog
Output Video Format
SDI
1080p at 23.98/24/25/50/59.94/60 fps
720p at 30/50/59.94/60 fps
SXGA (1280 x 1024) at 60 fps
1152 x 900 at 60 fps
XGA+ (1152 x 864) at 60 fps
XGA (1024 x 768) at 60 fps
SVGA (800 x 600) at 60 fps
Output Audio Format
Analog
Embedded Audio
SDI: 2-Channel

Standards

HDR Support
No

IP Streaming

Video IP Encoding
NDI: 1920 x 1080 at 60p (80 to 125 Mb/s)
Video IP Decoding
NDI: 1920 x 1080 at 60p (80 to 125 Mb/s)

Hardware

Tally Light
Yes

Power

Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
6 W

Environmental

Operating Temperature
12 to 77°F / -20 to 45°C
Storage Temperature
-4 to 158°F / -20 to 70°C

General

Dimensions
3.9 x 3.1 x 0.9" / 100 x 80 x 24 mm
Weight
9.6 oz / 272 g

Packaging Info

Package Weight
1.37 lb
Box Dimensions (LxWxH)
8.3 x 6.8 x 3.4"

Key Features

  • Convert 3G-SDI to NDI & NDI|HX 2/3
  • Convert NDI & NDI|HX 2/3 to 3G-SDI
  • Resolutions up to 1080p60
  • Large Preview/Program Tally Display
  • Low-Latency Switching, Web-Based GUI
  • Embedded & 3.5mm Audio In/Out
  • USB Keypad Control in Decoder Mode
  • Supports External Power and PoE
