SKU: VL-2X

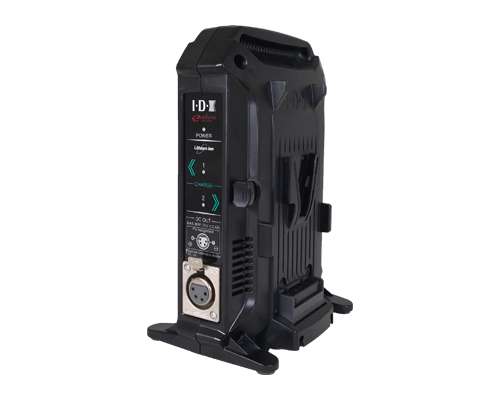

IDX VL-2X 2-Channel V-Mount Charger & Power Supply
IDX VL-2X 2-Channel V-Mount Charger & Power Supply
In stock
View full details
WhatsApp us for inquiries
Beginning with its core design, the VL-2X 2-Channel V-Mount Charger & Power Adapter from IDX supplies sequential charging for lithium-ion and NiCad battery packs, automatically routing to the second battery after completely charging the first. It produces up to 2.7A of quick-charge current eliminating the interference of a typical charger thanks to a fanless configuration. It additionally incorporates a 4-pin XLR power feed that provides up to 36W of DC power whenever the charger is linked to a wall outlet and your battery packs are removed. (The DC feed is disabled whenever a battery is charging.)
This portable desktop charger is developed with dependable internal safety incorporates that safeguard both the battery and charger from damage should faulty or misused battery packs be placed on the charger. It will without manual intervention stop charging if any mounted battery reaches an overvoltage condition.
VL-2X Charge Times for Select IDX Batteries: Guide
DUO-C190:7 hours for one / 14 hour period for twoDUO-150:5 hour period for one / 10 hour period for twoCUE-D150:5 hour period for one / 10 hour period for twoELITE:4.5 hour period for one / 9.4 hour period for twoE-HL10DS:3.4 hour period for one / 7.2 hour period for twoDUO-C95:3.4 hour period for one / 7.2 hour period for twoDUO-95:3.3 hour period for one / 7 hours for two
CUE-D95:3.3 hour period for one / 7 hours for two
E-HL9:3.2 hour period for one / 6.4 hours for two
CUE-D75:3 hour period for one / 6 hours for two
NP-L7S:3 hour period for one / 6 hours for two
CUE-D95:3.3 hour period for one / 7 hours for two
E-HL9:3.2 hour period for one / 6.4 hours for two
CUE-D75:3 hour period for one / 6 hours for two
NP-L7S:3 hour period for one / 6 hours for two
IDX System Technology VL-2X Specs
| Mount / Series Type | V-Mount |
| Number of Battery Bays | 2 |
| Output Connector | XLR 4-Pin Female |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Chemistry | Lithium-Ion, Nickel-Cadmium |
| Maximum Wattage | 36 W |
Environmental
| Operating Temperature | 23 to 104°F / -5 to 40°C |
General
| Dimensions | 7.22 x 5 x 3.44" / 18.34 x 12.7 x 8.74 cm |
| Weight | 0.95 lb / 430 g |
Key Features
- Fanless, Sequential Charging
- Up to 2.7A Quick-Charge Current
- 4-Pin XLR DC Output
- Overvoltage Protection
- Desktop Feet and Flip-Out Kickstand
- 100-240V Worldwide Power Input
- LED Status Indicators
