SKU: P-V284

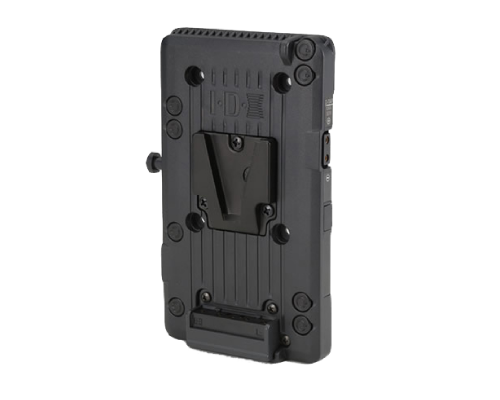

IDX System Technology P-V284 Endura V-Mount Plate
IDX System Technology P-V284 Endura V-Mount Plate
In stock
View full details
WhatsApp us for inquiries
| Weight | 0.2 kg |
|---|---|
| Dimensions | 17 × 13 × 4 cm |
| Output Connectors | 1 x D-Tap 50W (Unregulated) 1 x D-Tap 25W (Regulated) |
| Plate Front / Battery Mount | V-Mount |
| Included Accessories | M3 x 8 Screws (qty. 4) |
Key Features
- 2-Pin D-Tap DC Out / DigiView
- P-V2 Plate Series Variation
- Combines V-Mount Batteries to Cameras
- V-Mount Connection - Precise DC Power
- Battery Level Indication
- Regulated 8.4VDC Power
- Dual D-Taps Included
- Power Output - 50W
- Dimensions - 3.25 x 5.59 x 0.47"
- Supports Camera Input Cables
The IDX P-V284 Endura V-Mount Plate is a 2-pin D-tap DC Out and DigiView plate that is an enhanced variation of the P-V2 Plate series. Providing an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock, the plate offers precise DC power connectivity.
For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Featuring dual 2-pin D-taps, the plate uses 1 tap for regulated 8.4V. The second D-tap offers up to 16.8V (for IDX Lithium ion batteries) unregulated battery throughput for equipment such as lights and HDD recorders.
You can use the Endura V-Mount Plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W, and it measures 3.25 x 5.59 x .47" and weighs 0.40 lb.
- Offers 2-pin D-tap DC Out and DigiView
- Enhanced P-V2 plate series variation
- Provides an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock; the plate offers precise DC power connectivity
- Displays remaining battery power in the viewfinder for camera systems compliant with DigiView
- Features dual 2-pin D-taps for 8.4VDC regulated power
- Uses 1 D-tap for regulated 8.4V
- Second D-tap offers up to 16.8V (for IDX Lithium ion batteries) unregulated battery throughput for equipment such as lights and HDD recorders
- Supports a variety of cameras using the optional IDX cables specific to the camera models
- Offers a maximum power output of 50W
- Measures 3.25 x 5.59 x .47" and weighs 0.40 lb
