SKU: Imicro-150
IDX Imicro-150 14.5V 145Wh Li-Ion V-Mount Battery
IDX Imicro-150 14.5V 145Wh Li-Ion V-Mount Battery
In stock
View full details
WhatsApp us for inquiries
Considering the complete platform, the IDX Imicro-150 v-mount battery pack is a 14.5V, 145Wh V-mount battery with D-Tap Enhanced feed featuring a lithium-ion cells and space-efficient size of only 3.8 x 2.8". Supporting up to a 14A draw, it's appropriate for up to the primary demanding Cinema cameras, and the unit's smaller size makes it a additional adaptable choice for gimbal and mobile uses.

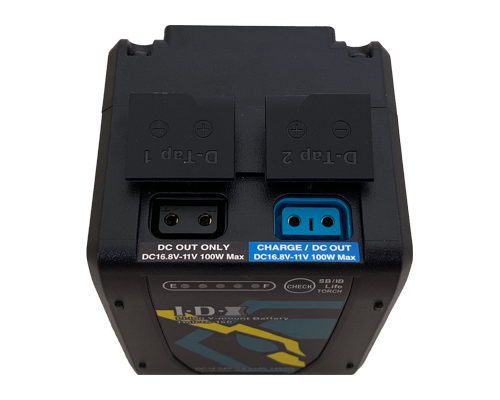

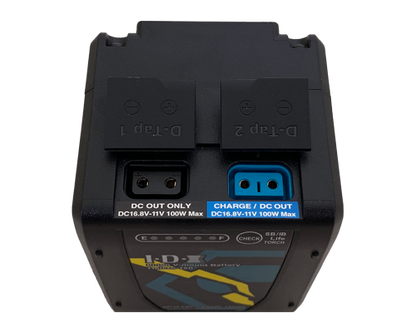

Despite the unit's small form, the Imicro-150 delivers two D-Tap feeds, one of them being an IDX D-Tap Enhanced feed that can instead be employed to charge the battery. This enhanced output allows D-Tap charging units such as the optional IDX VL-DT1, which is a portable charger. Alternatively, any IDX Endura v-mount battery pack can be employed.
Other incorporates of the Imicro-150 incorporate high-grade lithium-ion cells, 5-LED gauge, and battery circuit protection against common causes of battery misuse, such as overcharge, overdischarge, overcurrent, and light levels to elevated temperatures.
Purchase IDX battery packs v-mount battery pack today from international Dubai
locate out more Imicro-150
Despite the unit's small form, the Imicro-150 delivers two D-Tap feeds, one of them being an IDX D-Tap Enhanced feed that can instead be employed to charge the battery. This enhanced output allows D-Tap charging units such as the optional IDX VL-DT1, which is a portable charger. Alternatively, any IDX Endura v-mount battery pack can be employed.
Other incorporates of the Imicro-150 incorporate high-grade lithium-ion cells, 5-LED gauge, and battery circuit protection against common causes of battery misuse, such as overcharge, overdischarge, overcurrent, and light levels to elevated temperatures.
Purchase IDX battery packs v-mount battery pack today from international Dubai
IDX Imicro-150 Key capabilities
- High-grade lithium-ion cells
- Compact form factor
- 145Wh capacity
- Supports up to 14A loads
- 100W D-Tap Advanced output (unregulated) for accessories and charging
- 100W D-Tap output (unregulated)
- 5-LED power indicator
- Battery circuit protection
- 11V auto cutoff prevents overdischarging (while a load is applied)
- Compatible with all Endura V-mount chargers
- Recyclable
locate out more Imicro-150
IDX System Technology IMICRO Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 9900 mAh / 145 Wh |
| Output Voltage | 14.5 VDC |
| Maximum Load | 14 A |
| Accessory Port | 2 x D-Tap Output |
| Maximum Load (Accessory Port) | 100 W (D-Tap) |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions (W x H x D) | 2.8 x 3.8 x 2.7" / 7.11 x 9.65 x 6.86 cm |
| Weight | 1.65 lb / 0.75 kg |
Key Features
- Supports up to 14A Loads
- Compact Size Suitable for Gimbals/Drones
- 2 x D-Tap Outputs (One Allows Charging)
- 5-LED Gauge; Battery Circuit Protection
