SKU: DUO-C98P

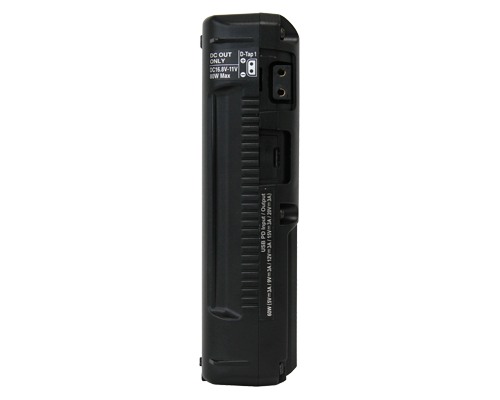

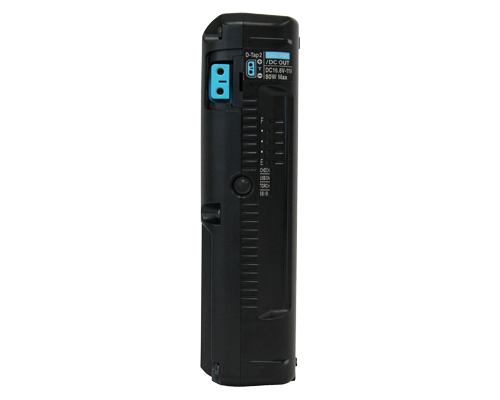

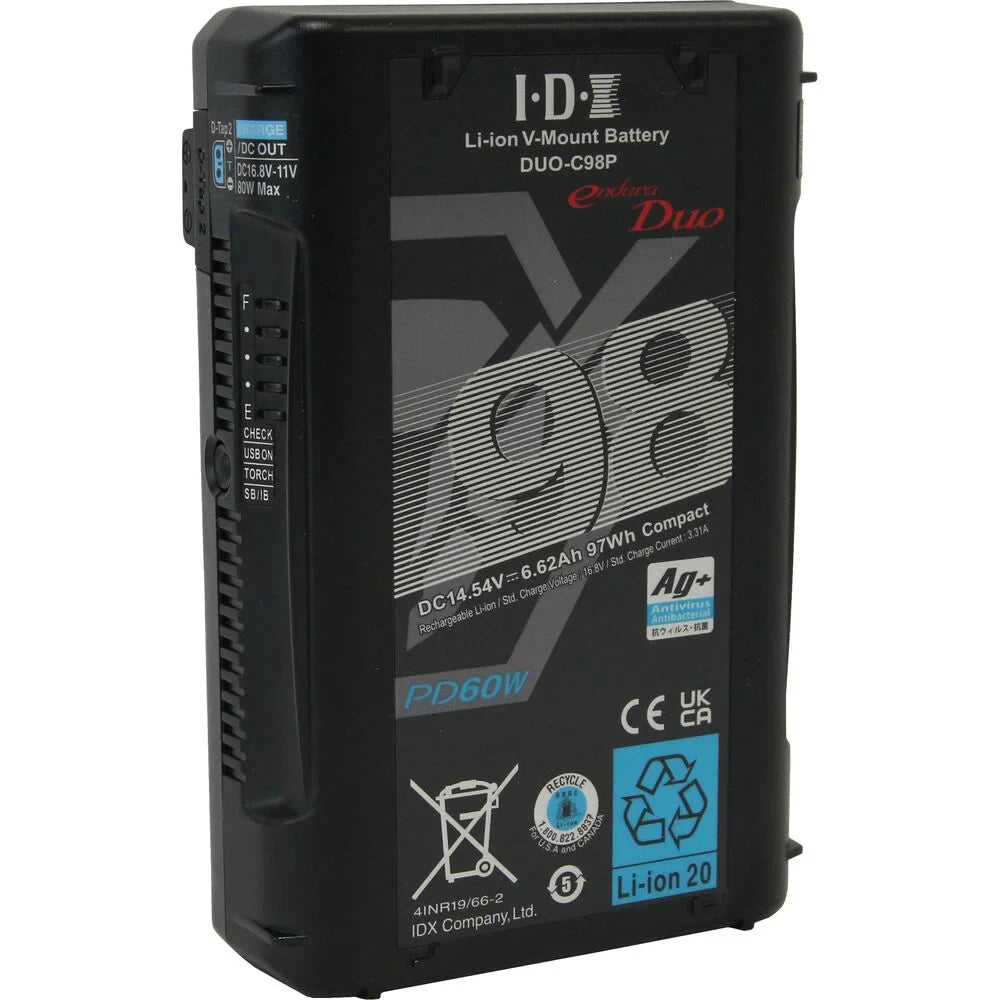

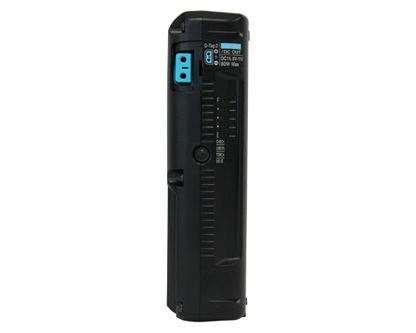

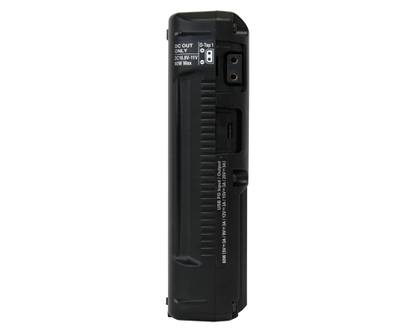

IDX DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
IDX DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
In stock
View full details
WhatsApp us for inquiries
Across its imaging platform, the DUO-C98P is the successor of the widely chosen DUO-C98 battery. its 97Wh capacity remains below the 100Wh IATA threshold and well suited to handheld gimbal and aerial setups. The DUO-C98P ships fitted with two built-in D-Taps and currently provides a built-in USB-C port to power components as clearly as charge the battery. Additionally, V-Torch LED for use in dark settings and SMBus to screen battery info through viewfinder on bodies such as ARRI and RED.
purchase IDX battery packs today from
DUO-C98P Key capabilities
- Suitable for cinema camera productions that need a high-capacity battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
- V-Torch light for easy attachment to the plate
- Handles up to 10.5A loads
- Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
- USB Type-C output port with 60W PD fast charging input
- Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
- Antiviral and antimicrobial body for hygienic peace of mind
IDX System Technology Endura DUO-C98P Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 6600 mAh / 97 Wh |
| Output Voltage | 14.5 VDC |
| Maximum Load | 115 W, 10 A (Peak) |
| Accessory Port | 1 x D-Tap Input/Output 80 W Regulated 1 x D-Tap Output 80 W Regulated 1 x USB Type-C Input/Output 60 W Regulated |
| Maximum Load (Accessory Port) | 80 W (D-Tap) 60 W (USB Type-C) |
| USB Output | 5 V, 3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions (W x H x D) | 3.74 x 5.75 x 1.54" / 9.5 x 14.61 x 3.91 cm |
| Weight | 1.41 lb / 0.64 kg |
Key Features
- 14.5V 97Wh V-Mount Battery
- SMBus Data Info Displays in Viewfinder
- Handles up to 10.5A Loads
- Two 80W D-Tap Accessory Outputs
- D-Tap & USB PD Fast Charging Port
- Battery Circuit Protection
- V-Torch, 5-LED Battery Life Indicator
- Compatible with UC-PD1 & VL-DT1 Chargers
