SKU: DUO-C198P

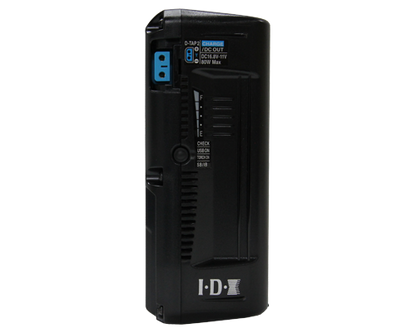

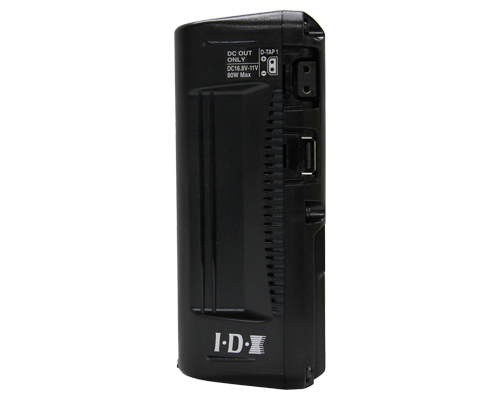

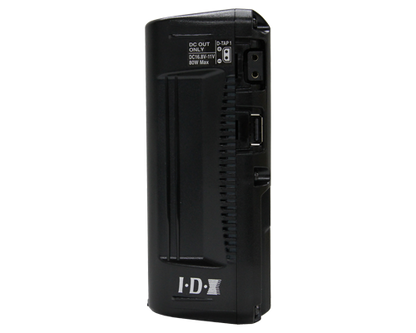

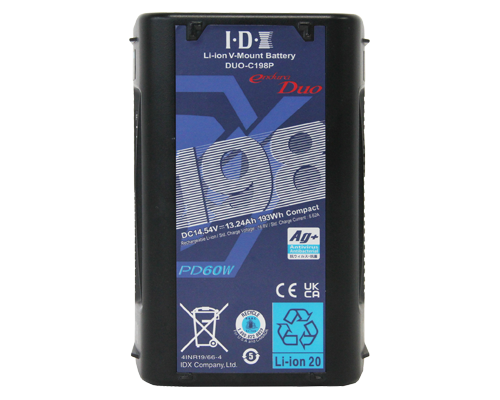

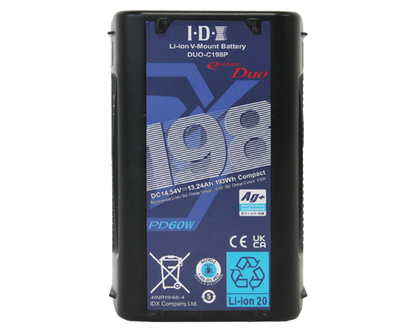

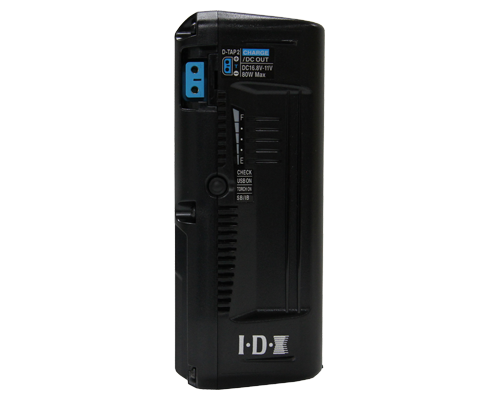

IDX DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery
IDX DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery
In stock
View full details
WhatsApp us for inquiries
Considering the complete platform, the DUO-C198P is the successor of the widely chosen DUO-C198 battery. Ideal space-efficient battery option for electronic cinema bodies and body stabilizer systems where long runtimes are needed. With the unit's ultra-robust 193Wh capacity and space-efficient 2.4lb configuration, the DUO-C198P can deliver mobile power to cine-style bodies such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P additionally incorporates two built-in D-Taps and now provides a USB-C port to power components as clearly as charge the battery. Additionally, V-Torch LED for use in dark settings and SMBus to screen battery info through viewfinder on bodies such as ARRI and RED.
Power your professional V-mount bodies such as the RED WEAPON or ARRI ALEXA Mini along with other professional devices with this DUO-C198P 193Wh High-Load Li-Ion V-Mount Battery from IDX Arrangement Technology. Featuring a V-mount, the space-efficient battery is only 2.3" thick, but packs a large 193Wh, 9.9Ah rating, delivering 14.54V to your equipment with a 14A highest draw. It is clearly suited for electronic cinema bodies and unit stabilizer systems where long runtimes are needed, and its battery files information displays in primary cameras' viewfinders.
purchase IDX battery packs today from
DUO-C198P Key capabilities
- Suitable for cinema camera productions that need a high-capacity battery in a small package
- The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
- V-Torch light for easy attachment to the plate
- Handles up to 14A loads
- Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
- USB Type-C output port with 60W PD fast charging input
- Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
- 5-LED battery life indicator
- Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
- Antiviral and antimicrobial body for hygienic peace of mind
IDX System Technology Endura DUO-CP Specs
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 9900 mAh / 193 Wh |
| Output Voltage | 14.5 VDC |
| Maximum Load | 154 W, 14 A (Peak) |
| Accessory Port | 1 x D-Tap Input/Output 80 W Regulated 1 x D-Tap Output 80 W Regulated 1 x USB Type-C Input/Output 60 W Regulated |
| Maximum Load (Accessory Port) | 80 W (D-Tap) 60 W (USB Type-C) |
| USB Output | 5 V, 3 A |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Charging Temperature | 32 to 104°F / 0 to 40°C |
| Discharging Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions (W x H x D) | 3.74 x 5.75 x 2.32" / 9.5 x 14.61 x 5.89 cm |
| Weight | 2.42 lb / 1.1 kg |
Key Features
- 14.54V 193Wh V-Mount Battery
- SMBus Data Info Displays in Viewfinder
- Handles up to 14A Loads
- Two 80W D-Tap Accessory Outputs
- D-Tap & USB PD Fast Charging Port
- Battery Circuit Protection
- V-Torch 5-LED Battery Life Indicator
- Compatible with UC-PD1 & VL-DT1 Chargers
