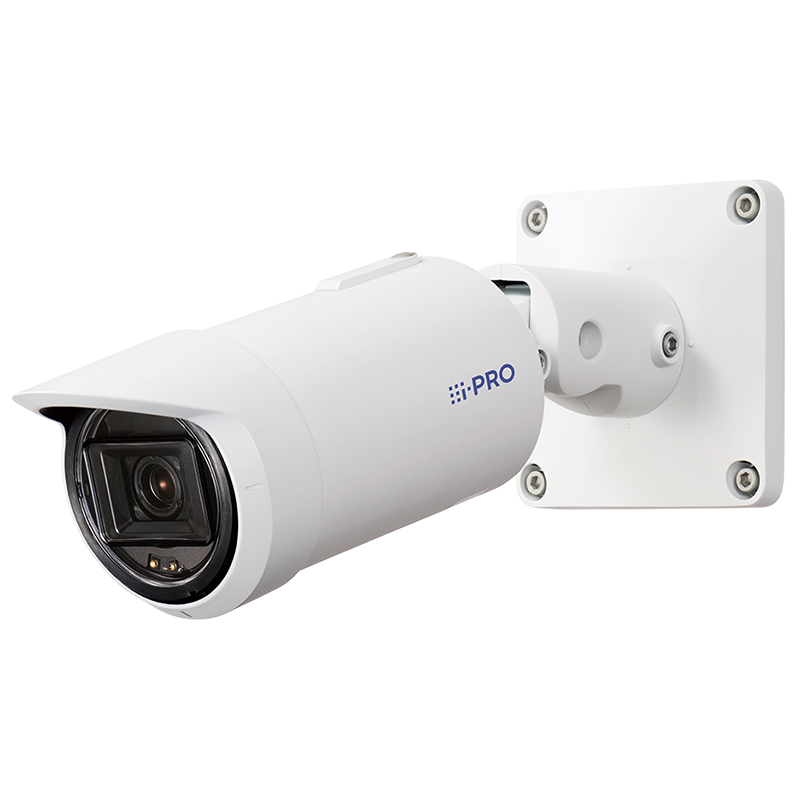

In this camera's design, the 5MP/6MP/4K varifocal optics version, a high-resolution installation camera joins the proven S-Series range.
Equipped with an AI processing engine, it can run up to three AI analytics uses (AI apps) simultaneously, which significantly enhance the recognition rate of people and vehicles and can be employed in numerous security monitoring scenes.
It produces clearer, high-quality images even in low-light and wide-range shooting scenes. Across the 34 released versions, including fixed focus, black chassis, smoke dome, and derivative versions such as heavy salt damage resistant versions, the range supports a wide variety of security observation applications.
3 AI Apps operation at identical time
multiple AI applications can run at the identical time from the wide variety.
Using an AI processing engine that classifies an object as a person or vehicle, the system will reduce false alarms compared to conventional version. As a result, it can serve many industries.
High picture quality / Elevated compression
Our existing smart coding architecture compatible with H.264 and H.265 produces high-resolution footage at high picture quality and low bit rate. Smart Auto improves subject visibility and produces more usable images.
Simple setting and installation
Simple Kitting Package enabling installation teams to set up cameras readily while limiting the device in the box.*
The grommet on the outdoor version can lower the time and effort needed for installation.
User-friendly GUI (setting whereas watching Live view, etc.) lets you configure comfortably.
iCT tool enables you to set several bodies, apps, and recorders all at once, reducing the body setting time.
*The kitting process should be done within one hour. The camera can overheat and malfunction.
Enhanced Security
Fitted with FIPS 140-2 level 3 certified hardware alongside the electronic certificate issued by a third party organization (Global Sign®).
| Weight | 2.4 kg |
|---|---|
| Dimensions | 38.3 × 13.3 × 13.3 cm |
| Image Sensor | Approx. 1/1.8 type CMOS image sensor |
| Shutter Speed | [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Dynamic Range | Max.132 dB (Super Dynamic : On, Level 31 |
| IR LED Light | 70 m {Approx. 230 ft} |
| Audio Detection | On / Off |
| AI Analytics | Yes |
| Optical Zoom | 2.0x (Motorized zoom / Motorized Focus) |
| Focal Length (f) | 2.9 – 9 mm |
| Audio | Yes |
Key Features
- 4K
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
- Smart Coding (with AI Engine)
- ClearSight Coating
- Built-in IR LED
