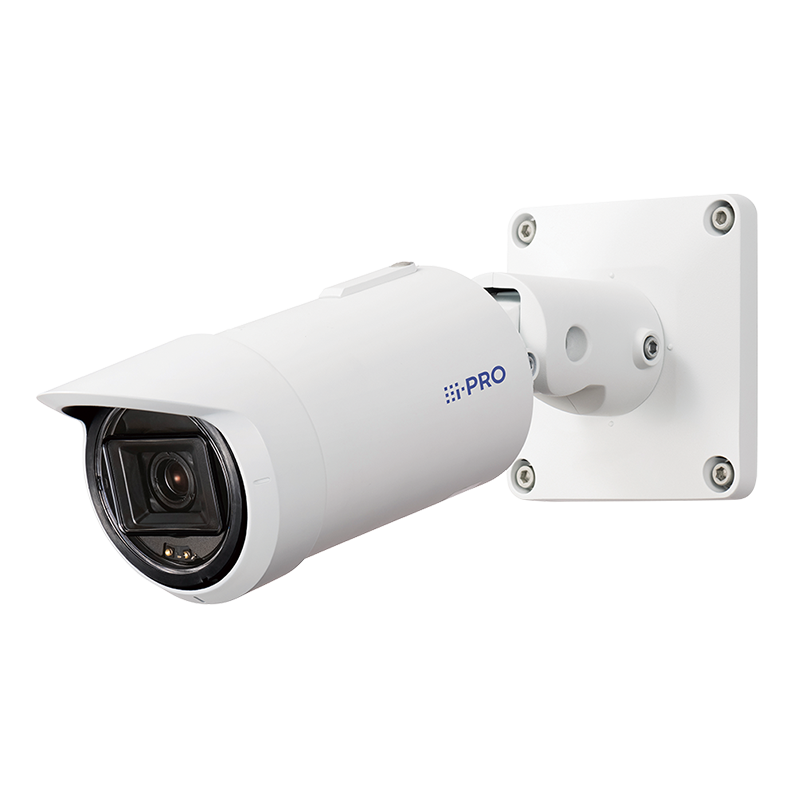

In its primary imaging role, the 5MP/6MP/4K varifocal optics version, a high-resolution installation camera joins the proven S-Series range.
The integrated processor runs three AI applications at once, improving vehicle and person recognition for a wide selection of surveillance locations.
It produces clearer, high-quality images even in low-light and wide-range shooting scenes. Across the 34 released versions, comprising fixed focus, black chassis, smoke dome, and derivative versions such as heavy salt damage resistant versions, the range supports a wide variety of security observation applications.
3 AI Apps operation at identical time
Select three suitable analytics from the application library for concurrent operation.
Using an AI processing engine that classifies an object as a person or vehicle, the system will reduce false alarms compared to conventional version. As a result, it can serve many industries.
High picture quality / Elevated compression
Our existing smart coding architecture compatible with H.264 and H.265 produces high-resolution footage at high picture quality and low bit rate. Smart Auto improves subject visibility and produces more usable images.
Simple setting and installation
Simple Kitting Package enabling installation teams to set up cameras readily while limiting the device in the box.*
The grommet on the outdoor version can lower the time and effort needed for installation.
User-friendly GUI (setting whereas watching Live view, etc.) lets you configure comfortably.
iCT tool permits you to set several bodies, apps, and recorders all at once, reducing the unit setting time.
*The kitting process should be done within one hour. The camera can overheat and malfunction.
Enhanced Security
Fitted with FIPS 140-2 level 3 certified hardware alongside the electronic certificate issued by a third party organization (Global Sign®).
| Weight | 2.4 kg |
|---|---|
| Dimensions | 38.3 × 13.3 × 13.3 cm |
| Image Sensor | Approx. 1/1.8 type CMOS image sensor |
| Dynamic Range | Max.132 dB (Super Dynamic : On, Level 31 |
| IR LED Light | 70 m {Approx. 230 ft} |
| Audio Detection | On / Off |
| AI Analytics | Yes |
| Focus Adjustment | Auto focus |
| Focal Length (f) | 2.9 – 9 mm {1/8 inches – 11/32 inches} |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio |
Key Features
- 4K
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
- Smart Coding (with AI Engine)
- Clear Sight Coating
- Built-in IR LED
- Heavy salt damage resistance specifications
