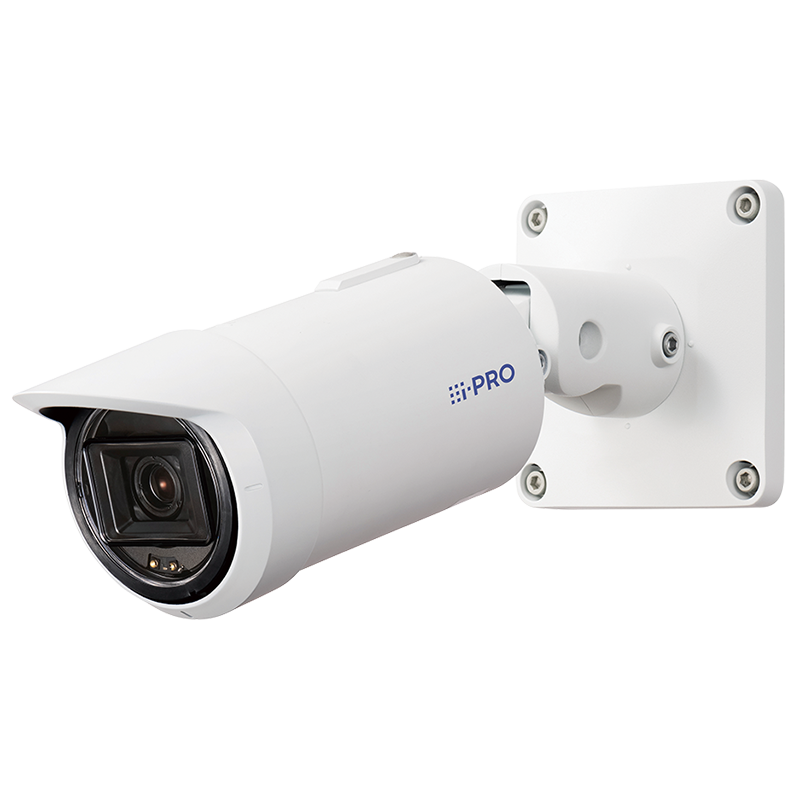

Across its imaging platform, the 5MP/6MP/4K varifocal optics version, a high-resolution installation unit joins the proven S-Series range.
Three AI analytics applications can operate together on the onboard processor, strengthening recognition of vehicles and people across varied monitoring environments.
It produces clearer, high-quality images even in low-light and wide-range shooting scenes. The broader 34-camera family covers fixed-focus optics, black housings, smoke domes, and heavy-salt-resistant derivatives for different security sites.
3 AI Apps operation at identical time
Choose three compatible analytics from the available application range and run them concurrently.
Using an AI processing engine that classifies an object as a person or vehicle, the system will reduce false alarms compared to conventional version.
As a result, it can serve many industries.
High picture quality / Elevated compression
Our existing smart coding architecture compatible with H.264 and H.265 produces high-resolution footage at high picture quality and low bit rate. Smart Auto improves subject visibility and produces more usable images.
Simple setting and installation
Simple Kitting Package enabling installation teams to set up cameras readily while limiting the device in the box.*
The grommet on the outdoor version can lower the time and effort needed for installation.
User-friendly GUI (setting whereas watching Live view, etc.) lets you configure comfortably.
iCT tool permits you to set several bodies, apps, and recorders all at once, reducing the camera setting time.
*The kitting process should be done within one hour. The camera can overheat and malfunction.
| Weight | 2.4 kg |
|---|---|
| Dimensions | 38.3 × 13.3 × 13.3 cm |
| Image Sensor | Approx. 1/1.8 type CMOS image sensor |
| Dynamic Range | Max.144 dB |
| IR LED Light | 70 m {Approx. 230 ft} |
| AI Analytics | Yes |
| Focus Adjustment | Auto focus |
| Optical Zoom | 2.0x (Motorized zoom / Motorized Focus) |
| Focal Length (f) | 4.3 – 8.6 mm |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
Key Features
- 6MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
- Smart Coding (with AI Engine)
- Clearsighted Coating
- Built-in IR LED
