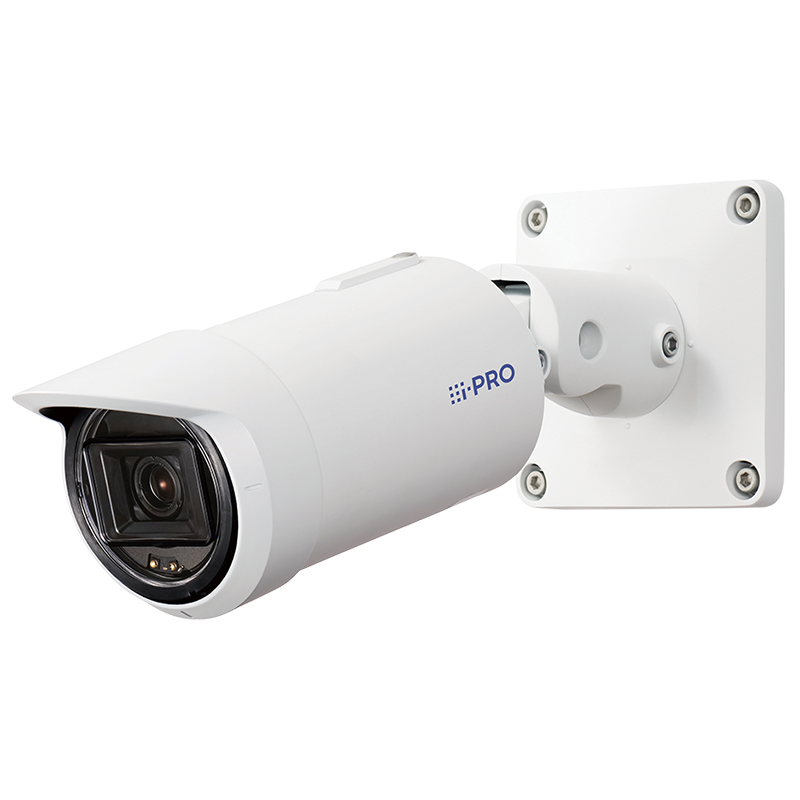

The WV-S1536LTNA advances outdoor monitoring by pairing sharper i-PRO imaging with
enhanced technology. Preloaded AI analytics identify people and vehicles accurately,
so intelligent surveillance can begin with minimal setup.
The Simple Kitting Packaging workflow keeps the unit boxed during configuration, making the
installation process faster, more orderly, and easier to repeat.
- Enhanced imaging and AI Smart Auto improve captured detail
- Built-in analytics recognize people and vehicles, with support for third-party applications
- External microphones enable detection of glass breaking, vehicle horns, yelling, and gunshots
- Simple Kitting Packaging lets installers configure the camera without removing it from the box
- The i-PRO Configuration Tool supports simultaneous setup of as many as 1024 cameras.
| Weight | 2.4 kg |
|---|---|
| Dimensions | 38.3 × 13.3 × 13.3 cm |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Dynamic Range | Max.144 dB (Super Dynamic : On, Level 31) |
| IR LED Light | 70 m {Approx. 230 ft} |
| Optical Zoom | 2.3x (Motorized zoom / Motorized Focus) |
| Focal Length (f) | 9 – 21 mm {11/32 inches – 13/16 inches} |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
Key Features
- 2MP (1080p)
- Intelligent Auto (with AI Engine)
- Super Dynamic 144dB
- Color night vision (0.011 to 0.015 lx)
- Smart Coding (with AI Engine)
- Clear Sight Coating
- Built-in IR LED
- Onvif Profile G / S / T / M
