Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor

A Closer Look at Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor

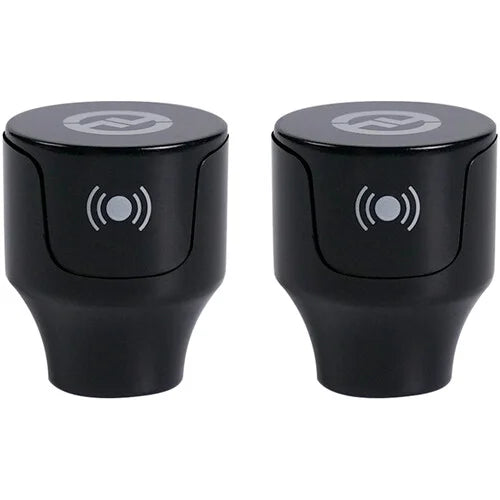

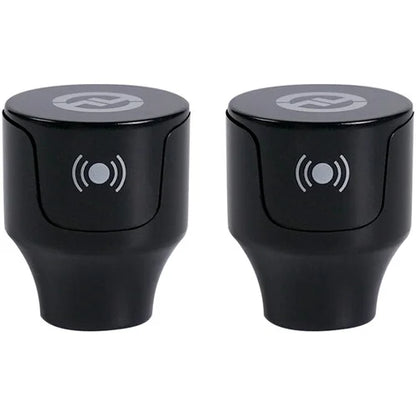

At the center of the specification, Enhance your wireless footage transmission experience with the space-efficient Hollyland Mars M1 Enhanced 5.5" Cable-free Transceiver Display from Hollyland. The Mars M1 Enhanced supplies new functionalities, including a capture/playback review feature allowing instant footage inspection for up to 2 minutes, and boasts a new low-profile capsule antenna configuration. The 5.5" touchscreen display provides a well-defined definition and 1000 cd/m² brightness, perfect for follow focus and director's observation. It serves as both a cable-free transmitter and receiver, enabling footage exchange between M1 units and with Mars 400S Pro, Mars 300 Pro, and Mars 4K transmitters/receiver units, spanning distances of up to 450'. You can additionally monitor material from the M1 Enhanced on smartphones and tablets through the HollyView app.
Supporting DCI/UHD 4K30 footage input via HDMI, the monitor incorporates an HDMI loop feed and a SDI source accommodating several broadcast drop-frame shot rates. The built-in HollyOS firmware provides multiple image-capture utilities such as scopes, peaking, and 3D LUT storage. The display can be powered through the built-in L-series battery plate or DC source, and it integrates a DC power feed for your camera or other hardware.

production Color Calibration Display

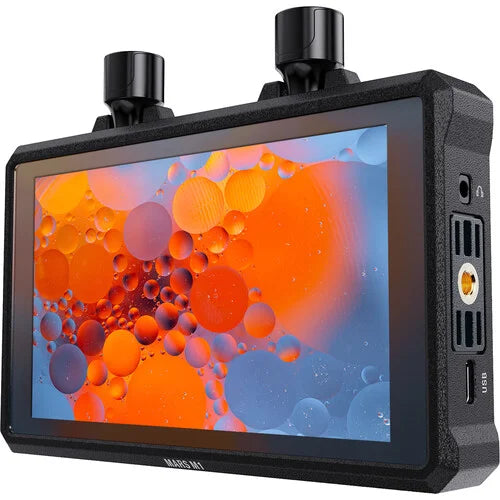

The Mars M1 Enhanced contains a 5.5" touch LCD display with a 1920 x 1080 definition and an notable brightness of 1000 cd/m². It undergoes professional colour calibration during production and provides multi-level colour temperature adjustments. The display adheres to the Rec. 709 colour gamut for notable color accuracy, integrates a 16:9 aspect ratio, and can screen 16.7 million lifelike colors.

Compatibility of Hollyland Mars M1: Guide

The Mars M1 Enhanced is a versatile all-in-one device, serving as both a transmitter and receiver. It facilitates transmission between two M1 units and is compatible with Mars 300 Pro, Mars 400S Pro, and Mars 4K versions, in asset to smartphones and tablets through the HollyView app.

Outputs of Hollyland Mars M1 and source connection

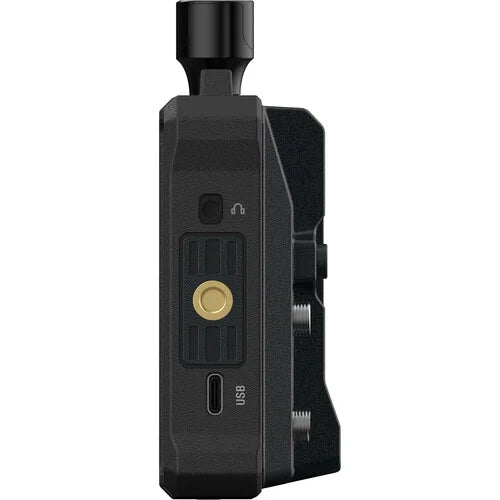

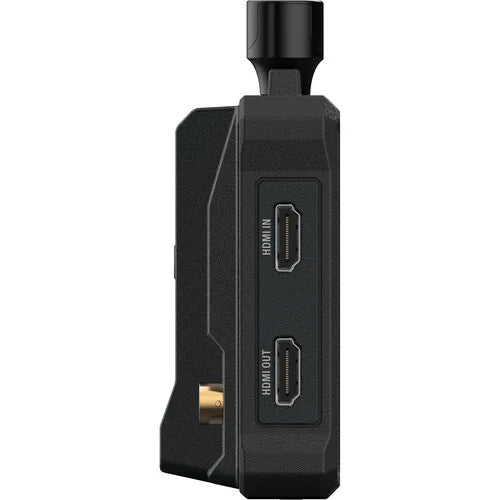

The Mars M1 Enhanced is fitted with an HDMI source, HDMI loop feed, a 3G-SDI source, and a 3.5mm headphone feed.

Practical Notes: Receive Videos Wirelessly through Hollyland Mars M1 and Transmit

The Mars M1 Enhanced supplies versatile interfacing by accommodating DCI/UHD 4K30 HDMI source and feed, expanding the unit's compatibility range. Its SDI function enhances shot rate flexibility, aligning with multiple broadcast and workflow standards across the workflow and post-production processes.

Playback operation on Hollyland Mars M1 and Recording

The Mars M1 Enhanced is developed for automated triggered capture and convenient footage playback. You can inspection your videos anytime and anywhere to maintain they are of the highest fidelity. The footage recording feature enables a maximum of two minutes of capture. Please note that the recorded footage cannot be exported and will be erased whenever the device is powered off or whenever a new capture begins.

3D LUT File Import: Guide

You have the option to choose from a selection of 3D LUT presets to calibrate the Mars M1 colors for a consistent, top-tier result. Additionally, you can upload your personalized LUTs.

Smart Channel Scan: Guide

Smart Channel Scan permits you to find the interference-free option for a stable link experience. The optimum channel is chosen automatically upon startup.

Wireless Range: Guide

Transmission range of Hollyland Mars M1 is up to 450.

Holly OS: Guide

Fueled by Hollyland's HollyOS working setup, the Mars M1 Enhanced introduces an extensive selection of enhanced monitoring features. These incorporate waveform, vectorscope, zebra pattern, aspect mark, anamorphic de-squeeze, crosshatch, and numerous others. Every of these utilities empowers you with accurate picture control, enabling you to configure every shot to your exact specifications.

powering Options of Hollyland Mars M1

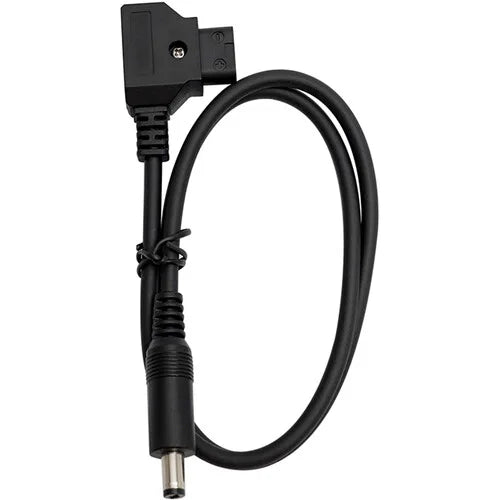

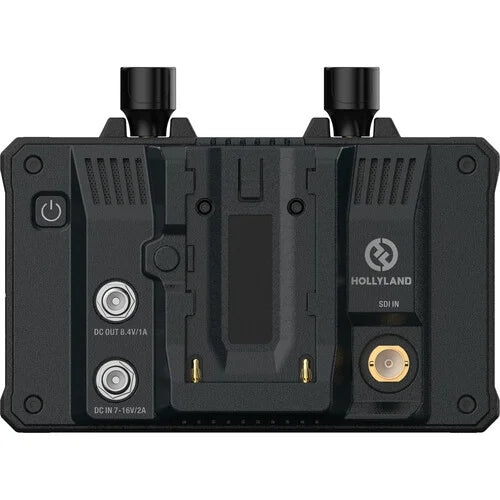

The Mars M1 Enhanced accommodates three distinct power sources: it can be powered with 7 to 16 VDC, L-series (NP-F970/750/550) battery packs (which are sold separately), or via a D-Tap link using an extra power supply.

Monitoring through Application: Guide

With the Hollyview app on Android and iOS, display transmissions on your mobile device. It permits transmission to apps and receiver units and reception from transmitters such as Mars 400S Pro or Mars 4K with the following options:

• One Mars M1 Enhanced TX can send signals to two other Mars M1 Enhanced RX sets.
• One Mars M1 Enhanced TX can send signals to one other Mars M1 Enhanced RX set and up to two devices with the HollyView app.
• One Mars M1 Enhanced TX can send signals to four devices using the HollyView app.
• One Mars M1 Enhanced TX can send signals to two other Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K RX units.
• One Hollyland Mars 400S Pro/Mars 300 Pro/Mars 4K TX unit can send signals to one Mars M1 Enhanced RX set and up to two devices with the HollyView app.

Fan Mode: Guide

The Mars M1 incorporates a built-in fan with the selection to choose Auto or Mute in the menu. Mute setting keeps the display working with lower fan noise eliminating affecting footage capture.

Buy Hollyland Mars M1 in Dubai.
