SKU: XA20sx8.5BERM-K3

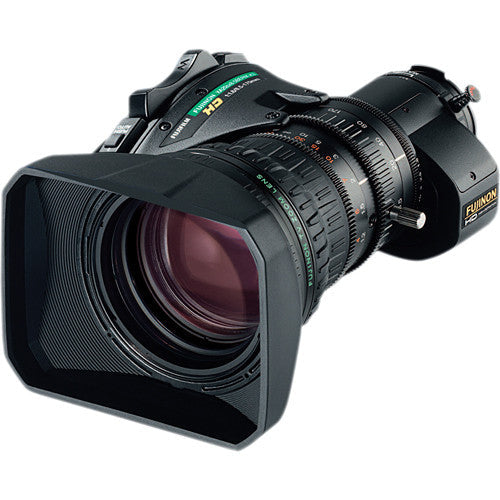

Fujinon XA20sx8.5BERM-K3 ENG Lens
Fujinon XA20sx8.5BERM-K3 ENG Lens
In stock
View full details
WhatsApp us for inquiries
Fujinon XA20sx8.5 Overview: Guide
For day-to-day surveillance, the Fujinon XA20sx8.5BERM-K3 ENG Lens is an 8.5-170mm lens, developed to deliver 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is additionally included.
Onboard focusing minimizes the effects of lens breathing, which maintains a more consistent focal length whenever adjusting focus. Fujinon's QuickZoom technology enhances zoom speed to 0.7 seconds end to end. Pressing one button sends QuickZoom rapidly to the telephoto end for a focus check; releasing it restores the previously chosen focal length.
- 8.5-170mm zoom lens with 20x zoom and 2x extender for 2/3" format
- Fast f/1.8 Max Aperture at 8.5-113mm and f/2.7 at 175mm
- Manual focus and digital servo zoom
- Innerfocus and QuickZoom technology
| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 8.5 to 170mm |
| Built-In Extender | 2x |
| Zoom Ratio | 20x |
| Angle of View |
16:9 Wide: 58.85 x 35.18° (H x V) Tele: 3.23 x 1.82° (H x V) |
| Maximum Aperture | f/1.8 to 2.7 |
| Focus Type | Manual Focus |
| Filter Thread | M82 x 0.75 mm |
| Minimum Focus Distance | From Camera Sensor: 3.61' / 1.1 m |
| Minimum Object Distance | 2.95' / 0.9 m |
| Dimensions | 39.75 × 35.56 × 29.34 cm |
| Weight | 2.79 kg |
Key Features
- 8.5-170mm for 2/3" Format
- 20x Zoom Ratio and 2x Extender
- Fast f/1.8 Max Aperture at 8.5-113mm
- Manual Focus and Servo Zoom
- Innerfocus and QuickZoom
