SKU: UA80X9BESM-S35

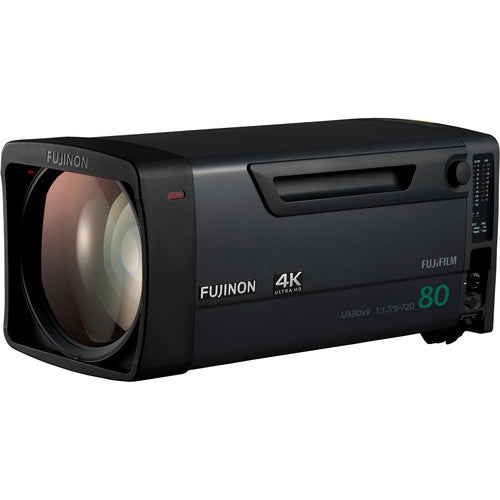

Fujinon UA80X9BESM 2/3" 80x Zoom 4K UHD Box Lens

Name: Fujinon UA80X9BESM 2/3" 80x Zoom 4K UHD Box Lens
Brand: FUJIFILM
SKU: UA80X9BESM-S35
Price: 862592.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

A Closer Look at Fujinon UA80X9

For this model, The Fujinon UA80X9BESM UA Series 80x Zoom 2/3" 4K UHD Lens is a portable broadcast zoom lens with optical performance compatible with 2/3" format 4K cameras. Covering a focal length range from 9mm in wide angle to 720mm in telephoto, the lightweight and space-efficient lens fits broadcast applications, such as live sport coverage, indoor/outdoor program production, and news reporting.

The floating focus system, which controls several lens groups according to the shooting distance, produces high-resolution and high contrast pictures from close-up to infinity, enabling 4K footage production.

Focal Length	9 to 720mm
Focal Length (with Extender)	2x: 18 to 1440mm
Zoom Ratio	80x 2/3"
Extender	2x
Maximum Relative Aperture (F-Number)	1:1.7 (9 to 350 mm) 1:3.5 (351 to 720 mm)
Minimum Object Distance (M.O.D.)	12.1' (3.7 m) From front of lens
Object Dimensions @ M.O.D. (16:9)	Without Extender: At 9 mm: 330.3 x 73.07" (330.3 x 185.6 cm) At 720 mm: 1.7 x 0.94" (43 x 24 mm) With 2x Extender: At 9 mm: 67.5 x 37.9" (171.4 x 96.3 cm) At 720 mm: 1.8 x 1.0" (4.6 x 2.6 cm)
Angular Field of View (16:9)	Without Extender: At 9 mm: 56°6' x 33°20' At 720 mm: 0°46' x 0°26' With 2x Extender: At 18 mm: 29°50' x 17°2' At 1440 mm: 0°23' x 0°13'
Filter Thread	M127 x 0.75 Filter attaches to the lens hood
Dimensions	10.2 x 10.4 x 24.0" (25.8 x 26.4 x 61.0 cm)
Weight	51.8 lb (23.5 kg) Without lens hood

Key Features

80x Zoom from 9mm in wide angle to 720mm in telephoto
High-precision vibration isolation/detection technology
Nine-blade iris for natural bokeh
Designed for use with 4K (UHD) resolution broadcast cameras
Focus position demand unit with 16-bit encoding for accurate focusing
Provides 4K optical performance from center to corner throughout the zoom range
Equipped with conventional zoom/focus demand
High-resolution, high contrast, and wide dynamic range across the entire zoom range
Compatible with most typical accessories used in TV broadcast operations
RoHS compliant
