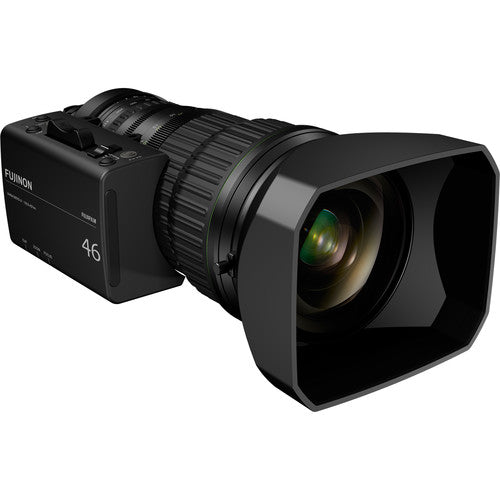

Fujinon UA46X9.5BERD 2/3" Wide 46x ENG 4K Lens
Fujinon UA46X9.5BERD 2/3" Wide 46x ENG 4K Lens
In stock
View full details
WhatsApp us for inquiries
A Closer Look at Fujinon UA46X9.5
At the point of image capture, The UA46x9.5BERD-U1 2/3" ENG 4K Lens from Fujinon is a wider 9.5-437mm zoom lens offering 4K capture in a portable broadcast form. Its high 46x zoom ratio doubles to 19-874mm whenever you engage its motorized 2x extender. The digital-servo UA46x9.5BERD-U1 contains a fast f/2 highest aperture, cutting-edge optical configuration with rich tonal gradation, and a 9-blade iris that produces natural-looking bokeh. The 4K Plus Premier series UA46x9.5BERD-G1 zoom makes available the selectable OS-TECH optical shift stabilization to compensate for the level of detected vibration, smoothing your longer shots. This version of the UA46X9.5BERD includes manual (not motorized) extender control.
Wider, Portable 4K Broadcast optics
The UA46x13.5BERD supplies a high 46x zoom ratio and a wider focal range of 9.5-437mm in a portable 4K broadcast form and incorporates a 2x manual extender.
Imaging Performance
The cutting-edge optical configuration produces optimal 4K imagery with rich tonal gradations.
OS-TECH: Guide
The OS-TECH optical picture stabilization system compensates for vibration, helping to maintain a stable picture even while shooting in high winds or from a platform.
Servo Operation
The high-performance servo drive unit supplies comfortable, ergonomic operation.
Bokeh Rendering
A 9-blade iris creates natural-looking bokeh effects.
| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 9.5 to 437mm With Extender: 19 to 874mm |
| Built-In Extender | 2x (Manual) |
| Zoom Ratio | 46x |
| Angle of View |
Wide: 1.3 x 0.7° (H x V) Tele: 53.6 x 31.7° (H x V) With 2x Extender: Wide: 0.6 x 0.4° (H x V) Tele: 28.3 x 16.1° (H x V) |
| Maximum Aperture | f/2 to 3.9 With Extender: f/4 to 7.8 |
| Focus Type | Servo |
| Iris Type | Servo |
| Macro | Yes |
| Minimum Object Distance | 9.1 ft / 2.8 m Macro: 2.4 in / 6 cm |
| Optical Image Stabilization | No |
| Certifications | CAN-ICES-3(B)/NMB-3(B), FCC-Class B, IEC-003 |
| Dimensions | — |
| Weight | 5.8 kg |
Key Features
- 9.5-437mm Lens for 2/3" Cameras
- 46x Zoom Ratio with Manual 2x Extender
- OS-TECH Image Stabilization System
- 9-Blade Iris for Natural Bokeh
- Rich Tonal Gradation, 4K Imaging
- Macro Function, Anti-Vibration Tech
