SKU: UA22X8BERD-S8

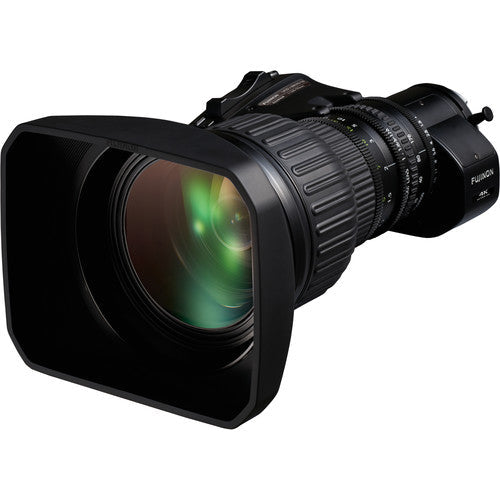

Fujinon UA22x8BERD 2/3" 4K UHD Tele ENG Lens

Name: Fujinon UA22x8BERD 2/3" 4K UHD Tele ENG Lens
Brand: FUJIFILM
SKU: UA22X8BERD-S8
Price: 128782.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

A Closer Look at Fujinon UA22X8

Starting with the optical platform, The Fujinon UA22x8BERD UA Series 22x Zoom 2/3" 4K UHD Tele ENG Lens is a portable broadcast telephoto zoom lens with optical performance compatible with 2/3" format 4K cameras. Covering a focal length range from 8mm in wide angle to 176mm in telephoto, the lightweight and space-efficient lens is intended for broadcast applications comprising live sport coverage, indoor/outdoor program production, and news reporting.

The floating focus system, which controls several lens groups according to the shooting distance, produces high-resolution and high contrast pictures from close-up to infinity, enabling 4K footage production.

Focal Length	8 to 176mm
Focal Length (with Extender)	2x: 16 to 352mm
Zoom Ratio	22x
Extender	2x
Maximum Relative Aperture (F-Number)	1:1.8 (8 to 124 mm) 1:2.55 (176 mm)
Minimum Object Distance (M.O.D.)	2.8' (0.9 m) From front of lens
Object Dimensions @ M.O.D. (16:9)	Without Extender: At 8 mm: 35.6 x 20.0" (905 x 509 mm) At 176 mm: 1.7 x 0.94" (43 x 24 mm) With 2x Extender: At 16 mm: 18.6 x 10.4" (472 x 265 mm) At 352 mm: 0.87 x 0.47" (22 x 12 mm)
Angular Field of View (16:9)	Without Extender: At 8 mm: 61°52' x 37°14' At 176 mm: 3°7' x 1°45' With 2x Extender: At 16 mm: 33°22' x 19°7' At 352 mm: 1°34' x 0°53'
Filter Thread	M127 x 0.75 Filter attaches to the lens hood
Dimensions	48.01 × 36.32 × 33.02 cm
Weight	4.04 kg Without lens hood

Key Features

22x Zoom from 8mm in wide angle to 176mm in telephoto
Nine-blade iris for natural bokeh
Designed for use with 4K (UHD) resolution broadcast cameras
Focus position demand unit with 16-bit encoding for accurate focusing
Provides 4K optical performance from center to corner throughout the zoom range
High-resolution, high contrast, and wide dynamic range across the entire zoom range
Compatible with most typical accessories used in TV broadcast operations
RoHS compliant
