DJI Focus Pro All-In-One Combo: Guide

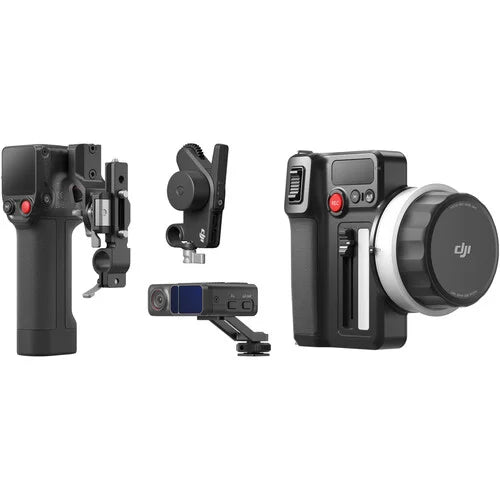

From the sensor onward, the DJI Focus Pro All-In-One Combo is a diverse solution developed to deliver accurate FIZ (Focus, Iris, Zoom) control for manual camera lenses. The kit combines the LiDAR module, Focus Pro Motor, Focus Pro Grip, and Hand Unit to improve autofocus precision and provide command of increased distances. All these components are conveniently housed in a carrying case, maintaining easy transportation to your next filming location.

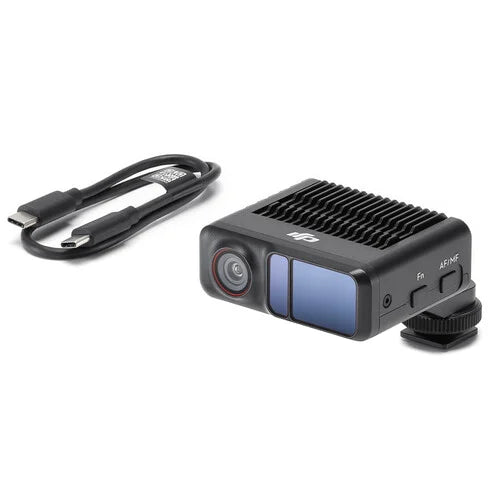

DJI Focus Pro LiDAR: Guide

Tailored for compatibility with both the RS 3 Pro and RS 4 Pro gimbal stabilizers, the DJI Focus Pro LiDAR unit simplifies smart autofocus operations, particularly beneficial for solo cinematographers. Featuring an expanded range of 76,800 ranging points, a swift 30 Hz refresh rate, and a maximum detection range of 65.6', this LiDAR unit excels in focusing on moving subjects. Its versatility extends to accommodating a range of lens configurations, from wide-angle to telephoto.
Equipped with a built-in camera boasting a 30mm focal length equivalent and a 70° field of view, the unit maintains precise focus accuracy. Operators can seamlessly switch between wide-angle, telephoto, and focus spot settings to suit diverse shooting requirements. Enhanced tracking functions, such as ActiveTrack Pro, are unleashed whenever paired with the RS 4 Pro gimbal, optimizing recognition and tracking performance, especially for distant or several subjects. The LiDAR unit can be easily mounted onto RS 3 or 4 Pro series gimbals or cameras via cold shoe or 1/4"-20 thread, drawing power via a USB-C cable.

Autofocus Functionality: Guide

Whenever combined with the Focus Pro Motor, the LiDAR unit permits autofocus operation with compatible lenses. Leveraging its extensive range of 76,800 ranging points inside a 1.6 to 65.6' area, users can achieve accurate autofocus control. Additionally, the built-in camera with a 30mm equivalent focal length and a wide 70° field of view caters to a broad range of focusing scenarios.

Enhanced AutoTrack Pro: Guide

The upgraded ActiveTrack Pro, featured in the Focus Pro LiDAR Autofocus, now directly accesses pictures from the camera embedded inside, eliminating the need for the Ronin Picture Transmitter. With ActiveTrack Pro, observation or framing the subject becomes seamless on the OLED touchscreen of the RS 4 Pro. Even if the subject momentarily disappears from view, the LiDAR unit swiftly reacquires focus.

User-Friendly Modes: Guide

• Tracking: Identify and track up to five subjects simultaneously, selecting one for continuous monitoring.
• Smart Object Identification: Distinguishes between humans and vehicles.
• Flex Spot: Engage focus lock by framing the subject and pressing the gimbal trigger; autofocus is supported.
• Wide: Automatically detects subjects and maintains focus; compatible with both autofocus and ActiveTrack functionalities.

Compatibility: Focus Pro Motor

Utilize the USB-C data port to connect the LiDAR unit with the Focus Pro Motor for cinematic autofocus functions post-calibration. Effortlessly toggle between manual and autofocus settings by pressing the M button on the gimbal.

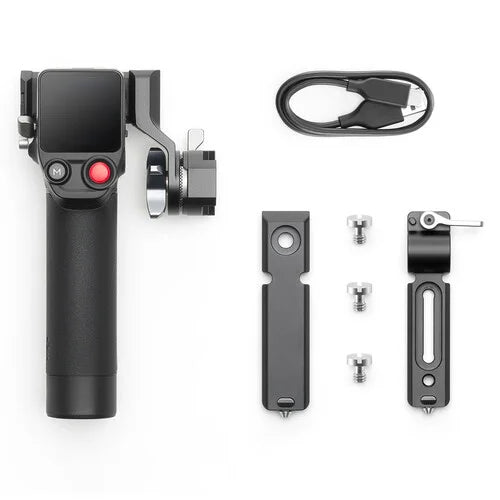

DJI Focus Pro All-In-One Combo also includes DJI Focus Pro Grip: Guide

Mount the DJI Focus Pro Grip onto either side of your DJI R3 Pro or RS 4 Pro gimbal to take charge of your Focus Pro Motor setup for accurate FIZ (Focus, Iris, Zoom) control. Featuring a built-in 1.8" touchscreen display, front dial, setting button, and capture buttons, the grip supplies intuitive handling of camera and lens operations. Activating the Autofocus (AMF) setting toggles autofocus, synchronizing the front dial's rotation to visually monitor focus status on the monitor and feel tactile feedback. Switching between manual and autofocus settings is straightforward.
The grip incorporates three USB-C ports to permit communication between the Focus Pro LiDAR unit, Focus Pro Motor, and your camera. Wireless interfacing via 2.4 GHz and Bluetooth enables seamless transmission. Utilize the built-in NATO clamp and provided adapters to affix the grip onto either side of your gimbal setup. With a built-in battery, the grip sustains operation for up to 2.5 hours and allows PD fast charging via the USB-C port.

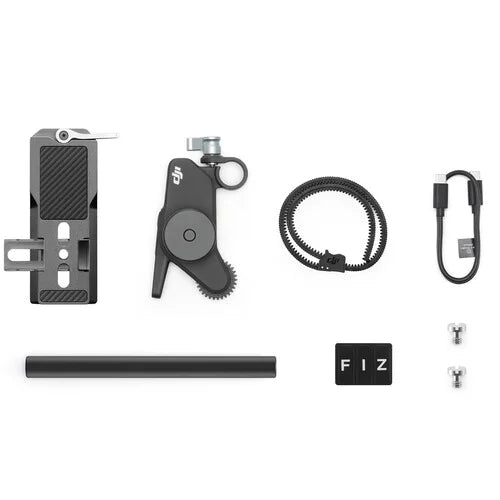

DJI Focus Pro Motor is Included in DJI Focus Pro All-In-One Combo: Guide

Enhance your camera setup on compatible RS gimbal stabilizers with the DJI Focus Pro Motor, delivering accurate control over focus, iris, or zoom functions. This updated motor boasts a 30% speed boost compared to its predecessor, featuring 300 gear teeth and 10ms low latency. Control the motor wirelessly via 2.4 GHz transmission technology from distances of up to 524.9'.
In zoom control setting, the Focus Pro executes Power Zoom for PZ lenses, Detailed Image Zoom, and outboard focus motor zoom for refined focusing. Its revamped 15mm rod mount maintains broader compatibility with numerous camera mounting configurations. Pairing two Focus Pro Motors with the DJI RS 4 Pro permits convenient focus adjustment through the gimbal's onboard dial and zoom control via the onboard joystick, streamlining lens control operations.

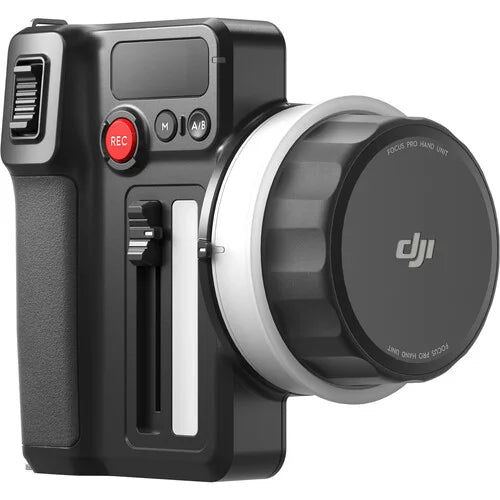

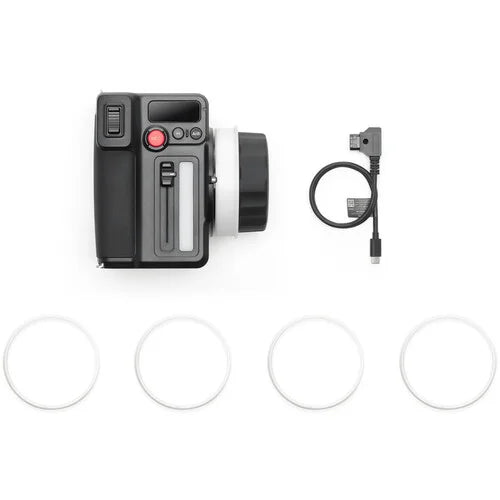

DJI Focus Pro Hand Unit: Guide

Employ the DJI Focus Pro Hand Unit to streamline FIZ control over your manual lenses in conjunction with the Focus Pro Motor and RS 3/4 Pro gimbal stabilizer. Utilizing built-in 2.4 GHz technology, you can manage the Focus Pro Motor from distances of up to 524.9'. Activating AMF setting triggers autofocus, prompting the focus knob to rotate synchronously, enabling cinematographers to visually monitor focus status on the screen and via tactile cues. Seamless toggling between manual and automated settings enhances operational fluidity.
The A-B electronic marking points supply tactile feedback for endpoints and facilitate step-less damping adjustment, preserving precise focusing. Additionally, the unit permits camera capture toggling via Bluetooth interfacing. A 1.09" touchscreen display conveniently showcases current settings. Power is supplied to the hand unit via a NP-F550 battery.
