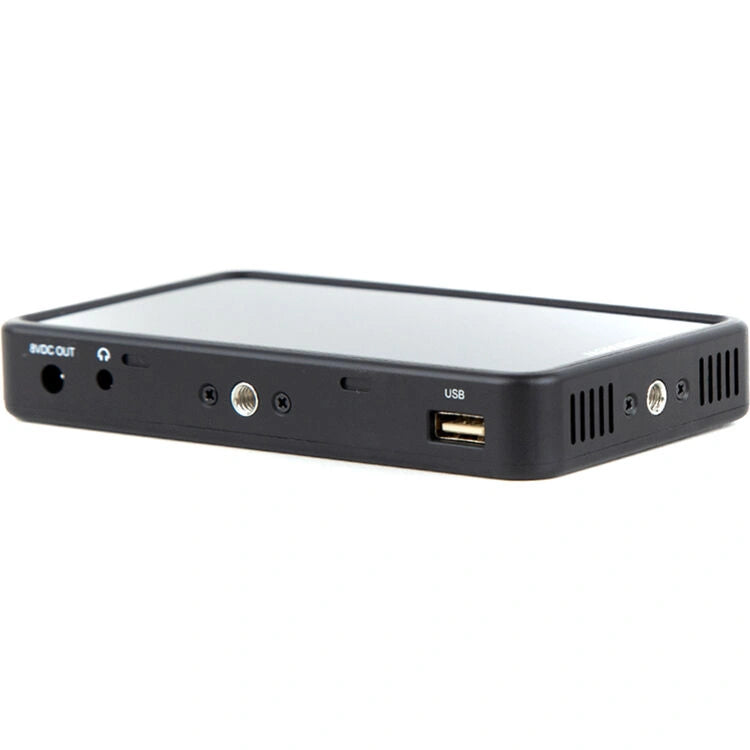

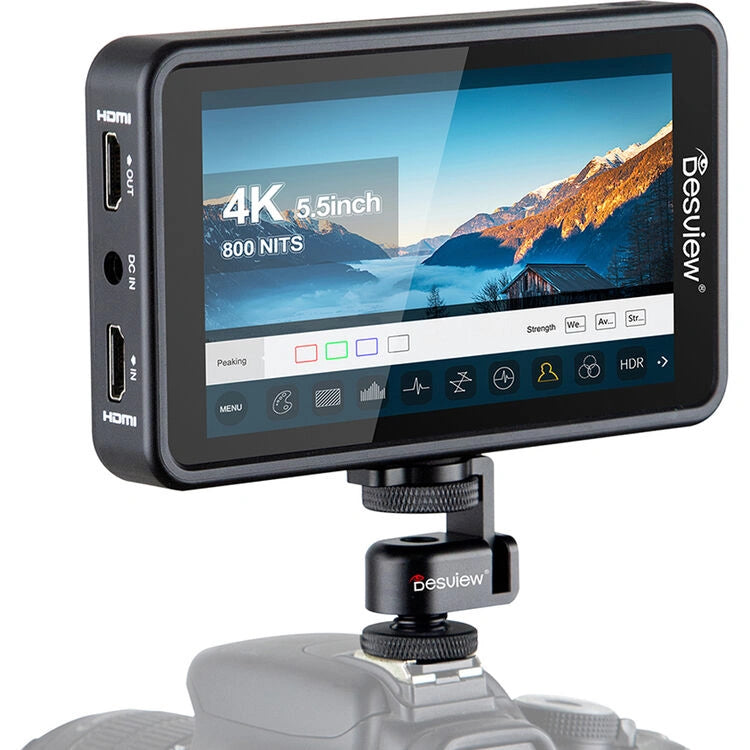

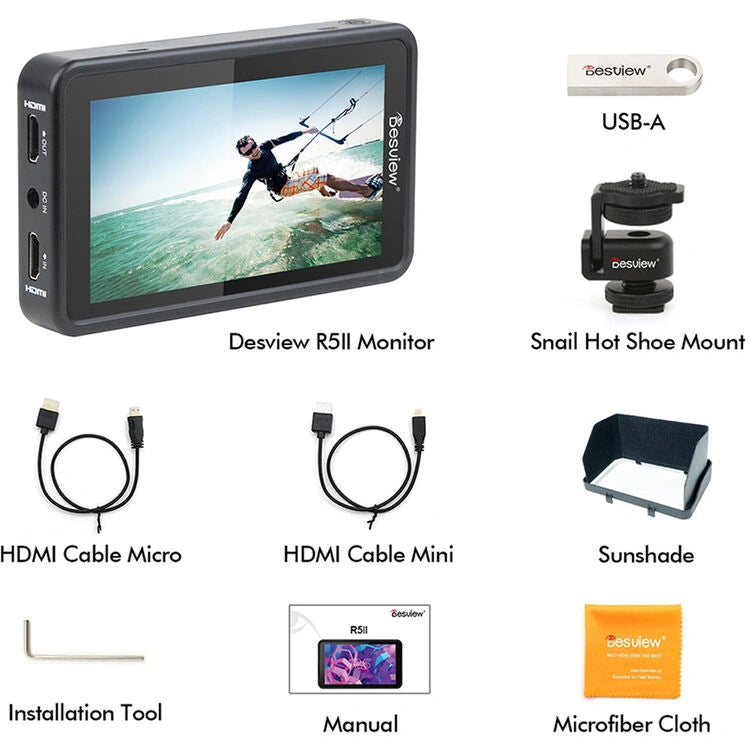

Compact and easy to carry, the R5II 5.5" On-Camera Touch Monitor from Desview provides a bright 800 cd/m² panel, a wide 178° viewing angle, and 1920 x 1080 screen resolution. Its extensive collection of practical functions includes touchscreen operation and pinch-to-zoom control. The R5II accepts signals up to DCI 4K24 through its HDMI input and supplies an HDMI loop output. A 3.5mm headphone connection is also available, while the USB input lets you import custom 3D LUTs from the included USB thumb drive.

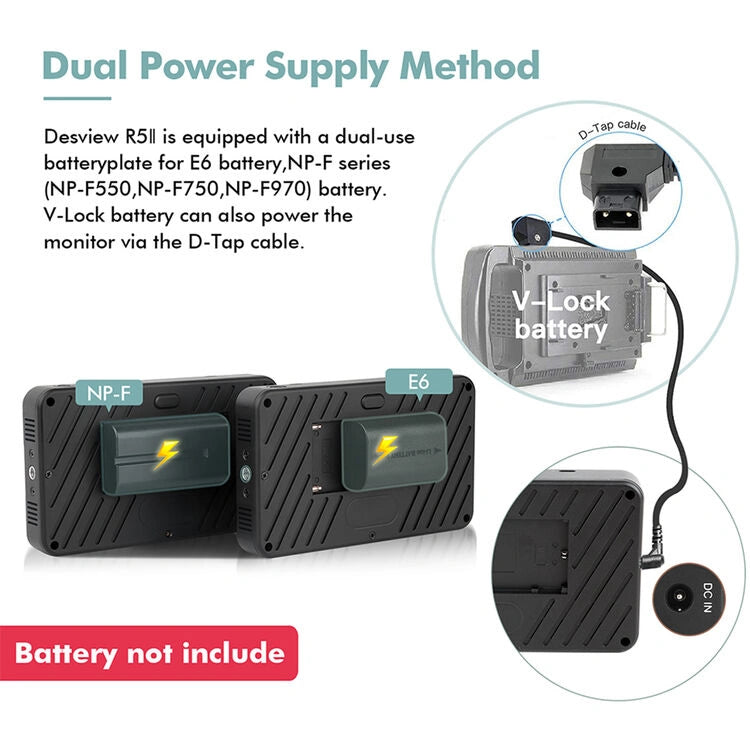

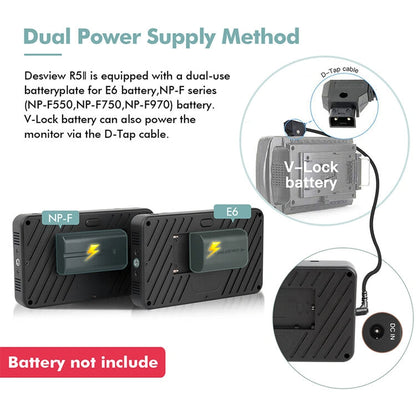

HGL and PQ modes are included for HDR monitoring, along with 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x anamorphic de-squeeze settings. The multipurpose battery slot behind the panel accommodates either Sony NP-F-style batteries or Canon LP-E6 batteries.
Key Features
Daylight-ready 5.5" touchscreen camera monitor delivering 800 cd/m² brightness.
Thin, low-weight body built around a touchscreen IPS LCD panel.
HDMI input compatibility extends up to DCI/UHD 4K30 video.

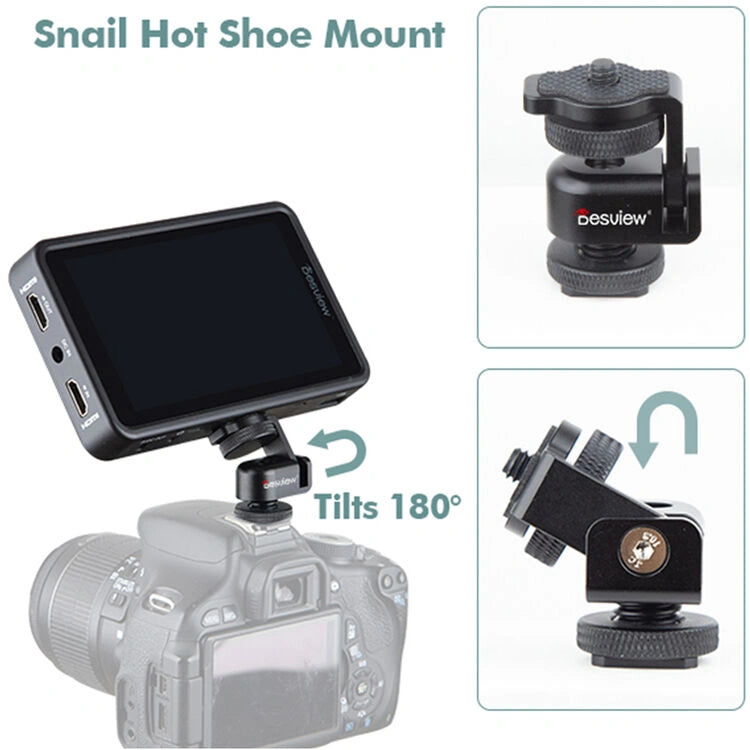

Two 1/4"-20 mounting sockets are positioned on the monitor’s side and bottom.
Touch Controls
The 5.5" touch panel combines a 1920 x 1080 resolution with a 16:9 aspect ratio. All monitor functions can be managed by tapping with one finger, and gesture support includes pinch-to-zoom for closely inspecting image details and every corner of the frame.
With 800 cd/m² of brightness, the screen remains clearly visible while shooting in bright outdoor environments.
Monitoring Tools
Pixel-level pinch zoom
Aspect ratios: Preset or custom
Anamorphic de-squeeze options: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flipping: Automatic and manual
Image rotation: Automatic and manual
Color focus assistance with adjustable intensity and style
Peaking with variable intensity
False color
Customizable zebra
Waveform: Luma and RGB, with customizable region-of-interest highlighting
Vectorscope
Customizable RGB parade
Histogram: Luma and RGB
USB storage device support for LUT importing
On-screen audio meters
Aspect ratios: Preset or custom
Anamorphic de-squeeze options: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flipping: Automatic and manual
Image rotation: Automatic and manual
Color focus assistance with adjustable intensity and style
Peaking with variable intensity
False color
Customizable zebra
Waveform: Luma and RGB, with customizable region-of-interest highlighting
Vectorscope
Customizable RGB parade
Histogram: Luma and RGB
USB storage device support for LUT importing
On-screen audio meters
