Designed for portable camera rigs, the lightweight P5II 5.5" HDMI On-Camera Monitor from Desview combines an 800 cd/m² display with a 160° viewing angle and 1920 x 1080 resolution. The P5II uses physical button controls, supports HDR, and accepts video up to DCI 4K24 through its HDMI input while providing an HDMI loop output. It also includes a 3.5mm headphone connection and a USB port for importing as many as 64 custom 3D LUTs with the supplied USB thumb drive. Anamorphic de-squeeze settings cover 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x ratios. Power can be supplied by one Sony NP-F-type battery or through the DC barrel input, and a DC barrel output is also provided.
Compact, Lightweight Build
- Portable 5.5" camera monitor producing 800 cd/m² brightness.
- HDMI accepts video signals at resolutions up to DCI/UHD 4K30.
- Anamorphic de-squeeze ratios: 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x.
Physical Control Interface
- The 5.5" display provides button-based operation and a 1920 x 1080 resolution.
- Available aspect-ratio selections are 16:9, 16:10, and 4:3.
Flexible 1/4"-20 Installation
- Side and bottom 1/4"-20 threads offer two monitor mounting positions.
- A cold-shoe-to-1/4"-20 screw adapter is supplied.
Available Power Methods

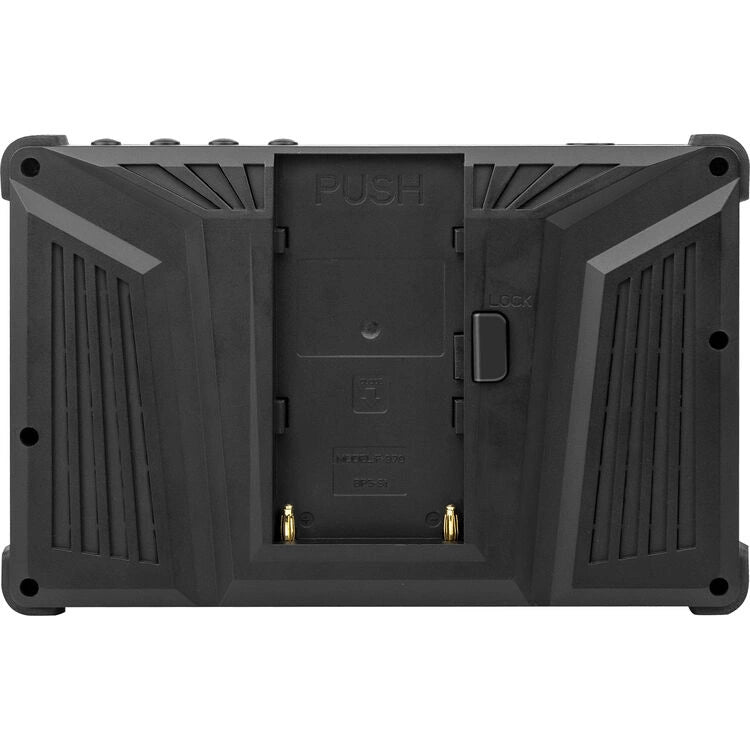

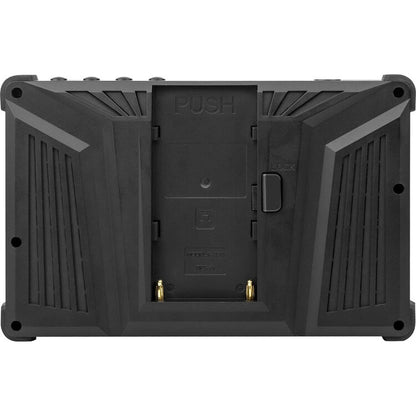

- Run the P5II from its built-in plate using a separately available Sony L-Series-type battery.
- Alternatively, connect a separately available power adapter to the 5.5/2.1mm DC barrel input.
