SKU: D24-HDR

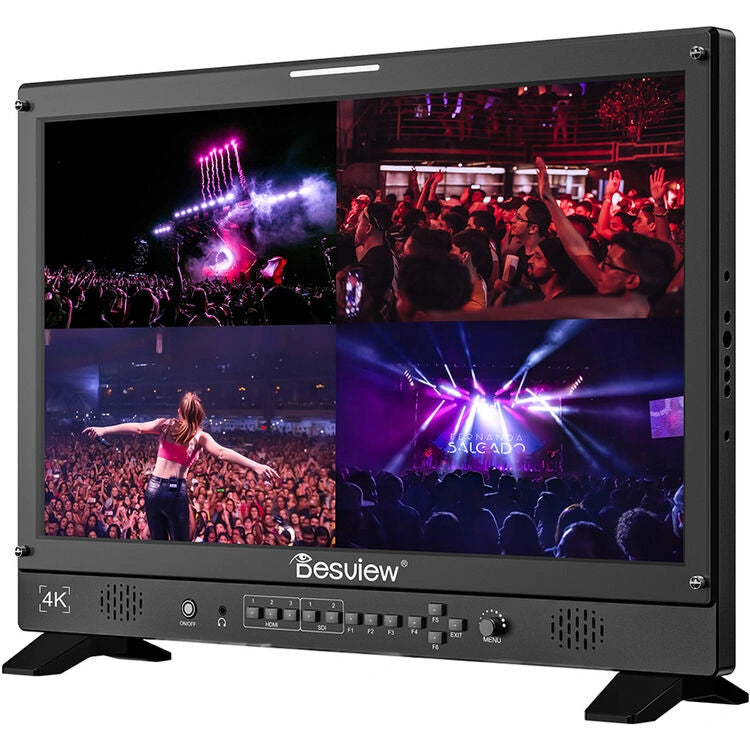

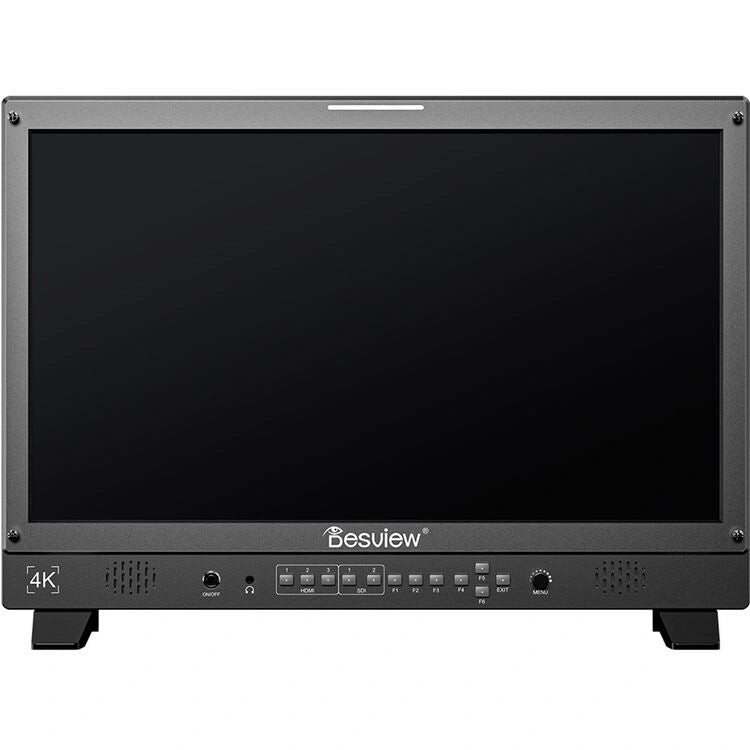

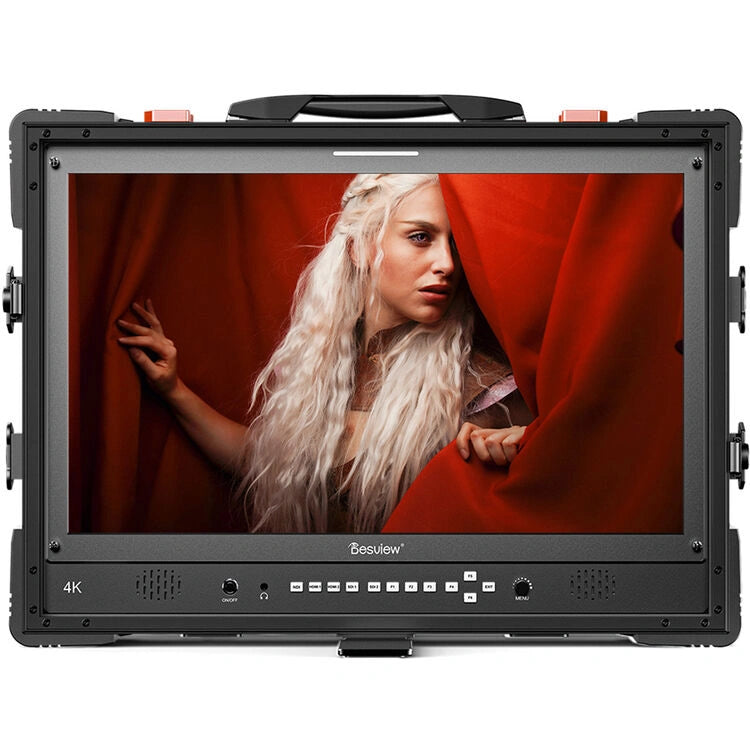

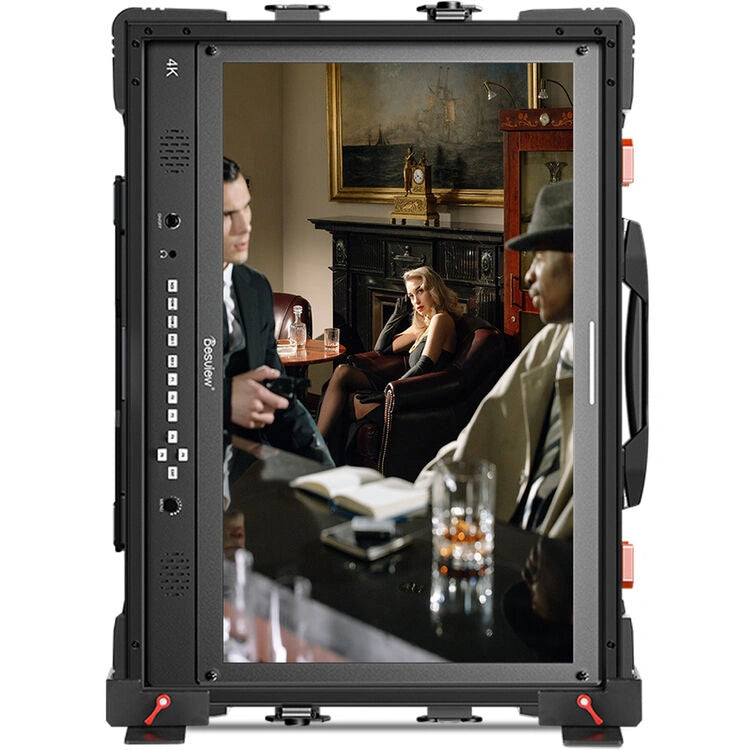

Desview 23.8" Director Monitor with Protector Case

Desview 23.8" Director Monitor with Protector Case

In stock

View full details

Built for broadcast, location production, and cinema monitoring, the 23.8" Monitor with Protector Case from Desview combines a rugged protective case with a bright 4K HDR screen. Its 23.8" panel delivers a 3840 x 2160 resolution, 400 cd/m² brightness, and a 1000:1 contrast ratio for crisp, detailed images. The 3G-SDI, HDMI, and USB inputs accommodate video up to 4K60, while 3G-SDI and HDMI outputs can route signals to additional equipment, including other monitors and switches.

Multiview monitoring lets you arrange two, three, or four images on the screen. Additional capabilities include waveform analysis, a tally indicator, picture-in-picture display, a 178° viewing angle, headphone connectivity, front-facing speakers, and horizontal or vertical orientations suited to social media material. Power can be supplied through the 4-pin XLR adapter, a conventional AC connection, or the rear V-mount battery plate. The included safety case shields the monitor during field use and transportation.


Key Specs

Display Size
23.8" / 60.5 cm
Native Resolution
3840 x 2160
Touchscreen
No
HDR Support
Yes
Media/Memory Card Slot
No
Wireless
No
Video Format
HDMI
DCI 4K: 60
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 60/59.94
Battery
1x V-Mount on Fixed Plate

Display

Panel Type
LCD
Display Size
23.8" / 60.5 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
400 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
Yes
Color Gamut
99.5% DCI-P3
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra

Inputs/Outputs

Video I/O
2x BNC (3G-SDI) Input
2x HDMI 2.0 Input
1x USB-A Input
2x BNC (3G-SDI) Output
1x HDMI 2.0 Output
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x Barrel (24 VDC) Input
Other I/O
1x RJ45 (Tally) Input
Media/Memory Card Slot
No

Wireless

Wireless
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No

Format Support

Video Format
HDMI
DCI 4K: 60
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p

SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 60/59.94

Power

Battery
1x V-Mount on Fixed Plate

Mounting

VESA Mounting-Hole Pattern
Unspecified VESA Pattern

General

Environmental Resistance
No
Operating Conditions
12 to 92°F / -20 to 60°C
Storage Conditions
-22 to 158°F / -30 to 70°C
Weight
32.80 lb / 14.88 kg

Packaging Info

Package Weight
40.705 lb
Box Dimensions (LxWxH)
27.8 x 20.7 x 10"

Key Features

  • 23.8" 3840 x 2160 HDR Display
  • 3G-SDI & HDMI In/Out, USB Input
  • PIP, Dual, Triple & Quad Multiview
  • Horizontal & Vertical Display Modes
  • Protective Case
  • 400 cd/m² Brightness
  • Waveform Tools, 1000:1 Contrast
  • 3.5mm Headphone Jack, Speakers
