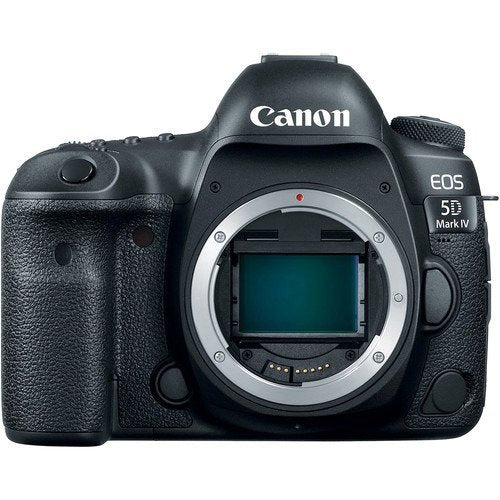

Canon EOS 5D Mark IV Body with Canon Log

Continuing on in their legacy of capable workhorse cameras, Canon has released the 5D Mark IV DSLR which is an outstanding still photography option and an able 4K-capable footage machine.
This multimedia maven provides a recently developed 30.4MP full-frame CMOS imager paired with the DIGIC 6+ picture processor in order to equilibrium fine detail and definition with low-light performance and rating.
It is able to work inside a native selection of ISO 100-32000, which can then be expanded to an notable ISO 50-102400, for well-defined, low-noise pictures in a range of situations.
Along with these improvements to picture quality, operators will enjoy a performance boost across the board with an enhanced AF platform, built-in Wi-Fi, NFC, and GPS, and much more.
In order to produce detailed pictures quickly and effectively the 5D Mark IV leverages the power of the DIGIC 6+ picture processor, which can accommodate up to 7 frames per second during uninterrupted shooting.
It additionally uses a 150,000-pixel RGB+IR metering imager to evaluate the scene and people or objects for accurate exposures under a selection of distinct lighting situations.
An improved 61-position Elevated Density Reticular AF furthers the camera's responsiveness by following and locking onto people or objects quickly and accurately for tack well-defined photos.
A new AF area choose button is now provided as well for near immediate availability to this setting.
Footage benefits from the asset of Dual Pixel CMOS AF and Movie Servo AF to smoothly rack concentrate during a attempt.
Shooters can even make use of the 3.2" 1.62m-dot touchscreen LCD to simply tap to refine the focus point.
Furthermore, currently that the body has DCI 4K (4096 x 2160) footage capture at up to 30 fps, operators can snag 8.8MP stills from the footage for an even faster acquisition option.
Tied into the Dual Pixel imager architecture is a brand new function for Canon: Dual Pixel RAW, which supports fine tuning of certain picture parameters, comprising bokeh shift and concentrate micro adjustment, after the picture is taken.
The chassis has been additional refined for comfort and ease of availability, as well as durability and conditions resistance.
The Canon N3 off-site port has been relocated to the front of the capture device body and they deliver added both GPS and Wi-Fi with NFC to make this version a connected camera.

DIGIC 6+ visual Processor and 30.4MP Full-Frame CMOS Sensor

In range with previous members of the main 5D range, the Mark IV attempts to equilibrium high definition with low-light performance with a recently developed 30.4MP full-frame CMOS sensor.
This delivers a beneficial increase in overall definition without reducing on rating.
Additionally, thanks to the DIGIC 6+ picture processing engine it is paired with, it provides impressive performance inside a native selection of ISO 100-32000, which can be expanded to ISO 50-102400.
Adaptability is principal with the 5D, as it requirements to be able to tackle landscapes and wedding work with equal ease.
by through a 150,000-pixel RGB+IR metering imager shooters will be able to more comfortably rely on the body to capture difficult scenes.
This sensor additionally has face recognition as well as flicker recognition which can maintain proper light levels in less-than-ideal lighting situations.
Along with this, the device supplies an improved uninterrupted shooting rate of 7 fps, making it a great option for productions and action.

Practical Notes: Dual Pixel CMOS AF Systems and High Density Reticular AF

Helping ensure your subject is tack well-defined, the 5D Mark IV integrates an enhanced Elevated Density Reticular AF system, which provides 61 phase-detect points, with all points sensitive to f/8 and 41 of which are cross-type.
The center position continues working down to -3 EV for working in extremely dim lighting.
Compared to previous versions, this imager has expanded vertical production of 24% on the peripherals and 8% in the center in order to better track and locate people or objects in the shot.
In addition to enhanced tracking and focusing whereas using the optical finder for stills, Live See and footage can currently use Dual Pixel CMOS AF on the actual image-capture sensor.
This provides about 80% production of phase-detection autofocus for faster and more accurate focusing in these settings.
It is ideal for footage as operators will enjoy more fluid rack focusing eliminating the downsides normally encountered with contrast-based systems.
Additionally, this works well with the touchscreen functions, enabling shooters to just tap to refine focus.

DCI 4K Video Recording Workflow

Developed for both professional stills shooting and footage capture, the 5D Mark IV accommodates DCI 4K (4096 x 2160) definition capture at up to 30 fps at 500 Mbps, along with Full HD 1080p shooting at 60 fps and HD 720p at 120 fps for slow movement playback.
When capture in-camera, 4K footage has 4:2:2 sampling and 8-bit color separation, whereas Full HD 1080p footage has 4:2:0 sampling.
Uncompressed Full HD 1080p footage can additionally be saved through HDMI to an optional outboard recorder with 4:2:2 color sampling.
4K footage is recorded through a central 4096 x 2160 region of the imager at a 1.74x crop in order to capture footage with an excellent 1:1 pixel sampling ratio, whereas Full HD capture makes use of the entire full shot.
Audio can be recorded through the on-board stereo microphone or an optional outboard mic can also be used through the 3.5mm mic jack.
Real time audio observation is possible, too, through the 3.5mm headphone jack.
The 4K footage recording additionally avails the capacity to make 8.8MP still shot grabs during playback on the rear touchscreen and save them as one pictures.

Dual Pixel RAW: Guide — Canon EOS 5D

First implemented here on the 5D Mark IV, Dual Pixel RAW enables photographers to capture all the information the sensor's distinct pixel architecture can produce, delivering a preference for small adjustments to be made after the picture is taken.
These adjustments incorporate focus small tuning that can help you ever-so-slightly refine the focus position to bring out extra details, shift bokeh around for improved framing, and lower the impact of ghosting on your photos.
This requires the use of Canon's Electronic Photo Professional 4.5 software.

Body Construction — Canon EOS 5D

• A large 3.2" 1.62m-dot Clear View II LCD monitor is available and features an anti-reflective design for bright, vivid image playback and live view shooting, and its touchscreen interface can be used for intuitive touch-to-focus control and adjusting settings in the menus.
• A dedicated AF mode selection button located beneath the rear joystick offers another avenue for accessing settings, allowing for fast, intuitive access to commonly changed options.
• Dual CompactFlash and SD memory card slots allow you to extend your file saving capabilities by permitting overflow recording or in-camera file type separation while shooting.
• An Intelligent Viewfinder II uses a pentaprism design and offers a bright means for viewing. When using the viewfinder, AF points are highlighted in red for greater visibility in low-light conditions, and the finder can also be configured to display a range of other shooting aids, such as an electronic level, grid, flicker detection, white balance, metering mode, AF information, and other settings.
• A Mirror Vibration Control System helps to minimize mechanical vibrations in order to better ensure sharpness during long exposures or fast continuous shooting bursts.
• A robust magnesium alloy body design is both dust- and weather-sealed to permit working in harsh environments.
