Canare BCP-D55UHW Crimp Plug 12G BNC Connector for Canare L-5.5CUHWS 12G Coax
Canare BCP-D55UHW Crimp Plug 12G BNC Connector for Canare L-5.5CUHWS 12G Coax
In stock
View full details
WhatsApp us for inquiries

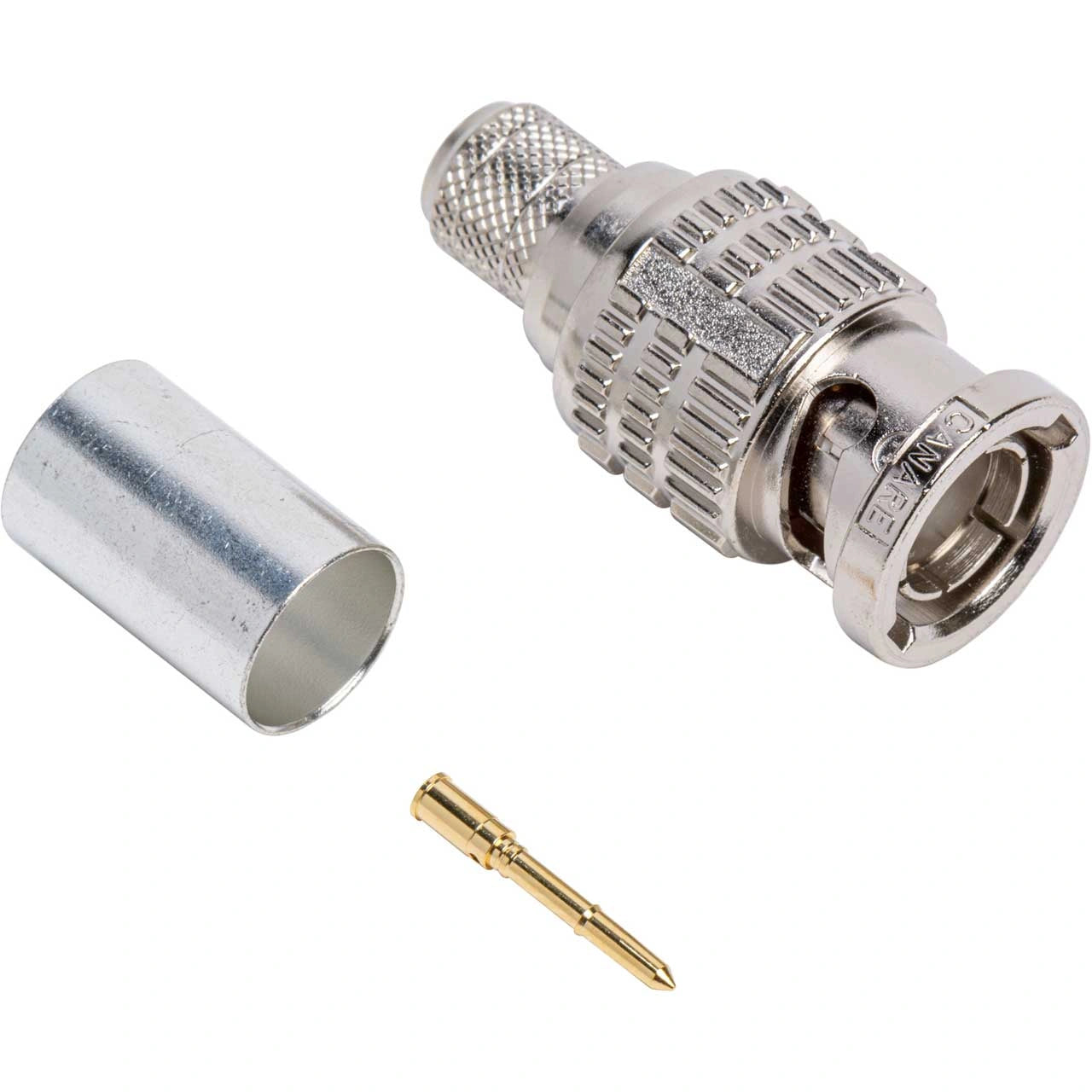

Canare BCP-D55UHW is a crimp type 75Ω BNC plug.
| Applicable Standard | IEC 61169-8, JIS C 5412 |
| Nominal Impedance | 75Ω unbalanced |
| Weight | Approx. 15 g (including center contact and crimp sleeve) |
| Designation | Stamp model name (BCP-D55UHD) on washer and brand name (CANARE) on coupling sleeve. |
| Applicable Cable | L-5.5CUHWS (CANARE) |
| Crimp Tool |
Frame: TC-1 Die: TCD-57C |
| Operating Temperature | -40° to 185°F (-40° to 85°C) |
| Operating Humidity | 90% |
| Insulation Resistance | 5000 MΩ or more |
| Voltage Proof | Without any damage such as electric breakdown. |
| Contact Resistance |
Between External Contacts: 3 mΩ or less Between Center Contacts: 6 mΩ or less |
| Return Loss |
26.4 dB or more (0 to 3 GHz) 20 dB or more (0 to 6 GHz) 15 dB or more (0 to 12 GHz) |
| Intermatability | To be engaged without any abnormality. |
| Fixing Force of Contact with Lock Mechanism | No displacement more than 0.5 mm. |
| Strength of Coupling Mechanism | Coupling sleeve shall not be disconnected and no deformation shall occur. |
| Cable Connecting Force | 250 N or more for L-5.5CUHWS |
| Mechanical Operation (Repeated) | Contact resistance: 10 mΩ or less |
| Corrosion Resistance (Salt Mist) | Appearance: By visual inspection, without noticeable rust. |
| Contact Resistance | 50 mΩ or less |
| Please Note |
*1 - International Electrotechnical Commission *2 - The Japanese Electric Wire & Cable Maker's Association Standard |
