Blackmagic Ursa Cine 12K guide | DUBAI | UAE

For this model,

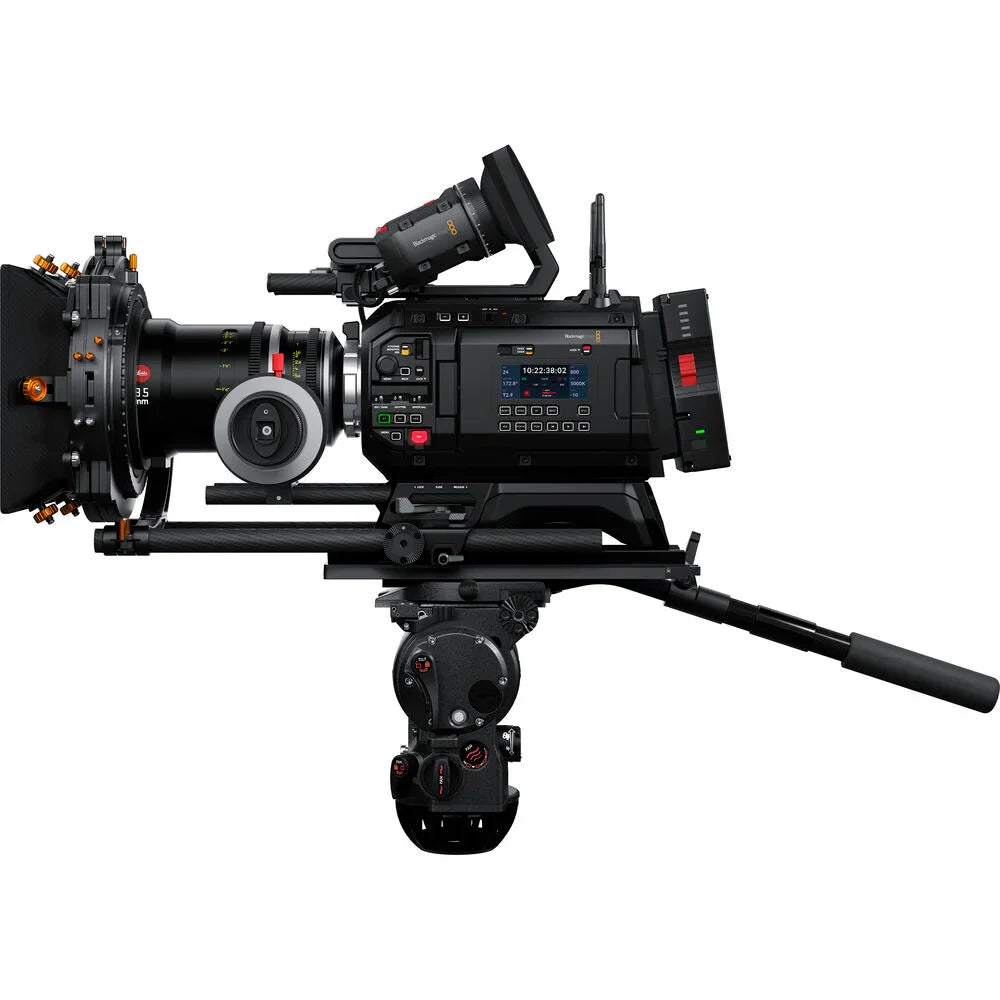

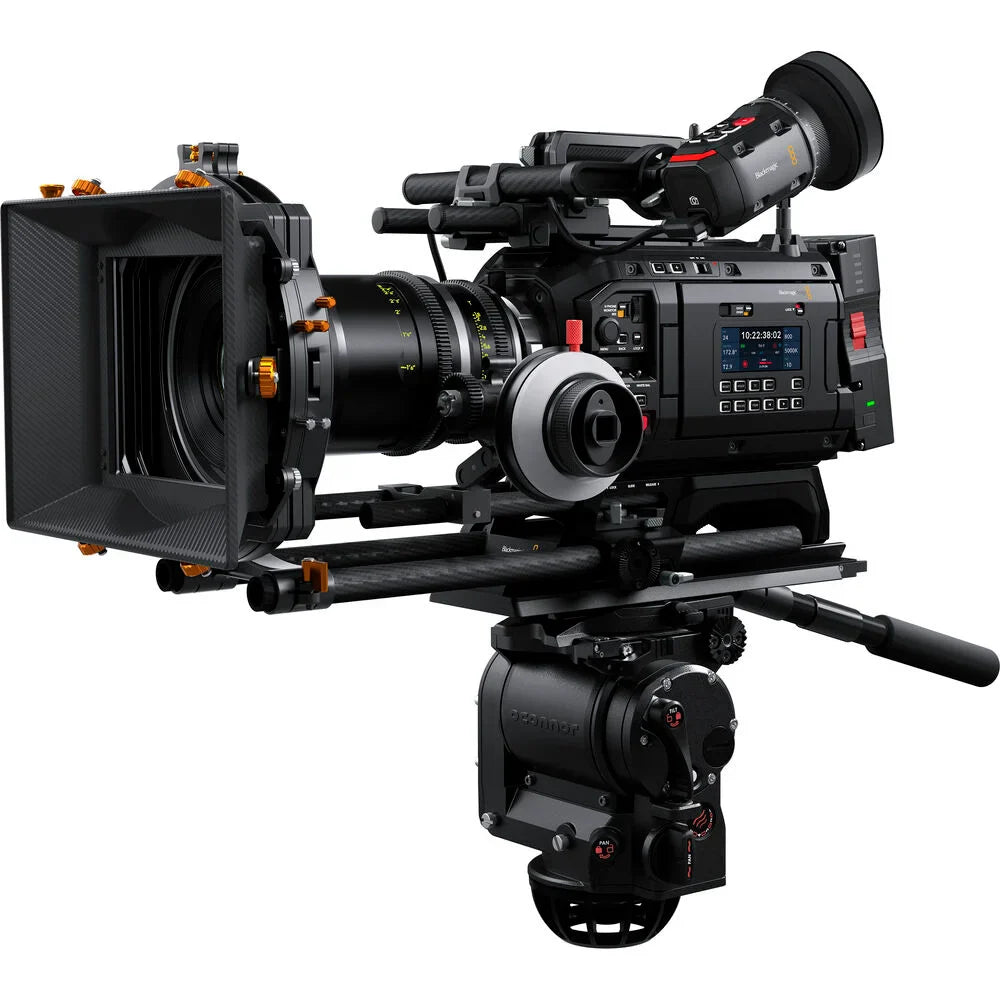

Achieve an authentic cinematic experience with the revamped Blackmagic URSA Cine 12K Camera. The updated version boasts a stunning 12K full-frame 36 x 24mm sensor, promising a true cinematic look and feel. With an advertised dynamic range of 16 stops and the ability to capture Blackmagic raw footage up to 12K 3:2 open gate, this camera offers notable quality. Additionally, it provides Wi-Fi and SRT live streaming functions, built-in ND filters, LEMO and Fischer standard control/power links, high-speed networking for cloud storage and M.2 SSD media, and comes with a standard PL mount as default.

Purpose-Built Camera Body of Blackmagic Ursa Cine 12K for production Productions

Crafted for the demands of professional productions, the Blackmagic Ursa Cine 12K integrates a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin. Its backlit soft-touch buttons maintain effortless operation in any lighting condition. Efficient on-set work is facilitated with several monitoring options, including a fold-out monitor with a 5” HDR touchscreen and an outboard color status LCD. A dedicated assist station provides a second 5” HDR touchscreen, enabling crew members to operate around the camera without outboard monitors. Rugged industry-standard links, such as 7-pin Lemo and 3-pin Fischer, along with 10G Ethernet, maintain seamless integration into high-end cinema production processes.

Interchangeable Lens Mounts on Blackmagic Ursa Cine 12K and Large Format Sensor

The large format sensor of the Blackmagic Ursa Cine 12K includes unmatched flexibility in aspect ratios, lens choices, and delivery formats. From open gate for post-production reframing to anamorphic for a range of aspect ratios, users attains cinematic excellence effortlessly. Interchangeable lens mounts, comprising PL, LPL, EF, and Hasselblad, cater to diverse shooting needs, preserving compatibility with a wide array of professional lenses.

Optical Low Pass Filter and High Resolution Monitoring, Camera Control

Powered by Blackmagic RAW, the Ursa Cine 12K captures and preserves sensor data quality, supporting picture consistency from set to post-production. With constant quality and constant bitrate encoding options, operators can tailor compression to match scene detail while maintaining predictable file sizes. The incorporation of an optical low pass filter minimizes interference and enhances color accuracy, preserving critical picture detail for unparalleled picture capture.

Refined Color-Balanced ND Filters of Blackmagic Ursa Cine 12K: Guide

The Ursa Cine 12K comes equipped with enhanced ND filters, enabling swift adjustment of incoming light levels. These filters are meticulously calibrated to harmonize with the camera's colorimetry and color science, helping ensure adaptability in challenging lighting scenarios. Unlike typical ND filters, the IR filters built-in into the Ursa Cine 12K are engineered to uniformly filter both optical and IR wavelengths, eradicating IR contamination. With a precision mechanism, operators can effortlessly engage the ND filters through the dial, with settings conveniently displayed on the LCD screen.

Expanded Full Frame Capture: Enhanced Frame Rates

The Blackmagic Ursa Cine 12K provides a diverse group of definition and frame rate options, supporting standard resolutions and frame rates in 4K, 8K, Super 35 9K, and up to an exceptionally detailed 12K. Capture functions incorporate 100 fps in 12K 17:9 aspect ratio or 120 fps in 12K 2.4:1 widescreen format.
For even higher frame rates, operators can attain 144 fps in 8192 x 5360 definition or 180 fps in 8192 x 3408 definition. The camera produces fluid motion rendering with enhanced sharpness in 8K and 4K resolutions, even at lower frame rates. With an impressive 100 megapixels per frame at 80 fps in Blackmagic RAW format, the Ursa Cine 12K permits simultaneous capture of strong stills and motion shots.

Cutting-Edge Internal Media media handling Solutions for Blackmagic Ursa Cine 12K

The Ursa Cine 12K introduces innovative Cloud Store technology inside the camera, offering lightning-fast and high-capacity capture functions. The Blackmagic Media Module boasts robustness and incorporates a generous 8TB storage capacity, functioning similar to a space-efficient Cloud Store Mini built-in directly into the camera. This high-speed storage option enables capture at the highest resolutions and frame rates for extended durations, with seamless file access via high-speed 10G Ethernet interfacing. Alternatively, operators can utilize their existing media with the optional Blackmagic Media Module CF, featuring dual CFexpress slots. The module can be easily detached for media transfer to a network or Blackmagic Cloud, facilitating effortless global collaboration.

Record Stunning High-Definition Footage Using the Complete 12K Open Gate Sensor: Guide

The Blackmagic Ursa Cine 12K boasts a definition of 12,288 x 8040 @ 24fps. Blackmagic RAW provides the flexibility of constant quality and constant bitrate encoding, allowing you to prioritize picture quality or file size based on your production requirements.

Batteries and Compatible With Standard Industry Power Sources

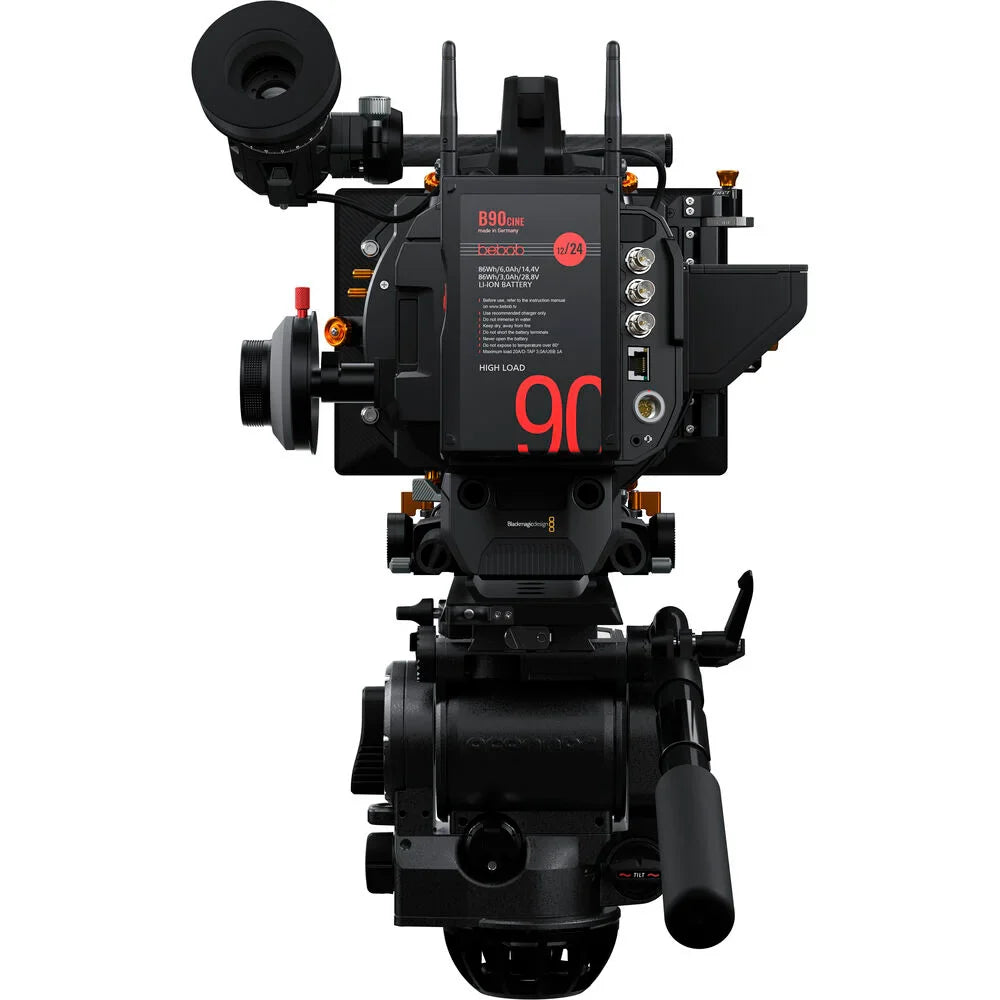

Featuring an 8-pin Lemo power connector at the rear, the Ursa Cine 12K is compatible with both 24V and 12V power supplies, seamlessly integrating with existing power setups, batteries, and accessories. Additionally, the camera's front hosts extra Lemo and Fischer connectors for powering accessories like lens motors. The Ursa Cine 12K package incorporates a sturdy 250W power supply and B Mount battery plate, enabling the use of numerous high voltage batteries from leading manufacturers such as IDX, Blueshape, Core SWX, and BEBOB. Furthermore, optional Blackmagic Ursa Cine 12K VLock Battery Plate or Blackmagic Ursa Cine 12K Gold Battery Plate can be added for compatibility with legacy V-Mount and Gold Mount batteries.

Manage Blackmagic Ursa Cine 12K Wirelessly via Bluetooth: Guide

For convenient wireless camera control, the Ursa Cine 12K provides Bluetooth interfacing, enabling full control from up to 30 feet away. Operators can utilize the Blackmagic Camera Control app on their iPad or opt for third-party apps like Bluetooth+ or tRigger on both iOS and Android devices. Moreover, Blackmagic Design offers a free developer SDK with sample code on their website, empowering operators to create custom remote camera control and digital slate solutions. Consider the potential of developing an app capable of synchronizing timecode and triggering all cameras to capture simultaneously. With limitless possibilities, the Ursa Cine 12K paves the way for innovative filmmaking techniques.
