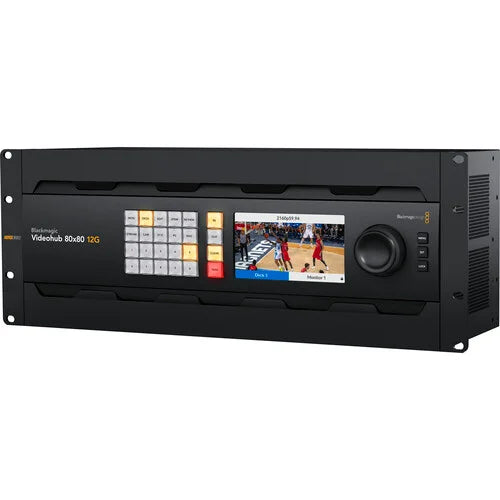

Blackmagic Videohub 80x80 12G Zero Latency video signal Router VHUBSMAS12G8080

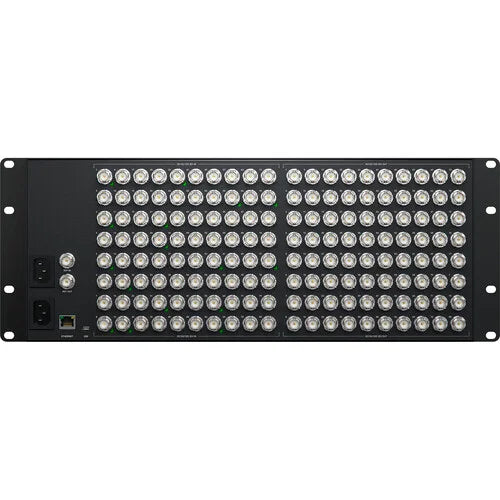

At the point of image capture, Permit diverse moving imagery configuration compatibility with Blackmagic Design's Videohub 80x80 12G Zero-Latency Footage Router VHUBSMAS12G8080. This refined router provides 80 inputs and 80 feeds, all supporting 12G-SDI, allowing smooth routing of several footage formats, comprising SD, HD, UHD 4K, and DCI 4K. By consolidating all your SDI links into one hub, the Blackmagic Videohub 80x80 12G  VHUBSMAS12G8080 streamlines the process of connecting any footage source to any screen, even distributing a single source to several feeds, eliminating lead clutter and intricate diagrams. This versatile device can be used for numerous uses, from redundant mastering with several HyperDeck recorders to routing footage to several streaming processors for a range of broadcasting platforms or expanding sources for an ATEM switcher.

12G-SDI Multi-Rate Connections of Blackmagic Videohub 80x80 VHUBSMAS12G8080: Guide

• You can utilize multi-rate 12G-SDI connections to route 80 various video standards concurrently with VHUBSMAS12G8080.
• It accommodates DCI 4K60 video resolutions.
• It offers 4:2:2 color routing in 8 or 10-bit across all standards.
• It is compatible with 4:4:4 12-bit SDI at DCI 4K30, suitable for feature films.

SDI Reclocking: Guide

VHUBSMAS12G8080 has a Feed Reclocking occurs on each 12G-SDI source, helping ensure optimal footage quality, reducing signal degradation, and mitigating issues such as jitter in extended lead runs.

Front Panel Functionalities: Guide

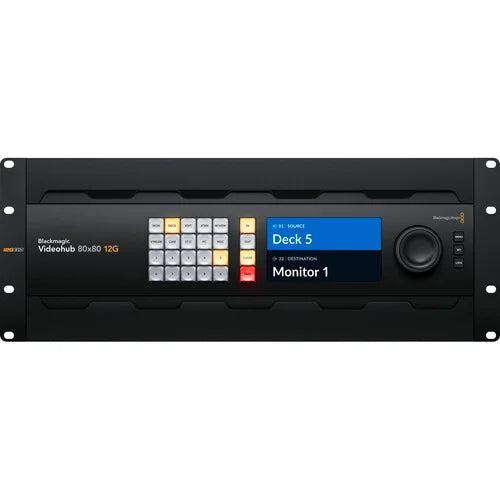

The streamlined front panel of VHUBSMAS12G8080 supplies numerous control options, featuring keys for customizable shortcuts, as well as In, Out, Detailed, and Make functions. Additionally, the accuracy of the machined metal spin knob is enhanced by an electronic clutch for precision in control.

Functional operation Panel of Blackmagic Videohub 80x80

It can be employed alongside optional hardware panels to simplify control in extensive sites where components are spread out. It works cleanly with both the VHUBSMAS12G8080 Videohub Master Control Pro and the Videohub Smart Control Pro.

Versatile Software operation

The Videohub Software Control, compatible with both Mac and Windows, provides user-friendly touchscreen router handling.

Builtin LCD Screen: Guide

• VHUBSMAS12G8080 has Preview your live input on the integrated 5-inch LCD display before directing the signal.
• Utilize bottom labels to navigate through your sources alphabetically.
• This eliminates the necessity for an external SDI monitor in your configuration.

Practical Notes: SDK and Setup Utility

You can commence by utilizing the VHUBSMAS12G8080 Videohub Configuration software, or opt for the SDK to incorporate protocol compatibility for broadcast automation systems.

Multiple Language compatibility

Customized support is provided in:

• English, Chinese, Japanese, Korean
• Spanish, German, French, Russian
• Italian, Portuguese, Turkish, Polish, Ukrainian
