SKU: VHUBSMAS12G02020

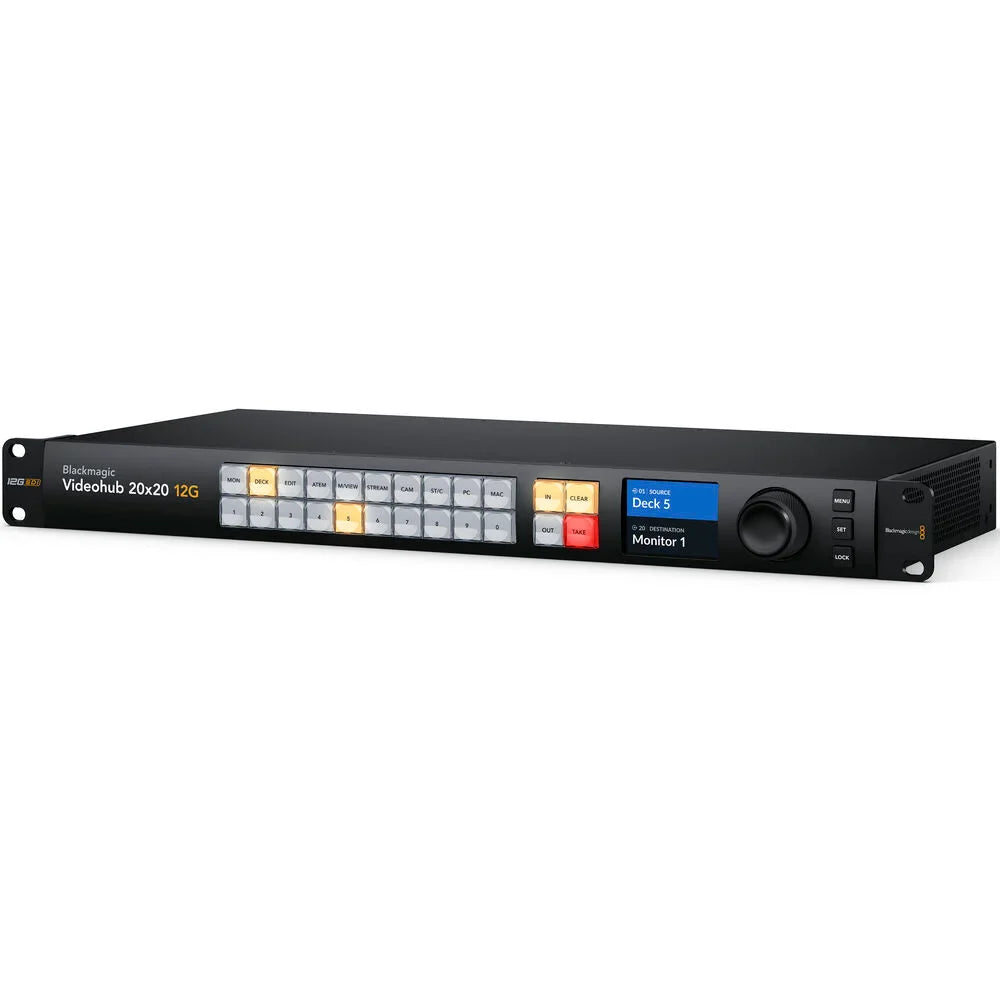

Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
In stock
View full details
WhatsApp us for inquiries
Blackmagic construction Videohub 20x20 12G Zero-Latency video signal Router
From an imaging perspective, support a mix of several video formats through the Videohub 20x20 12G Zero-Latency Footage Router from Blackmagic Design. This advanced router delivers 20 12G-SDI sources and 20 12G-SDI feeds for routing any combination of SD, HD, UHD 4K, and DCI 4K footage. The Videohub 20x20 12G centralizes all your SDI cables in one hub, enabling you to connect any footage input to any footage feed, or a single footage input to several video feeds while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with several HyperDeck recorders for redundant mastering, to route footage to several streaming processors for all your broadcast platforms, or to add extra sources to an ATEM switcher.
12G-SDI Multi-Rate Connections: Guide
- Multi-rate 12G-SDI connections enable you to route up to 20 different video standards at the same time.
- Supports up to DCI 4K60 video resolutions.
- Provides 4:2:2 8 or 10-bit color routing in any standard.
- Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking: Guide
- Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
- Reduces or eliminates signal loss and jitter when using longer cables.
Front Panel operation
- A sleek front panel offers multiple control options.
- Buttons include assignable shortcuts, and In, Out, Clear, and Take buttons.
- The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware operation Panels
- Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
- Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
adaptable operation
The Mac and Windows-compatible Videohub Software Control delivers easy-to-use touchscreen router control.
Built-In LCD: Guide
- View your live input before routing the signal on the built-in 2.2" LCD screen.
- Bottom labels enable you to scroll through your sources in alphabetical order.
- Eliminates the need to add an external SDI monitor to your setup.
SDK and Setup Utility
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
Multiple Language compatibility
Customized support is available in:
- English, Chinese, Japanese, Korean
- Spanish, German, French, Russian
- Italian, Portuguese, Turkish, Polish, Ukrainian
Key Features
- Zero-Latency Routing Switcher
- 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, Compact 1 RU Size
- Includes Videohub Mac/Windows Software
