Blackmagic Design UltraStudio 4K Mini
Blackmagic Design UltraStudio 4K Mini
In stock
View full details
WhatsApp us for inquiries
Blackmagic Design UltraStudio 4K Mini — Product Guide
For professional deployment, the UltraStudio 4K Mini Thunderbolt 3 from Blackmagic Design links your Thunderbolt 3 PC to any of a selection of footage components for acquisition, playback, or broadcasting. This portable device captures up to DCI 4K60 4:2:2 through single-link 12G-SDI or up to DCI 4K30 4:2:2 footage via HDMI. Capture 12-bit Elevated Dynamic Selection (HDR) footage at rates up to DCI 4K30 and 8-/10-little footage at rates up to DCI 4K60.
A built-in LCD display permits you to display your signal, and a SD card reader delivers instant availability to your SD media. The space-efficient UltraStudio 4K Mini's Thunderbolt 3 interface includes lightning-fast links and will trickle-charge a linked computer. Audio capabilities incorporate 16-channel SDI and 8-channel HDMI embedded source and feed, a 3-pin XLR audio source, and a headphone feed.
The UltraStudio Mini 4K Thunderbolt 3 allows both compressed and uncompressed footage, is Window, Mac, and Linux compatible, and allows most widely chosen codecs. The UltraStudio 4K Mini additionally accommodates 3D acquisition and playback through HDMI, plus 3D SDI playback at rates up to DCI 4K30. The no-cost version of DaVinci Resolve and extra software are included on a SD medium. Power the UltraStudio Mini 4K Thunderbolt 3 through its onboard 100-240 VAC adapter.
Thunderbolt 3 connections
Lightning-fast Thunderbolt 3 link with trickle-charging for a linked laptop
Supports up to DCI 4K60 video signal
8/10/12-bit HDR acquisition and playback with multi-rate compatibility from SD to DCI 4K60
space-saving Construction
Portable configuration with front-panel control keys, LCD with footage, audio and status details, XLR mic source, and a SD medium slot
Supported Software
- DaVinci Resolve
- Adobe Premiere Pro CC, After Effects CC, Photoshop CC
- Avid Media Composer, Pro Tools
- Final Cut Pro X
- Fusion
- Steinberg Cubase, Nuendo
System Requirements: Guide
- Mac 10.13 High Sierra, 10.14 Mojave, or later
- Windows 7, 8.1, and 10, all 64-bit
- Linux
Included Software: Guide
See the Incorporates section for a catalogue of the Mac, Linux, and Windows applications on the supplied SD medium
To locate more please follow here
You can additionally follow our website to order today.

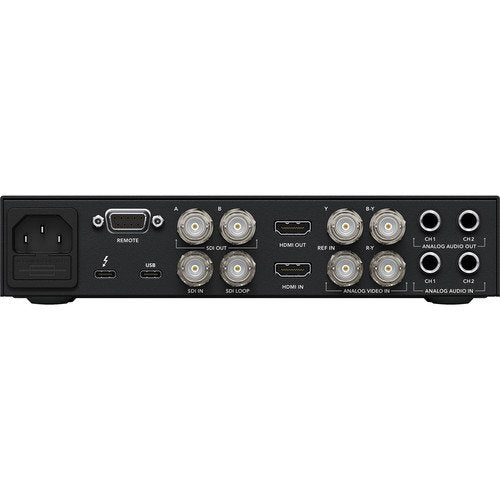

[caption id="" match="alignnone" width="1399"]
UltraStudio 4K Mini[/caption]
Key Features
- 12G-SDI & HDMI 2.0 Input/Output
- 1 x 40 Gb/s Thunderbolt 3 Interface
- 3" LCD Status/Preview Screen
- DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
- DCI 4K30 4:4:4 Single-Link 12G-SDI I/O
- DCI4K60 4:4:4 via HDMI
- 8-, 10- & 12-Bit Processing
- 2K/HD/SD via SDI or HDMI
- RS-422 Deck Control
- Mac OS X, Windows & Linux Compatible
