The Blackmagic Design Teranex Mini SDI to HDMI 8K HDR  by is more than only a basic converter, it is additionally an enhanced 8K observation solution.
The four 12G-SDI sources support 4K feeds independently and can be ganged together to support an 8K source feed, either DCI 8K or 8K footage split into four UHD feeds.
Third-party calibration hardware is supported, including the X-Rite i1 Screen Pro, SpectraCal C6, and Klein K10-A probes to accurately match connected displays for accurate color.
The built-in LCD display displays not only the footage picture, but it can additionally screen two on-screen scopes that can be chosen between WFM, Parade, Vector, and Histogram.
The 8K is provided on the four SDI feeds, or via the four HDMI feeds for displays that support quad HDMI sources.
If you are not connected to an 8K observation option, a built-in down-converter permits you to display the 8K source footage on an Ultra HD or HD display.
The device will convert between 2SI and square division without manual intervention.
The Mini SDI to HDMI 8K HDR option accommodates a variety of HDR processes, including, PQ and HLG, and support extends to both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 configuration.
Two separate 3D LUTs can be loaded at the identical time, and you can selector between them from its front panel.

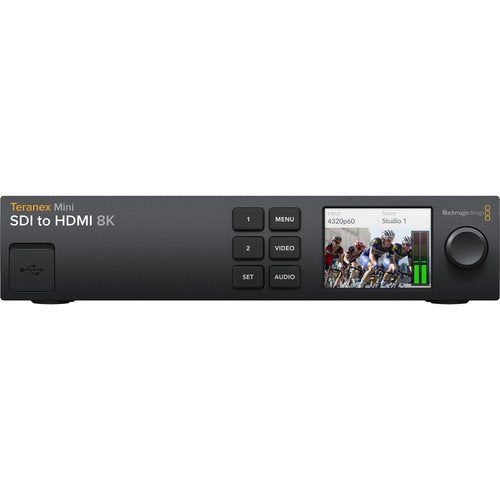

In addition to the LCD footage screen, the front of the device integrates a rotating selection knob and six front-panel keys for navigating the device.

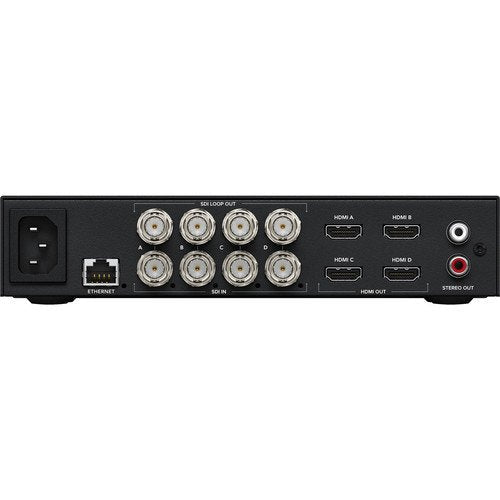

The quad-link 12G-SDI sources have feeds for looping to other hardware.
In asset, all HD, Ultra HD, and 8K standards are supported, enabling broadcast or cinematic industry use.
With 2SI to square division conversion built-in, an 8K source will be without manual intervention converted for the display.
Teranex Mini SDI to HDMI even handles both Level An or B 3G-SDI plus YUV and RGB SDI formats.
You can additionally view here.
The Blackmagic Configuration Teranex Mini SDI to HDMI 8K HDR can use third-party calibration probes (not supplied) such as the SpectraCal C6, X-Rite i1 Screen Pro, or the Klein K10-A probe to accurately match connected displays for accurate color.
Only connect the probe to the device through the USB Type-C connector on the front panel, and start the calibration process in the menu.
The front-panel LCD offers confidence observation with both pictures and accurate audio level meters.
There are menus for all functions and it's simple to scroll via the menu pages to find settings that requirement changing.
The 3D LUTs can be enabled only by depressing the 1 or 2 buttons. Calibration is additionally started through the menus and you simply follow the prompts to calibrate your screen.
The audio meters can even be switched between VU or PPM ballistics. HDMI immediate lock can be enabled to maintain the HDMI screen locks instantly if the source footage is interrupted.
There are settings for configuring scopes, their on-screen on-location, or opacity. You can even see and edit installation settings.
Teranex Mini SDI to HDMI 8K HDR incorporates the same high-quality, 33-position 3D LUTs as employed in the cinematic industry.
3D LUTs are well suited to recreating the look of old-style cinematic stocks, or they can be employed to compensate for the colorimetry of the connected screen.
You can calibrate the connected screen by connecting a third-party USB colour probe, and Teranex Mini SDI to HDMI 8K HDR will analyze the display and generate a 3D LUT to correct for colour differences between displays.
Two separate 3D LUTs can be loaded and you can choose between them from the front panel.
Plus, 3D LUTs use standard file formats so you can load LUTs generated by software such as DaVinci Resolve.
Find out more here.

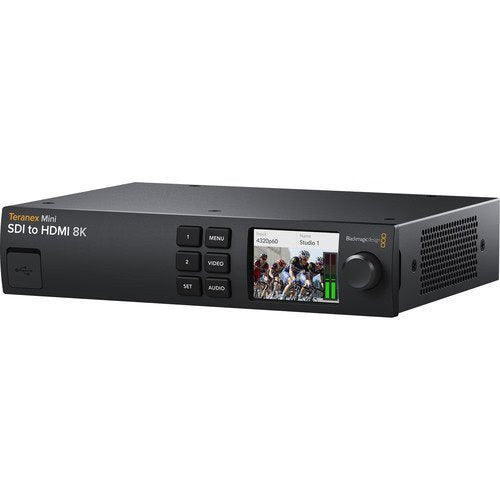

[caption id="" match="alignnone" width="1000"] Blackmagic Configuration Teranex Mini SDI to HDMI 8K Converter and Observation Solution [/caption]
