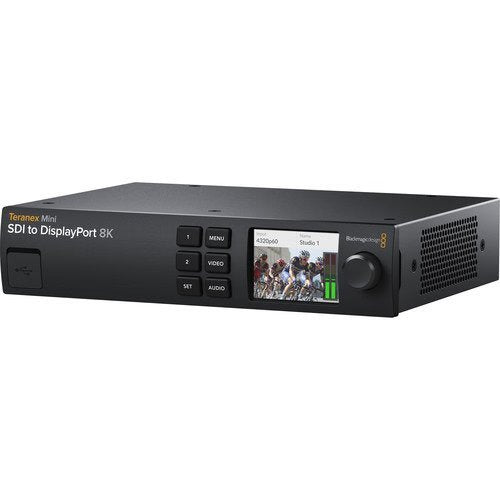

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
In stock
View full details
WhatsApp us for inquiries
Monitor 8K HDR SDI Through DisplayPort
The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter from supplies an enhanced 8K monitoring solution.
Its DisplayPort feeds permit you use pro displays like the Apple Pro Screen XDR as part of your on-set or post-production display setup.
The four 12G-SDI sources support 4K feeds independently or an 8K source feed together, either DCI 8K or 8K footage split into four UHD feeds.
Third-party calibration hardware is supported, including the X-Rite i1 Screen Pro, SpectraCal C6, and Klein K10-A probes to accurately match connected displays for accurate color.
The built-in, colour LCD display displays not only the footage picture, but it can additionally display two on-screen scopes chosen from WFM, Parade, Vector, and Histogram options.
The 8K is provided on the four SDI feeds, via the single USB-C DisplayPort feed, or the two full-size DisplayPort feeds for displays that support quad HDMI sources.
If you are not connected to an 8K observation option, a built-in down-converter permits you to display the 8K source footage on an Ultra HD or HD display.
This device will convert between 2SI and square division without manual intervention.
The Mini SDI to DisplayPort 8K HDR option allows a variety of HDR processes such as PQ and HLG, and the unit provides support for both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 configuration.
Two separate 3D LUTs can be loaded at the identical time, and you can selector between them from its front panel.

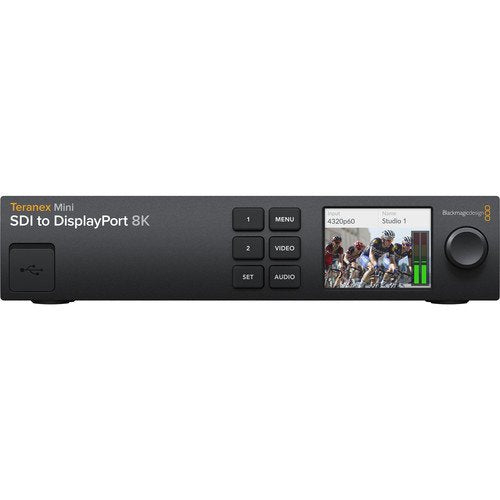

In addition to the LCD footage display, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter contains a rotating selection knob and six front-panel keys for navigating.
Use the supplied rubber feet for desktop installation or support the converter with the separately provided Teranex Mini Rack Shelf.
You can additionally click here.
capabilities — Blackmagic Design Teranex — Product Guide
SDI to DisplayPort signal conversion
Converts SDI inputs to DisplayPort, supporting up to DCI 8K60 source
Quad-Link 12G-SDI: Guide
Quad-link 12G-SDI sources with loop outs
SDI DisplayPort signal feeds&

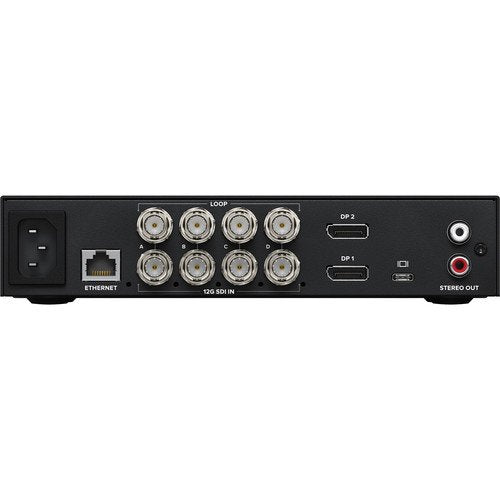

Quad-link 12G-SDI feed, one USB-C DisplayPort feed, and two full-size DisplayPort feeds
Pro Monitor Compatibility: Guide
Compatible with pro displays like the Apple 32" Pro Screen XDR
Calibration Tool Compatibility: Guide
Allows third-party calibration probes such as the SpectraCal C6, X-Rite i1 Screen Pro, and the Klein K10-A for accurate alignment on connected displays
HDR compatibility
Handles SDR and both HLG or PQ HDR through the SDI and DisplayPort feeds
Live Scope Overlays
Overlay up to two live scopes on the display
3D LUT compatibility
Accommodates 3D, 10-little LUTs with two front-panel control keys
For more information click here.
[caption id="" match="alignnone" width="1000"]
Blackmagic Configuration Teranex Mini SDI to DisplayPort 8K HDR Converter [/caption]
Key Features
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
