Blackmagic Design Teranex Mini Optical to HDMI 12G Converter

Blackmagic Design Teranex Mini Optical to HDMI 12G Converter — Product Guide

The Blackmagic Design  Teranex Mini Optical to HDMI 12G Converter from permits you to convert up to a 12G-SDI feed to HDMI, or install an optional optical fiber module and convert up to 12G fiber feeds to HDMI.
You can source and feed up to DCI 4K (4096 x 2160) 60p feeds on both source and feed, connecting inputs such as the Blackmagic URSA on the source end.
An optical fiber module is not supplied but is supported on the rear.
3G and 6G modules are currently provided (version #s ADPT-3GBI/OPT and ADPT-6GBI/OPT), and 12G modules are in the works.
The Teranex Mini Optical to HDMI 12G Converter additionally features full-size XLR feeds that are switchable between well-controlled analog and AES/EBU electronic audio, and which enable you to feed separate audio.
The converter additionally has an Ethernet port that enables you to manage the converter from a distance from a Mac or Windows computer through the supplied Converter Utility software.
This function is especially useful whenever you're in a larger facility through numerous converters.
The Ethernet port can instead be employed for Power-over-Ethernet (PoE). If you don't require to use PoE, you won't deliver to deal with cumbersome power supplies, as the Teranex Mini contains a built-in 90-240V power supply, and all you'll requirement is a standard IEC power lead, sold separately.
The Teranex Mini can be employed rack-mounted, concealed in lead ducts, or desktop-mounted.
Its space-efficient size makes it valuable for portable racks at live productions or in broadcast trucks. Up to three units can readily be installed in an optional 1 RU 19" rack tray.

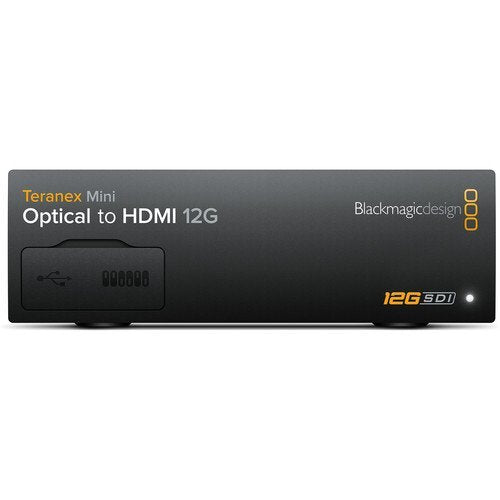

The standard front panel can be replaced with an optional Smart Panel that provides a spin knob, colour LCD, and six control buttons, comprising a menu control.
The substantially large LCD will show you the footage conversion in progress and will additionally let you display audio levels and verify timecode.
The standard front panel simply comes off and the Smart Panel readily attaches in its place. With the standard front panel installed, its mini switches provide immediate settings adjustment using the reference diagram printed on the converter.
Replacing it with the optional Smart Panel adds uncomplicated screen menus plus a live indication of the active conversion.
The Teranex Mini is developed with smart heat dissipation that prevents overheating.
What makes this function so efficient is a smart thermal configuration with crossflow cooling that achieves the optimal heat dissipation even whenever you deliver units rack-mounted side-by-side one another.
A smart thermal subsystem and onboard heat pipe assist with cooling and maintain the air flowing at all times whereas minimizing noise.
Additionally, an overheating condition triggers an immediate warning both on the front panel and through Ethernet remote control.
Whenever several units are rack-mounted side by side, every Teranex Mini works together to pull air via the rack, keeping all units cool and delivering redundancy for every one.
Find out more here.

Feature Highlights — Blackmagic Design Teranex — Product Guide

• Convert a 12G-SDI signal to an HDMI output
• Convert optical fiber to HDMI via optional fiber module
• Supports up to DCI 4K (4096 x 2160) 60p signals on input and output
• Full-size XLR ports switchable between balanced analog and AES/EBU audio
• Ethernet port supporting PoE or remote control via included Mac/Windows software
• Built-in 90-240V power supply (optional standard IEC power cable required)
• Can be installed in 19" racks (up to 3 units side-by-side), cable ducts, or desktop-mounted
• Front panel is replaceable with an optional LCD Smart Panel
• Intelligent thermal heat dissipation
• Full SDI re-clocking and low jitter

You can additionally click here.

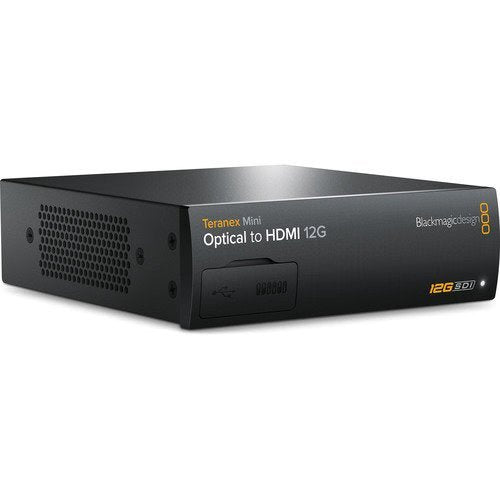

[caption id="" match="alignnone" width="1000"] Blackmagic Configuration Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Supplied) [/caption]
