Blackmagic Design Teranex Mini IP video signal 12G — Product Guide

The Blackmagic Design Teranex Mini IP Footage 12G from Support’s up to 12G-SDI files rates, is a 12G-SDI/Ethernet encoder/decoder that allows TICO encoding for high-quaity footage over Ethernet transmission.
The space-efficient size of the Teranex Mini makes it very valuable for portable racks at live productions or in broadcast trucks.
One device is required at each end several units can be employed on the same installation—controlled by a Mac or Windows computer through the included Blackmagic Footage Hub software.
The unit handles up to 1080p60 over a Gigabit Ethernet LAN with higher files rates supported by through an optional 10G optical Ethernet connector.

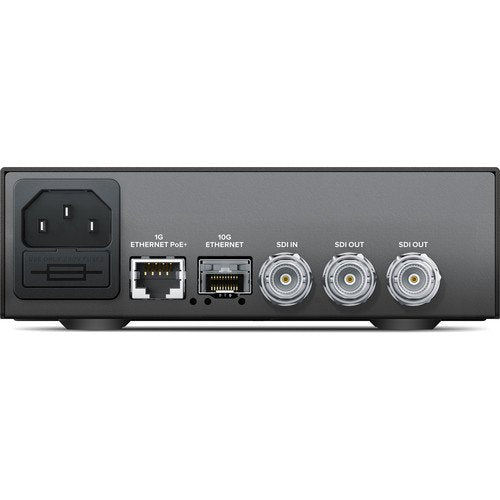

The Mini IP Footage 12G has a single 12G-SDI source and two 12G-SDI feeds In asset to the Gigabit Ethernet connector and a slot for an optional 10G SFP.
An optional Smart Front Panel with a built-in LCD screen offers local configuration and control and replaces the standard panel with DIP selector setup that comes with the device.
Up to three units can be readily installed in an optional 1 RU 19" rack tray, and it contains a built-in 90-240V power supply, and all you'll requirement is a standard IEC power lead, sold separately.
Requires a lowest of two units one for encoding the feed and one for decoding the feed.
TICO encoding is a graphically lossless compression developed to let you distribute footage across an IP installation.
The unit accommodates feeds up to 1080p60 over a standard Ethernet link.
For support of feeds up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.
Blackmagic Videohub Software can be employed on Windows or Mac OS computers to turn them into a router server that can manage the links between several units so you can build a large custom sized router on your installation.
You can additionally click here for more.
Handles AC voltage through an optional IEC lead (Blackmagic units do not ship with a power lead) or you can power it through PoE+ with a compatible router.
Configuration is done through built-in DIP switches, Blackmagic Teranex configuration software, or an optional Teranex Mini Smart Panel with LCD display.
You can control your Mini 12G-IP through the optional Teranex Mini Smart Panel with LCD display or Blackmagic Footage Hub software.
Embedded audio is supported—there are no standalone audio sources/outputs.
Blackmagic Teranex setup and Footage Hub software is supplied on the SD medium that ships with your device.
Find out more here.
