Convert HDMI Sources into 12G-SDI

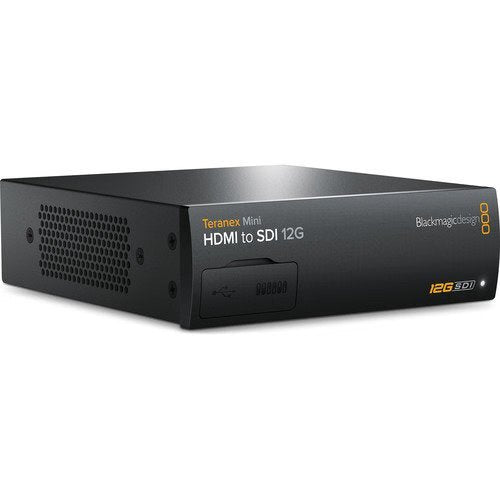

Blackmagic Design Teranex Mini Converter HDMI to SDI 12G  by   Accommodates up to 12G-SDI files rates with smart heat dissipation, and offering elements such as XLR links together with Ethernet control and PoE, suits rack-mounted, cable-duct, and desktop installations.
Connect an HDMI feed in up to Full 4K DCI 4096x2160p definition and route it out over up to two separate 12G-SDI feeds in the same resolution.
Route 4096x2160p feeds approximately 70 ft through 6G-SDI leads, and run lower-resolution feeds, such as 3G-SDI or HD-SDI, for much longer than standard ranges.

With 12G SDI: Guide

When 12G-SDI cables will be provided on the market, you'll be able to run 4K DCI 4096x2160p feeds for over 250 ft.
You can additionally connect standalone audio via full-size XLR sources that are switchable between well-controlled analog and AES/EBU electronic audio.
The space-efficient size of the Teranex Mini makes it very valuable for portable racks at live productions or in broadcast trucks.
Up to three units can readily be installed in an optional 1U 19" rack tray, and they can only as readily be removed, and all this with the benefit of 12G-SDI function.

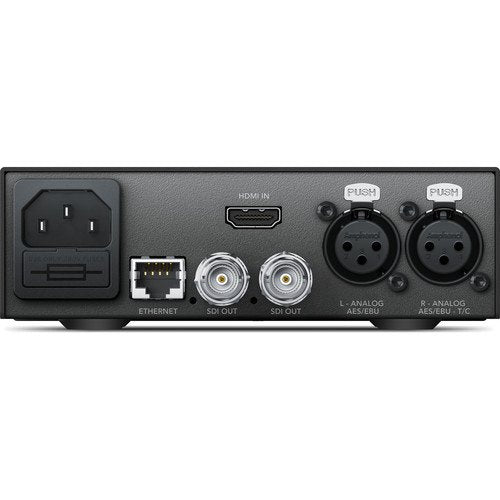

The Ethernet port on the rear will enable you to manage the Teranex Mini from a distance or can instead be employed for power over Ethernet.
If you don't require to use power over Ethernet, you won't deliver to deal with cumbersome power supplies, as the Teranex Mini provides a built-in 90-240V power supply, and all you'll requirement is a standard IEC power lead, sold separately.
Replacing the Teranex Mini's standard face with the optional Smart Panel adds a color LCD, rotary dial, and six buttons including menu access.
The substantially large LCD will show you the footage conversion in progress and will additionally let you display audio levels as well as verify timecode and the footage standard being converted.
The standard front panel simply comes off and the Smart Panel readily attaches in its place.
Using the standard front panel gives immediate access to miniature settings switches, guided by the reference graphic printed on the unit.

Teranex Mini converter: optional Smart panel

Installing the optional Smart Panel provides straightforward on-screen menus and displays the conversion currently in progress.
For installations containing many converters, the included Converter Utility centralizes Ethernet management from either Windows or macOS.
What permits the Teranex Mini to dissipate heat so effectively and avoid overheating is a smart thermal configuration with crossflow cooling that achieves the optimal heat dissipation even whenever you deliver units rack-mounted side-by-side one another.
A smart thermal subsystem and onboard heat pipe assist with cooling and maintain the air flowing at all times whereas minimizing noise.
Additionally, an overheating condition triggers an immediate warning both on the front panel and through Ethernet remote control.
Whenever several units are rack-mounted side by side, every Teranex Mini works together to pull air via the rack keeping all units cool and delivering redundancy for every one.
The Teranex Mini HDMI to SDI 12G Converter is constructed using high-quality Teranex footage processing architecture and is excellent for all broadcast, post workflow, and other professional footage applications.
You can additionally click here.

Feature Highlights — Blackmagic Design Teranex 4 — Product Guide

• Supports up to Full 4K DCI 4096x2160p signals on input and output
• Two independent 12G-SDI outputs
• Run 4096x2160p signals approximately 70 ft using 6G-SDI cables
• Full-size XLR connections switchable between balanced analog and AES/EBU audio
• Ethernet remote control and PoE port
• Intelligent thermal design heat dissipation effectively prevents overheating
• Three units are rack-mountable in a 1U 19" rack using an optional rack tray
• Can be used desktop mounted or installed concealed in cable ducts
• Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
• An array of mini switches allow instant settings changes
• Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
• Manage numerous units simultaneously using the included Converter Utility software
• Full SDI re-clocking and low jitter

 For more information click here.

[caption id="" match="alignnone" width="1000"] Blackmagic Configuration Teranex Mini Converter HDMI to SDI 12G [/caption]
