Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter
In stock
View full details
WhatsApp us for inquiries
Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter — Product Guide
The Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter from Distributes a high-resoution 12G-SDI source to Quad-Link SDI hardware.
Housed in a low-profile enclosure, this Teranex Mini Converter cleanly fits in studio and post-production processes or anywhere with several displays or a footage wall design.
The unit provides one 12G-SDI source, one 12G-SDI loop feed, and four 3G-SDI distribution feeds that support multirate auto-switching between DCI 4K, UHD 4K, HD, and SD inputs and destinations.
The unit additionally accommodates up to 16 channels of broadcast-quality 24-little, 48 kHz audio.
Connecting the device via Ethernet permits you to use the supplied control software to make adjustments to integrate your requirements, as well as power the device via PoE (Power-over-Ethernet).

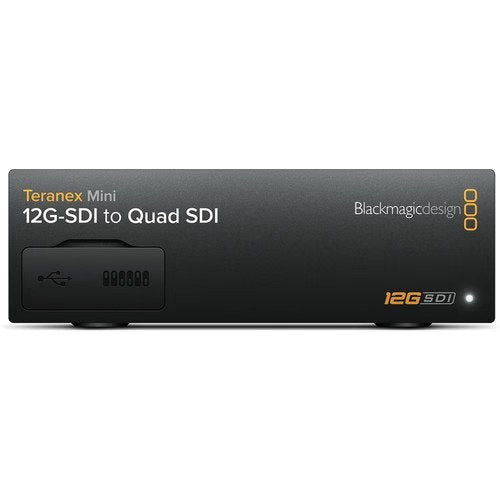

DIP selector settings and a USB configuration port are additionally provided on the front panel.
Click here for more.
OS Compatibility: Guide
macOS 10.14 Mojave, macOS 10.15 Catalina or laterWindows 8.1 and 10
You can additionally find more here.

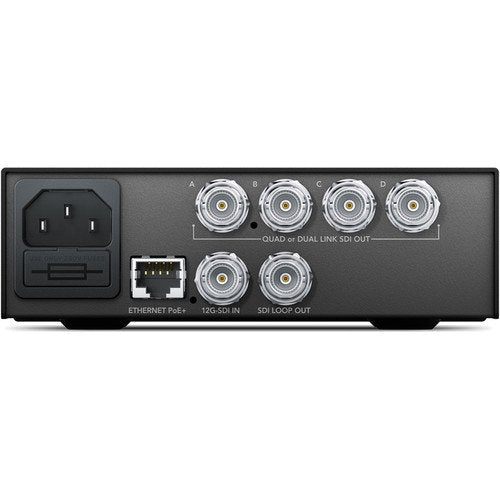

[caption id="" match="alignnone" width="1000"]
Blackmagic Configuration Teranex Mini 12G-SDI to Quad SDI Converter [/caption]
Key Features
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
