Blackmagic Design Teranex AV
Blackmagic Design Teranex AV
In stock
View full details
WhatsApp us for inquiries

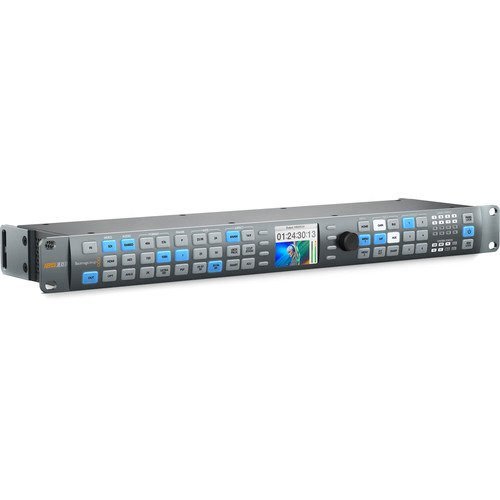

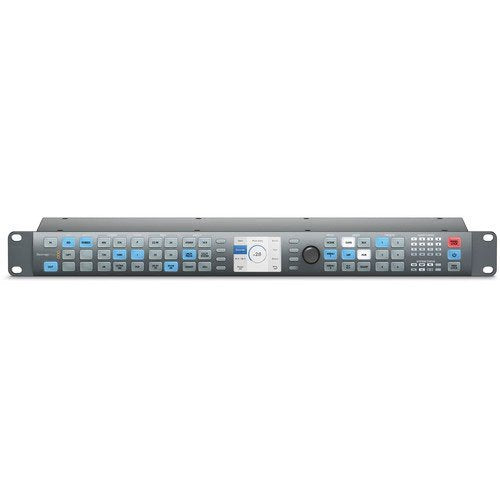

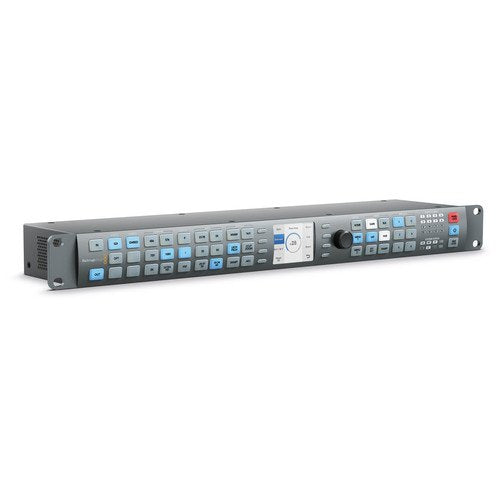

Blackmagic Design Teranex AV — Product Guide
Beginning with its core design, Constructed with professional A/V installations and live productions in mind, the Blackmagic Design Teranex AV by enjoys 1089 up, down, cross, and standards conversions for formats ranging from NTSC and PAL to 2K and UHD 4K footage. Regardless of conversion, all computation is done in real-time with minimal latency of approximately two frames.
A bevy of source and feed options are provided for dealing with professional and consumer inputs.
SDI sources accept SD, HD, 3G, 6G, and 12G-SDI, whereas the HDMI source is v2.0 compliant.
An optional fiber link can be populated by a separately provided SFP cage.
Embedded audio is accepted, as well as analog audio through XLR and RCA stereo sources.
Video feeds incorporate SDI and HDMI as well as four extra SDI feed for quad-link 4K feed or four mirrored feeds.
All conversions can be controlled through the complete front panel keys and menu navigation, or via Ethernet, if part of an installation.
For more information click here.
capabilities
Aspect Ratio signal conversion
Real-time variable and fixed aspect ratio conversions
Real-Time video signal Processing
Incorporates noise reduction, cadence recognition with insertion/removal, scene cut recognition, colour correction, and proc amp control
Format signal conversion
Real-time colour room conversion, up conversion, down conversion, cross conversion and SD/HD/Ultra HD standards conversion
Still Store: Guide
Acquisition a footage shot into non-volatile memory from the current source signal
Freeze Frame: Guide
Temporarilly freeze incoming live footage
Test Patterns: Guide
- SMPTE 75% Bars
- Full-field color bars 75%
- Convergence grid
- Multi-burst
- Black-burst
signal feed Switching
Feed may be switched between the source video, onboard black, operator still shot or a freeze shot from the source footage
In the Box: Guide
- Blackmagic Design Teranex AV
- Limited 1-Year Warranty
Click here for more.
[caption id="" match="alignnone" width="1000"]
Blackmagic Design Teranex AV [/caption]
Key Features
- Dual SD/HD/3G/6G/12G-SDI I/O
- Quad-Link SDI Output
- HDMI 2.0 Input and Output
- Supports SD, HD, 2K, and UHD 4K
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- 24-Bit, 48 kHz Audio
- XLR and RCA Audio Inputs
- Front Panel Controls
- Software Control via RJ45 Ethernet
