SKU: VHUBSMARTE12G4040
Blackmagic Videohub 40x40 12G
Blackmagic Videohub 40x40 12G
In stock
View full details
WhatsApp us for inquiries

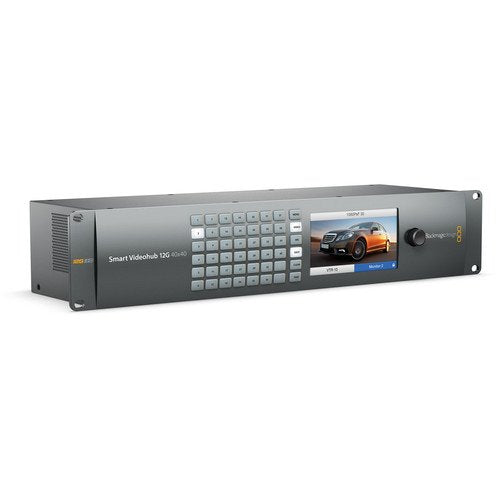

Bl ackmagic Construction Smart Videohub 40 x 40 12 G-SDI
The Blackmagic Design Smart Videohub 40 x 40 12G-SDI from is a mixed configuration router with 40 12G-SDI sources and 40 12G-SDI feeds for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K footage.
It allows 4:2:2 and 4:4:4 colour sampling and 10-bit processing for more fluid gradations.
Housed in a 2RU shot, the Smart Videohub excellent for use in both large broadcast systems or portable mini racks for live workflows.
A built-in LCD lets see your inputs straight on the router itself, with simple push keys and spin knob provided for control.
Routing can additionally be controlled through dedicated off-site panels or over Ethernet through the supplied software for Mac OS X and Windows.
You can even use the provided iPad app to change routing over your cable-free network.
You can additionally click here.
Note: IEC powering cables is not included.
- 40x 6G-SDI inputs / 40x 12G-SDI outputs
- Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
- Built-in SDI reclocking on every SDI input
- Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
- 4:2:2 or 4:4:4 color sampling with 10-bit processing
- UHD 4K (3840 x 2160) up to 60p
- Supports DCI 4K (4096 x 2160) at 60p
- HD Video Resolutions up to 1080p60
- Supports 16 channels of embedded audio on each SDI signal
- Genlock
- Reference input compatible with black burst and tri-sync
- Built-in video monitoring and spin knob control
- Push buttons on front panel
- On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
- Videohub control software included for control over Ethernet
- Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
- Apple iPad control panel app available
- Create your own custom router control with free software developer kit
- Machined aluminum 2RU chassis
- Redundant power supplies
- IEC power cables required
For more information click here.
[caption id="" match="alignnone" width="1000"]
Blackmagic Configuration Smart Videohub 40 x 40 12G-SDI [/caption]Key Features
- Routing Switcher
- 40 x 12G-SDI Inputs / 40 x 12G-SDI Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
