Blackmagic Design MultiView 4 — Product Guide
The Blackmagic Design MultiView 4 by accepts four 10-bit 6G-SDI sources and arranges any mixture of SD, HD, or 4K signals across an Ultra HD television or monitor.
This lets you make advantage of high definition displays to see each source with increased definition.
The MultiView 4 permits 2x2 display with each source fully re-synchronized. Outputs comprise one 6G-SDI multiview and one HDMI multiview, while every 6G-SDI input has a loop-through for forwarding its signal.
The MultiView 4 occupies a machined-aluminum 1 RU enclosure suited to studios, broadcast vehicles, and location setups.
Control is available over Ethernet using the included software, or from an optional Teranex front panel that is sold separately.
Facility integration is supported by an internal 90-240 VAC multi-voltage supply, with 48 VDC PoE+ available as an alternate power method.
You can additionally click here.
Note:
IEC power lead is not supplied.
- Native Ultra HD multi-view output
- 4x 6G-SDI inputs; accepts SD, HD, Ultra HD, and DCI 4K signals
- Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
- 1x 6G-SDI and 1x HDMI multi-view outputs
- 4x SDI loop outputs
- 2x2 multi-view configurations
- 2-channel audio meters for each view
- 16x9 SD support
- Tally support with ATEM switchers via optional Teranex Mini Smart Panel
- 1 RU machined aluminum chassis
- Software control over Ethernet; supports Videohub router protocol
- Built-in 90 to 240 VAC power supply
- IEC power cable required
- Supports PoE+ 48 VDC
Additional information is available here.

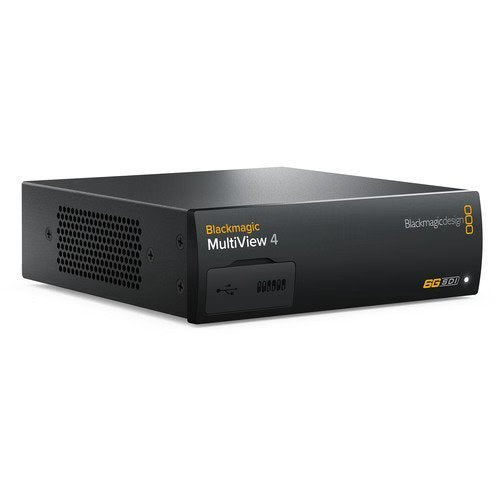

[caption id="" match="alignnone" width="1000"]
Blackmagic Design MultiView 4 [/caption]
Key Features
- 4x 6G-SDI Inputs with Loop Outputs
- 1x SDI & 1x HDMI MultiView Outputs
- Supports SD, HD, UHD 4K, DCI 4K
- Independent Inputs Allow Mixing Formats
- Standard 2x2 Configuration
- Ethernet for Remote Control
- 1 RU Height Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
- Accepts 48 VDC PoE+
