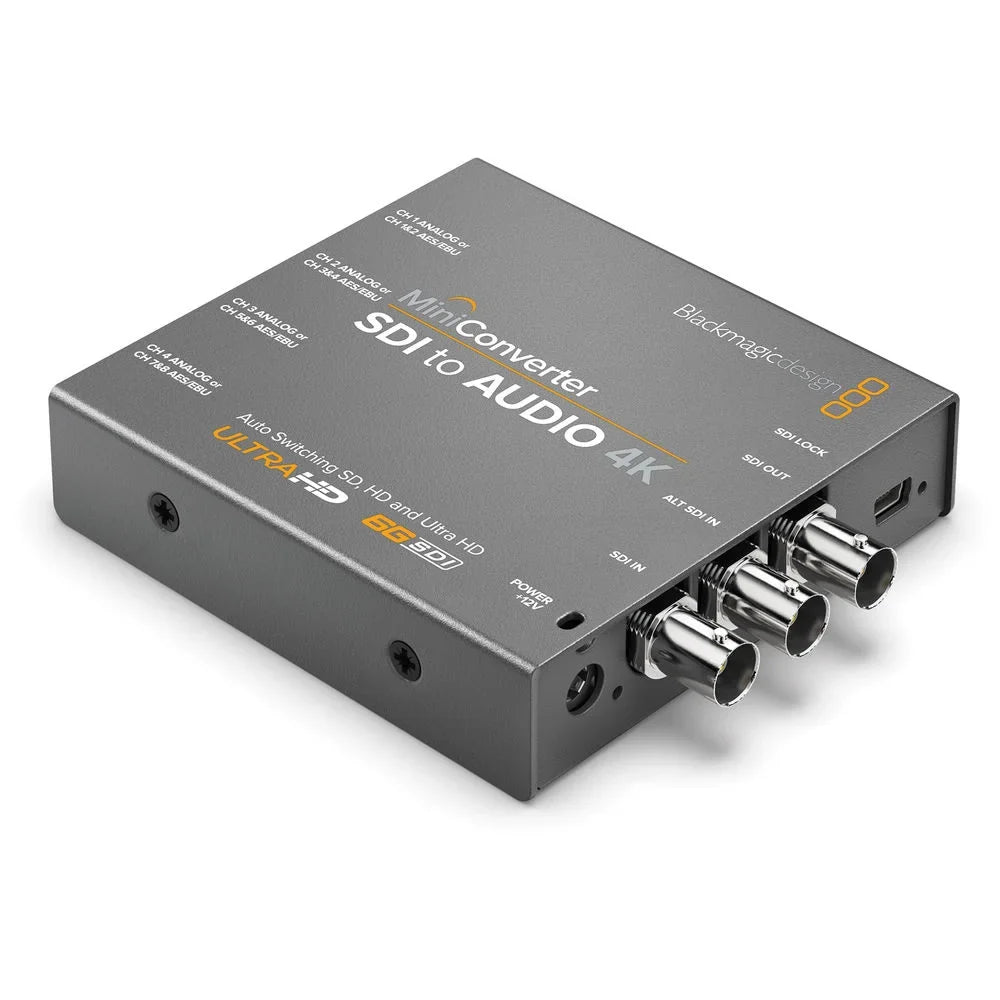

Blackmagic Design Mini Converter SDI to Audio 4K
Blackmagic Design Mini Converter SDI to Audio 4K
In stock
View full details
WhatsApp us for inquiries
Blackmagic Design Mini Converter SDI to sound 4K — Product Guide
The Blackmagic Design Mini Converter SDI to Audio 4K from extracts either four analog audio channels or eight digital AES/EBU channels from any SDI moving imagery signal.

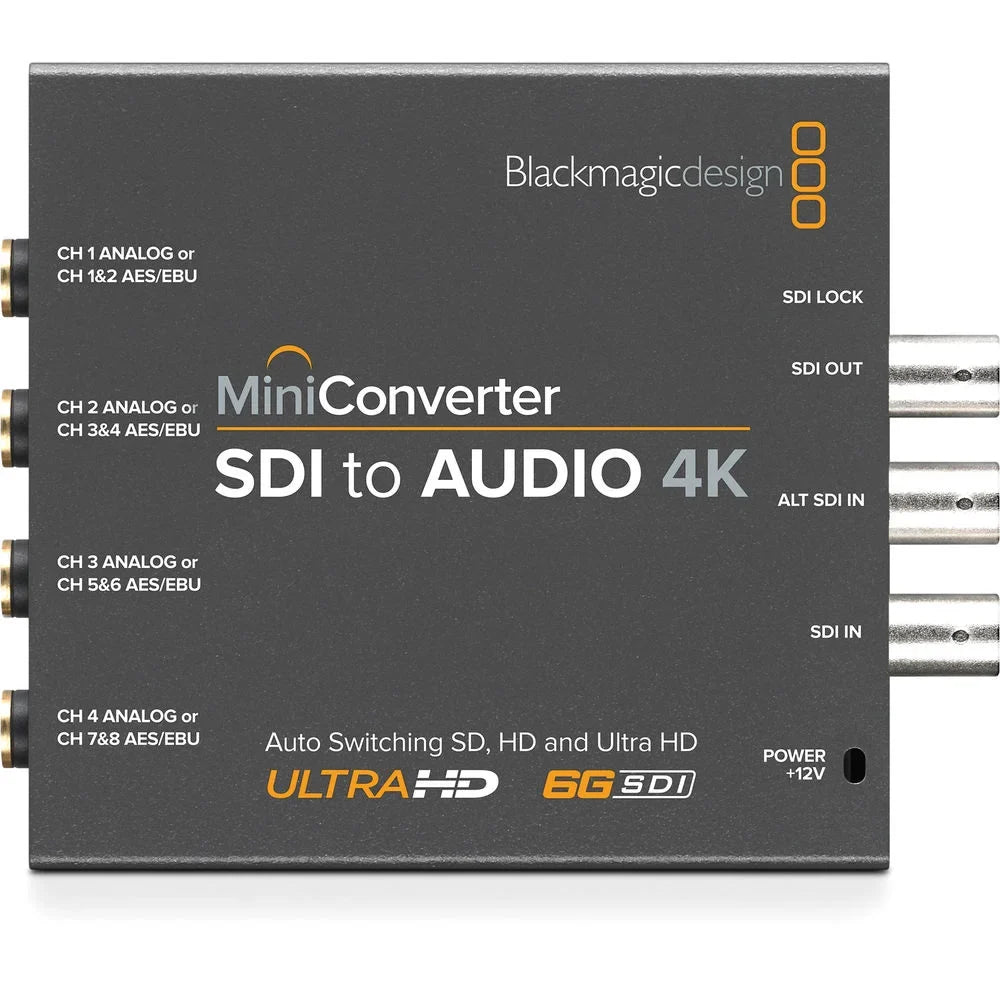

It provides a 6G-SDI source that accepts definitions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and delivers four 1/4" audio jack connectors for outputting the embedded analog or electronic audio channels to an audio display, mixer, or other audio hardware.
The SDI signal is feed over a one 6G-SDI connector, with the definition and shot rate matching that of the existing source source.
Through 6G-SDI technology, the Mini Converter accommodates UHD and DCI 4K definitions at up to 30 fps.
The Mini Converter additionally accommodates One Link SD, HD, and 3G-SDI feeds, automatically detecting and switching between the distinct formats.
A redundant SDI source is provided as an optional rear up; with the converter switching over if the main SDI source is lost.

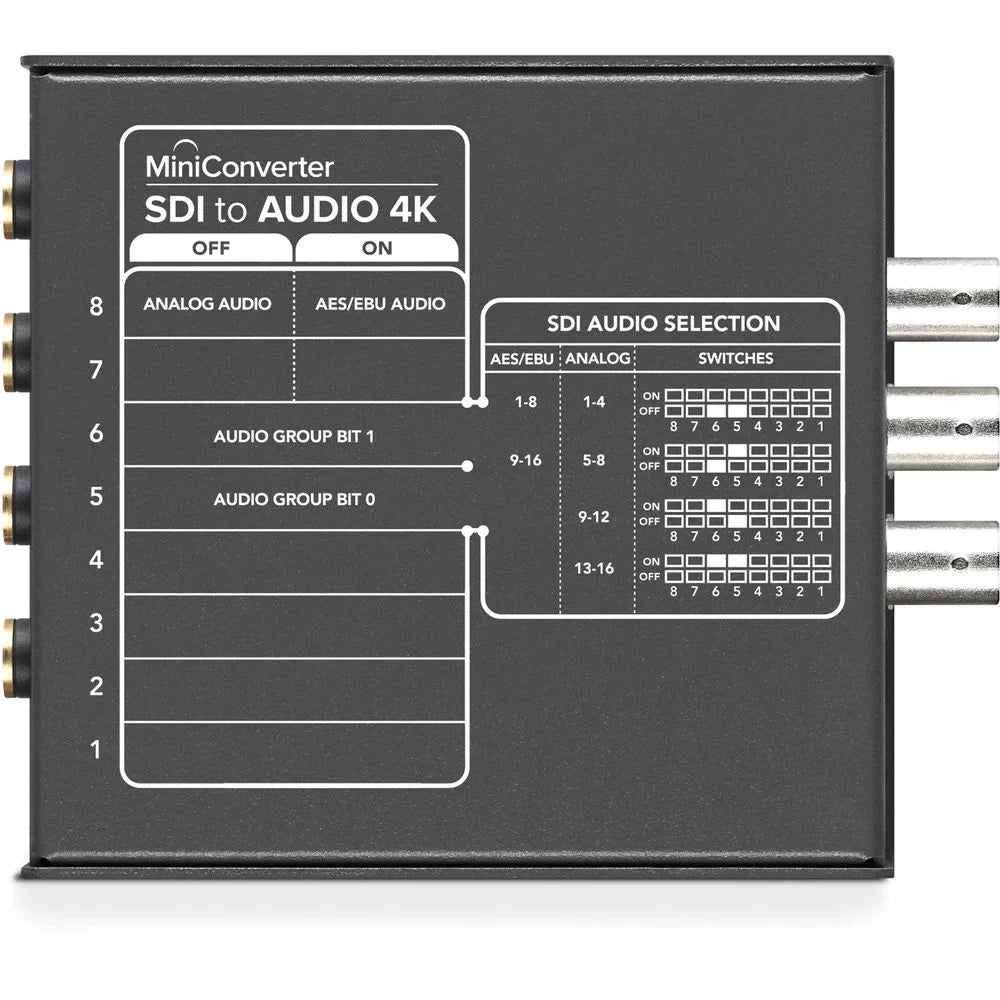

The Mini Converter's settings are controlled through the built-in DIP switches or through USB through the supplied software for Max OS X or Windows computers.
The USB port additionally permits the firmware to be revised. For powering the device, a 12VDC power supply is supplied with international socket adapters.
Find out more here.
Audio Extraction and Ultra HD Signal Support
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
You can additionally click here.
[caption id="" match="alignnone" width="1000"]
Blackmagic Configuration Mini Converter SDI to Audio 4K [/caption]
Key Features
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4" Audio Output Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio
- Control via DIP Switches or Software
- 12V Universal Power Supply Included
