Blackmagic Design Mini Converter Audio to SDI 4K

Name: Blackmagic Design Mini Converter Audio to SDI 4K
Brand: Blackmagic Design
SKU: CONVMCAUDS4K
Price: 1505.00 AED
Availability: InStock

In stock

WhatsApp us for inquiries

View full details

Blackmagic Design Mini Converter sound to SDI 4K

The Blackmagic Design Mini Converter Audio to SDI 4K from embeds either four analog audio channels or eight digital AES/EBU channels into any SDI moving imagery signal.
It incorporates a 6G-SDI source that accepts definitions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and offers four quarter-inch inputs for embedding analog or digital audio channels.
The SDI feed with embedded audio is feed over a one 6G-SDI connector, with the definition and shot rate matching the original source source.
Through 6G-SDI technology, the Mini Converter accommodates UHD and DCI 4K definitions at up to 30 fps.
The Mini Converter additionally accommodates One Link SD, HD, and 3G-SDI feeds, automatically detecting and switching between the distinct formats.
A redundant SDI source is provided as an optional rear up; with the converter switching over if the main SDI source is lost.

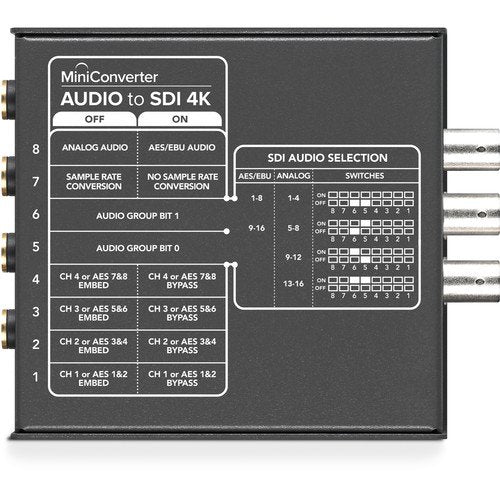

The Mini Converter's settings are controlled through the built-in DIP switches or through USB through the supplied software for Max OS X or Windows computers.
The USB port additionally permits the firmware to be revised. For powering the device, a 12 VDC power supply is supplied with international socket adapters.
Find out more here.

Audio Embedding and 6G-SDI Workflow Details

4:2:2 and 4:4:4 sampling and color precision
24-bit, 48 kHz audio sampling
Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601

You can additionally click here.

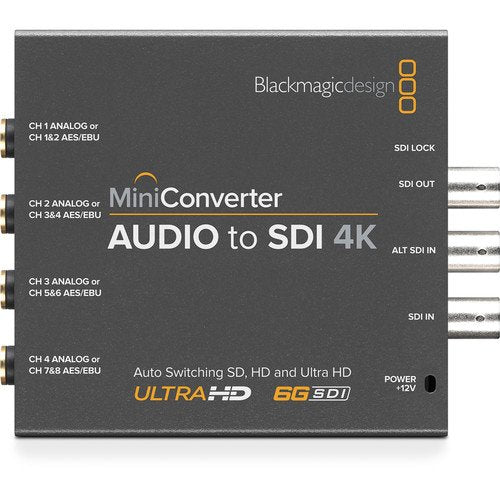

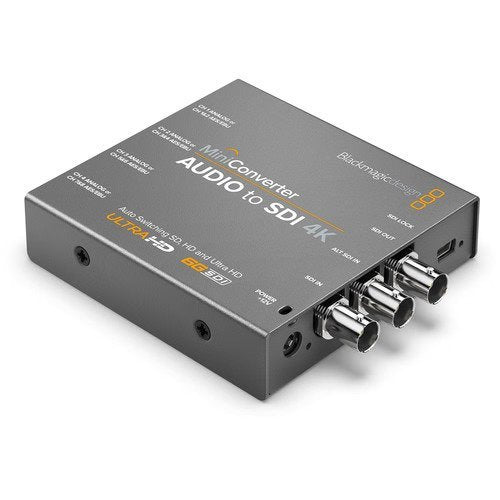

[caption id="" match="alignnone" width="1000"] Blackmagic Design Mini Converter Audio to SDI 4K

Blackmagic Configuration Mini Converter Audio to SDI 4K [/caption]
