SKU: CONVCMIC/SH03G

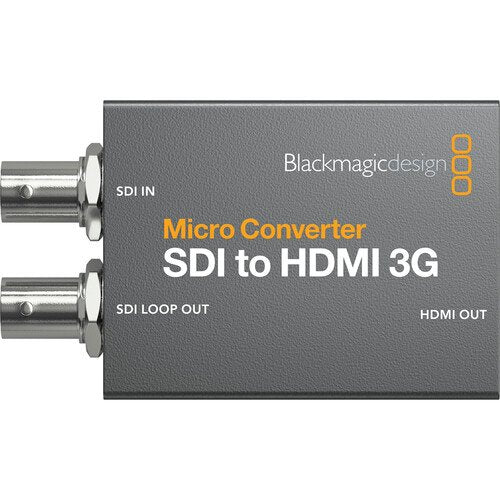

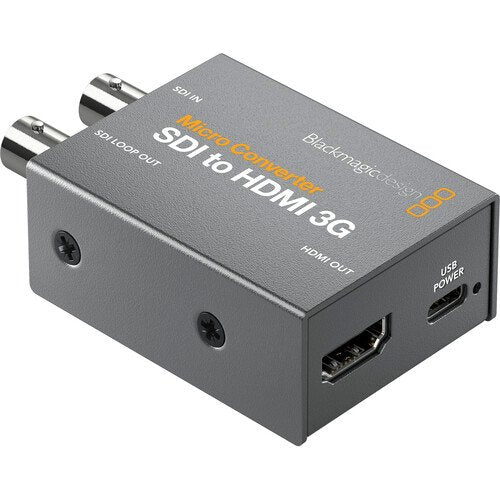

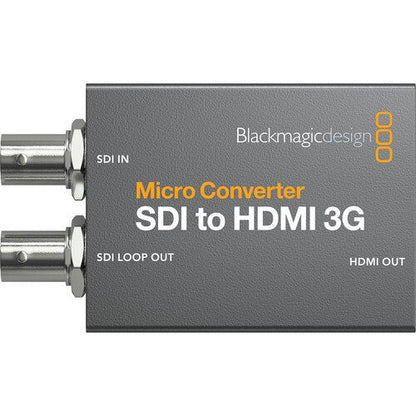

Blackmagic Design Micro Converter SDI to HDMI 3G
Blackmagic Design Micro Converter SDI to HDMI 3G
In stock
View full details
WhatsApp us for inquiries
At the point of image capture, Super space-efficient and durable, the Micro Converter SDI to HDMI 3G from Blackmagic Configuration permits you to use HDMI-input displays and televisions for production observation. This space-efficient converter has one SD/HD/3G-SDI source, one HDMI feed, and one SD/HD/3G-SDI loop feed. It incorporates a 17-position 3D LUT that can be employed to calibrate HDMI- or SDI-input displays and it can feed a LUT for observation via the SDI loop feed. The Micro Converter SDI to HDMI 3G additionally features automated SD, HD, and Level A and B SDI recognition and support for a diverse group of pro broadcast definitions comprising cine-style 48 fps.
This pocket-sized converter integrates a sturdy metal housing with power and feed LED status indicators and durable connector connections. A USB Type-C port permits the SDI to HDMI 3G converter to readily connect to and be energized by big-screen displays, laptops, desktop computers, or projectors. You can additionally power this converter through the separately provided 100-240 VAC power adapter, complete with four international socket adapters.
This pocket-sized converter integrates a sturdy metal housing with power and feed LED status indicators and durable connector connections. A USB Type-C port permits the SDI to HDMI 3G converter to readily connect to and be energized by big-screen displays, laptops, desktop computers, or projectors. You can additionally power this converter through the separately provided 100-240 VAC power adapter, complete with four international socket adapters.
capabilities
HDMI SDI signal feeds&
- One SD/HD/3G-SDI input
- One HDMI output and one SD/HD/3G-SDI loop output
space-saving, Rugged Construction
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
3D LUT compatibility
- Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
- Outputs LUT for monitoring via SDI loop output
Wider Resolution compatibility
- SDI support up to DCI 2Kp60
- HDMI support up to 1080p60
Embedded sound
- Supports embedded HDMI input and embedded SDI output
LED Indicators: Guide
- LED indicators for video and power signals
Versatile powering Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Separately available 100-240 AC power supply with four socket adapters
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8 × 5 × 3 cm |
| In the Box | Blackmagic Design Micro Converter SDI to HDMI 3G |
Key Features
- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
- LED Video & Power Signal Indicators
