SKU: CONVCMIC/SH12G/WPSU

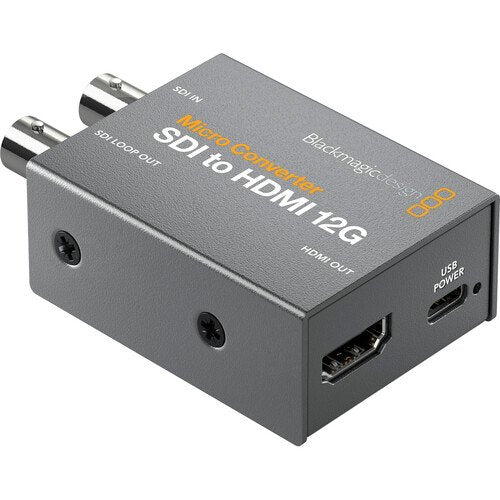

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
In stock
View full details
WhatsApp us for inquiries
For this model, Super space-efficient and durable, the Micro Converter SDI to HDMI 12G from Blackmagic Design permits you to stage SDI bodies or computers to pro-style HDMI displays, projectors, or displays, and it incorporates a 33-position LUT for color calibration. This space-efficient converter has one 12G-SDI source, one 12G-SDI loop feed, and one HDMI feed. It auto-detects and matches your SDI source to the HDMI feed and is compatible with source/feed definitions up to DCI/UHD 4K60.
The pocket-sized Micro Converter SDI to HDMI 12G provides timecode compatibility, SDI re-clocking for support over long lead runs, and support for numerous pro broadcast resolutions comprising cine-style 48 fps. The converter incorporates a sturdy metal housing with power and feed LED status indicators and durable connector connections. The USB Type-C port permits the SDI to HDMI 12G converter to readily connect to and be energized by adapters, displays, laptops, or desktop computers, and it additionally facilitates firmware renewals from a Windows or macOS PC. A power adapter and an international plug interface set is supplied with the converter.
12G-SDI-to-HDMI Monitoring with Included Power
Connections for SDI Input and HDMI Output
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
Travel-Ready Metal Enclosure
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
Clean SDI Signals with Integrated Reclocking
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Monitor SD, HD, and Ultra HD Formats
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio Available through HDMI
- Supports embedded SDI input and embedded HDMI output
LED Feedback for Signal and Power Status
- LED indicators for video and power signals

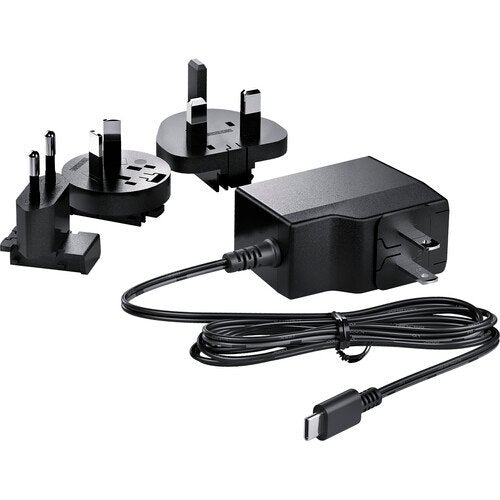

Power through USB-C or the Supplied Adapter
- Power from a monitor, laptop, or other component using the USB Type-C port
- Power supply and international plug set is included
Supported Computer Platforms
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bitKey Features
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
| Weight | 0.4 kg |
|---|---|
| Dimensions | 15 × 11 × 8 cm |
| In the Box | Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply Power Supply International Plug Set |
Key Features
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- LED Video & Power Signal Indicators
